Part Number # NCB50-FP-E2-P4
SKU # 2321380
Image Disclaimers Message
Brand: Pepperl+Fuchs
NCB50-FP-E2-P4

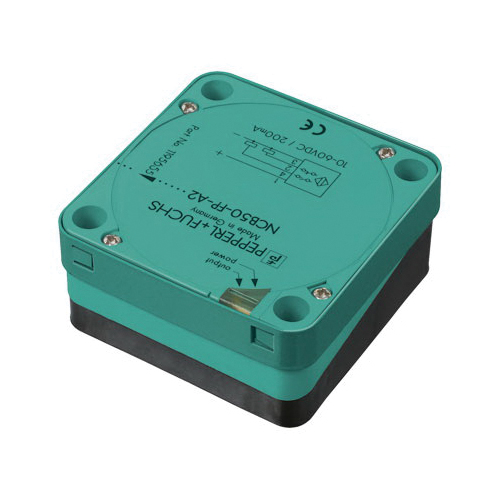

Pepperl+Fuchs NCB50-FP-E2-P4
Part Number # NCB50-FP-E2-P4
SKU # 2321380
$265.58 / Each
Pepperl+Fuchs NCB50-FP-E2-P4 Key Features
| Brand: | Pepperl+Fuchs |
|---|---|
| Part Number # : | NCB50-FP-E2-P4 |
| SKU #: | 2321380 |
| Amperage Rating: | 200, 200 mA |
| Contact Configuration: | NO |
| Sensing Distance: | 50, 50 mm |
| Sensing Method: | Inductive |
| Series: | Comfort |
| Size: | 84 mm L x 84 mm W x 40 mm H |
| Switching Speed: | 80, 80 Hz |
| Temperature Rating (Degrees F): | -13 to 158, -13 to 158 deg F |
| Connection type: | Screw Terminal |
| Material: | PBT |
| Mounting type: | Flush |
| Output type: | PNP |
| Manufacturer Name: | Pepperl+Fuchs |
| UNSPSC: | 39122230 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$265.58 / Each
Quantity:
- Pepperl+Fuchs Proximity Sensor, Series: Comfort, Inductive Sensing Method, 50 mm Sensing Distance, PNP Output, NO Contact Configuration, 10 to 60 V DC, 200 mA, Screw Terminal Connection, 80 Hz Switching Speed, 84 mm L x 84 mm W x 40 mm H Size, -13 to 158 deg F, Flush Mounting, PBT
NCB50-FP-E2-P4 Specifications
- Reverse polarity protection
- Pulsing short-circuit protection
- LED, green operating voltage indicator
- LED, yellow switching state indicator
- 1.2 Nm + 10 % tightening torque
- 2.5 sq-mm cable core cross-section
- PBT sensing face
- IP68 degree of protection
- 3-wire DC output polarity
NCB50-FP-E2-P4 Item Features
- Reverse polarity protection
- Pulsing short-circuit protection
- LED, green operating voltage indicator
- LED, yellow switching state indicator
- 1.2 Nm + 10 % tightening torque
- 2.5 sq-mm cable core cross-section
- PBT sensing face
- IP68 degree of protection
- 3-wire DC output polarity
NCB50-FP-E2-P4 Standards
cULus|cCSAus Listed|CCC CertifiedSKU #2321380Part Number #NCB50-FP-E2-P4UNSPSC39122230UPC
