Part Number # BEL29502
SKU # 2326031
Belden BEL29502 Key Features
| Brand: | Belden |
|---|---|
| Part Number # : | BEL29502 |
| SKU #: | 2326031 |
| Amperage Rating: | 30 A |
| Conductor Size: | 12 AWG |
| Conductor Type: | Stranded Tinned Copper |
| Jacket Material: | PVC |
| Number of Conductors: | 4 |
| Outside Diameter: | 0.63 in |
| Resistance: | 1.6 Ohm |
| Strands: | 65/30 |
| Temperature Rating (Degrees F): | -40 to 90 deg C |
| Type: | Type TC-ER/WTTC |
| Insulation material: | PVC/XLPE |
| Manufacturer Name: | Omni Cable |
| UNSPSC: | 26121603 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Belden BEL29502
Brand: Belden
Part Number: BEL29502
Additional Description: OMNI-BEL29502 (M) 12/4C TC XLPE/PVC VFD
BEL29502 Application
AC Motor Drives and VFD CableBEL29502 Item Features
- Overall Duofoil (100% coverage) plus a tinned copper braid shield (85% coverage)
- Tinned copper drain wire, sun and oil-resistant jacket
- 336 lb maximum recommended pulling tension
- 5 in minimum bend radius/minor axis
- Suitable for indoor, outdoor and burial
- (3) stranded tinned copper circuit conductors plus (1) ground wire with PVC insulation
- Sunlight and oil-resistant
- 26 pF/ft nominal capacitance conductor to conductor
- 47 pF/ft nominal capacitance conductor to other conductor and shield
- 1.6 Ohm/1000 ft DC resistance at 20 deg C, 300 MOhm/1000 ft insulation resistance
- https://www.youtube.com/watch?v=j1a0CNx6Rgs
BEL29502 Standards
NEC Article 336 - ER|EU Directive 2011/65/EU (ROHS II) Compliant|EU CE Marked|EU Directive 2000/53/EC (ELV)|EU Directive 2002/95/EC (RoHS) Compliant|EU Directive 2002/96/EC (WEEE)|EU Directive 2003/11/EC (BFR)|CA Prop 65 (CJ for Wire and Cable)|MII Order #39 (China RoHS) Compliant|PMSHA P-07-KA070003 Certified NEC Article 336 - ER|EU Directive 2011/65/EU (ROHS II) Compliant|EU CE Marked|EU Directive 2000/53/EC (ELV)|EU Directive 2002/95/EC (RoHS) Compliant|EU Directive 2002/96/EC (WEEE)|EU Directive 2003/11/EC (BFR)|CA Prop 65 (CJ for Wire and Cable)|MII Order #39 (China RoHS) Compliant|PMSHA P-07-KA070003 CertifiedSKU #2326031Part Number #BEL29502UNSPSC26121603UPC

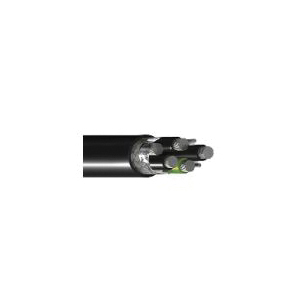

Image provided may only be a representation of final product and may include optional equipment
