Part Number # B90510316SS
SKU # 2327870
B90510316SS
Thomas & Betts B90510316SS
Part Number # B90510316SS
SKU # 2327870
$93349.68 / 600Each
Typical price:$125088.60 / Each
Thomas & Betts B90510316SS Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | B90510316SS |
| SKU #: | 2327870 |
| Series: | B Series |
| Slot Size: | 9/16, 9/16 in |
| Slot Spacing: | 1-1/2, 1-1/2 in |
| Thickness: | 12, 12 ga |
| Type: | Punched |
| Depth: | 1-1/2, 1-1/2 in |
| Length: | 10, 10 ft |
| Material: | 316 Stainless Steel |
| Width: | 1-1/2, 1-1/2 in |
| Manufacturer Name: | ABB |
| UNSPSC: | 30101805 |
| UPC: | 00785991046366 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$93349.68 / 600Each
Typical price:$125088.60 / Each
Quantity:
Thomas & Betts B90510316SS
Brand: Thomas & Betts
Part Number: B90510316SS
Additional Description: TB -B90510316SS (N) PUNCHED CHNL 12GA 1.5X1.5 10FT 316S NON-CANCELABLE, NON-RETURNABLE

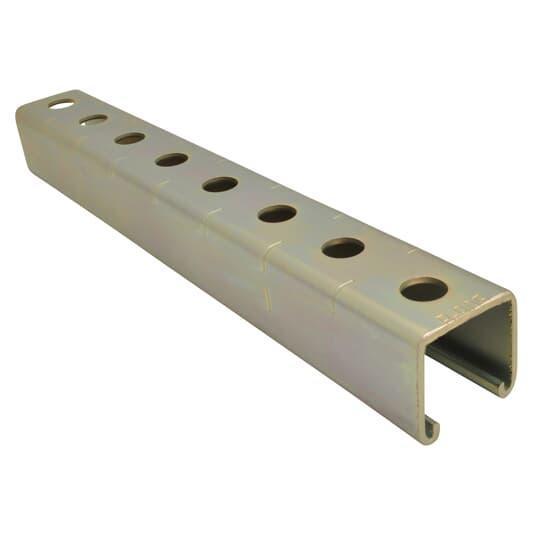

Catalog Description: Channel, 12 Gauge, 1-1/2 Inch x 1-1/2 Inch, Length 10 Feet, Type 316 Stainless Steel with Punched 9/16 Inch Holes on 1-1/2 Inch Centers
B90510316SS Application
For mount, brace, support or connect structural loads in building construction such as pipe, electrical and data wireB90510316SS Item Features
- Designed so that the maximum number of support and framing applications can be constructed with a minimum amount of labor and pieces
- The 1-1/2 in dimension in the channel, hole spacing and fittings means all parts fit together, no matter where they are used or at what angle
- The modular dimension provides maximum flexibility in field applications and results in saving inventory and labor dollars
- Even though Kindorf channel is slightly smaller in dimensions it supports the same weight as 1-5/8 in channel
- The Kindorf system is designed so that most accessories are compatible with 1-5/8 in strut
- 98% of 1-5/8 in accessories are interchangeable in Kindorf channel
- 3/4 in bolt hole from end
SKU #2327870Part Number #B90510316SSUNSPSC30101805UPC00785991046366
Image provided may only be a representation of final product and may include optional equipment
