Part Number # 2002-1611/1000-542
SKU # 2328600
Image Disclaimers Message
2002-1611/1000-542
Wago 2002-1611/1000-542
Part Number # 2002-1611/1000-542
SKU # 2328600
Wago 2002-1611/1000-542 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2002-1611/1000-542 |
| SKU #: | 2328600 |
| Series: | 2002 |
| Suitable For Use With: | Terminal Block |
| Type: | 2-Conductor |
| Actuation type: | Push-in || Operating tool |
| Approvals per: | UL 1059 |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 66.1 mm / 2.602 inch |
| Height: | 2.6 in |
| Insulation material: | Polyamide (PA66) |
| Length: | 2.25 in |
| Material: | Polyamide |
| Mounting type: | DIN-35 rail |
| Nominal cross-section: | 2.5 mm² |
| Rated current: | 6.3 A |
| Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
| Total number of connection points: | 2 |
| Weight: | 13.542 g |
| Width: | 0.24 in, 6.2 mm / 0.244 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143870467 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Wago 2002-1611/1000-542
Brand: Wago
Part Number: 2002-1611/1000-542

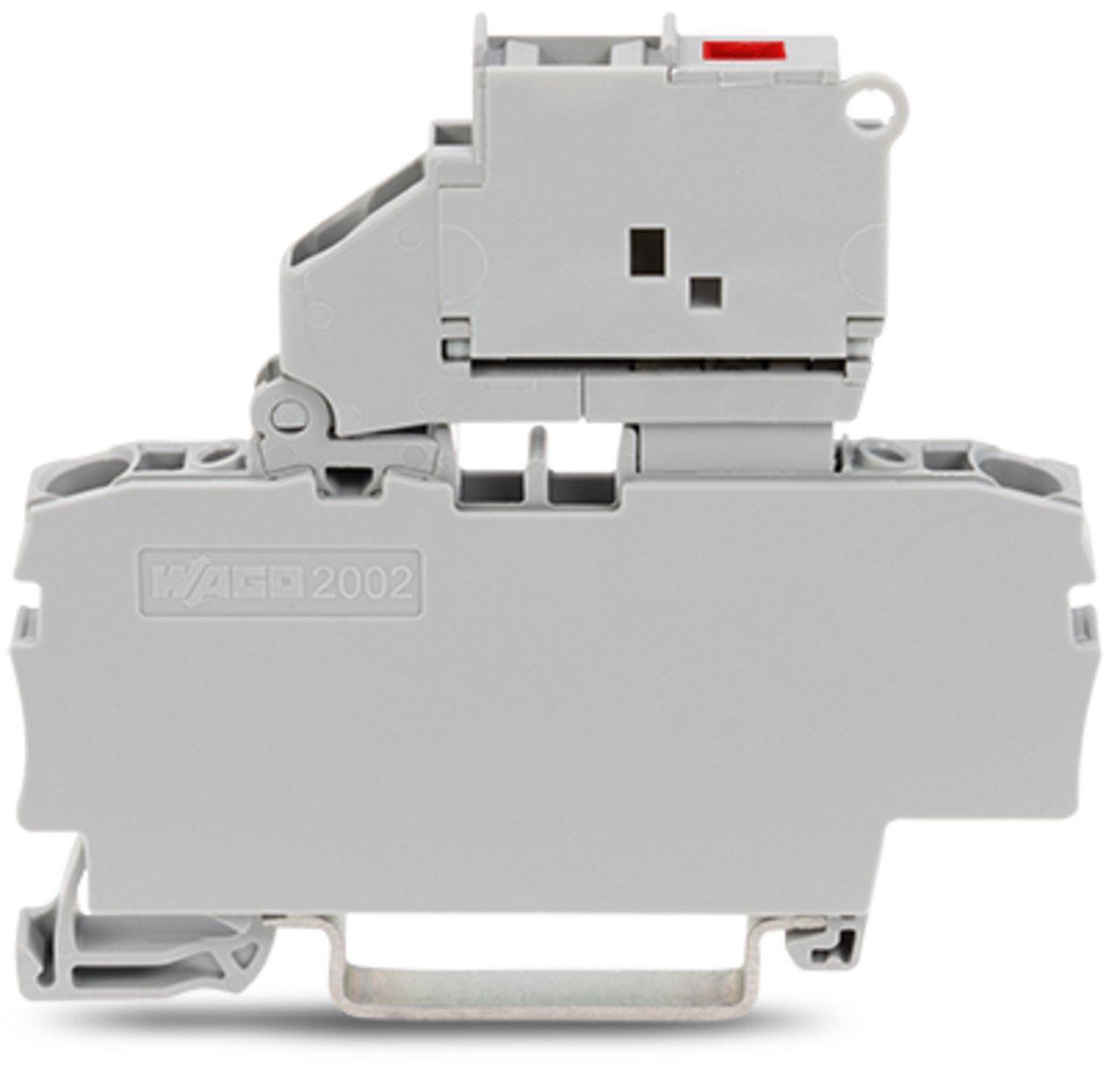

Additional Description: WAGO-2002-1611/1000-542 2-CONDUCTOR FUSE TERMINAL BLOCK; WITH PIVOTING FUSE HOLDER; WITH END PLATE; FOR 5 X 20 MM MINIATURE METRIC FUSE; WITH BLOWN FUSE INDICATION BY LED; 30 - 65 V; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM ; PUSH-IN CAGE CLAMP ; 2,50 MM ; GRAY 51207553
Catalog Description: 2-conductor fuse terminal block; with pivoting fuse holder; with end plate; for 5 x 20 mm miniature metric fuse; with blown fuse indication by LED; 30 - 65 V; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray
2002-1611/1000-542 Standards
EN 60947|EN 60947|UL 60079|EN 60079|CNCA-C23-01|RoHS CompliantSKU #2328600Part Number #2002-1611/1000-542UNSPSC39121410UPC04055143870467
