Part Number # G9SXNS202RTDC24
SKU # 2330292
Image Disclaimers Message
G9SXNS202RTDC24

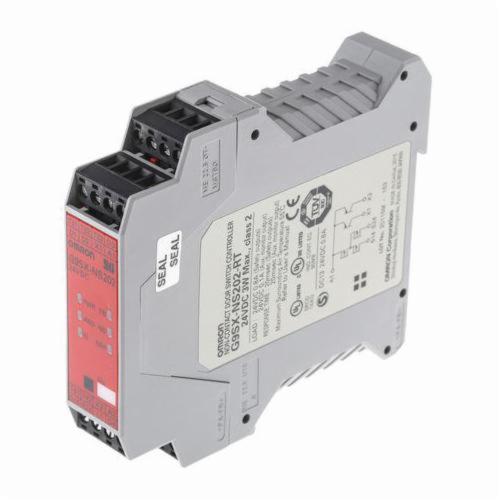

Omron G9SXNS202RTDC24
Part Number # G9SXNS202RTDC24
SKU # 2330292
$458.00 / Each
Omron G9SXNS202RTDC24 Key Features
| Brand: | Omron |
|---|---|
| Part Number # : | G9SXNS202RTDC24 |
| SKU #: | 2330292 |
| Coil Voltage: | 24 V DC, 24 VDC |
| Dimensions: | 115 mm L x 100 mm W x 23 mm H |
| Display Type: | LED |
| Enclosure Type: | IP67 |
| Series: | G9SX |
| Temperature Rating (Degrees F): | -10 to 55 deg C |
| Terminal Type: | Screw |
| Type: | Door Switch Non-Contact |
| Mounting type: | DIN Rail |
| Manufacturer Name: | OMRON Corporation |
| UNSPSC: | 32151803 |
| UPC: | 04547648837156 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$458.00 / Each
Quantity:
- OMRON Safety Control Relay, Door Switch Non-Contact, Series: G9SX, 0.6 W Power, 24 V DC Coil, DIN Rail Mounting, Screw Terminal, LED Display, IP67 Enclosure, -10 to 55 deg C, 115 mm L x 100 mm W x 23 mm H Dimensions
G9SXNS202RTDC24 Application
For electronic monitoring and control of non-contact door switches for enhanced stability in operationG9SXNS202RTDC24 Item Features
- Easy-to-see 2-Color indicators
- Mount from whichever side provides the easiest wiring path to enable mounting to all types of doors
- An actuator that is smaller than the switch saves space, even inside the door, even when mounted with an L-bracket, the actuators height will not hinder installation or operation
- Wiring time can be reduced with the connector, cable lengths can be selected, and only cables of required lengths can be purchased
- Switches can be integrated into a single switch with a connector when installing in a machine with multiple doors or various types of machines, which can reduce inventory
- The indicators show the location and cause of wiring errors and any other errors that are detected, auxiliary outputs for errors also contribute to reducing down time
- Inputs can be accepted from both D40A switches and mechanical switches to reduce the number of controllers and costs
- Easy expansion of output points by an expansion unit
- Improved maintainability by LED display
- No special programming required
- NS controller
- 50 MOhm max (at 500 VDC insulation resistance
- 1000 VAC for 1 min dielectric strength
- PBT resin material
- 3 W max rated power consumption
G9SXNS202RTDC24 Standards
CE Certified|CSA Certified|cULus Listed|SUD|TUV|UL ListedSKU #2330292Part Number #G9SXNS202RTDC24UNSPSC32151803UPC04547648837156
