Part Number # A33/003
SKU # 2332067
Image Disclaimers Message
Brand: Belden
A33/003

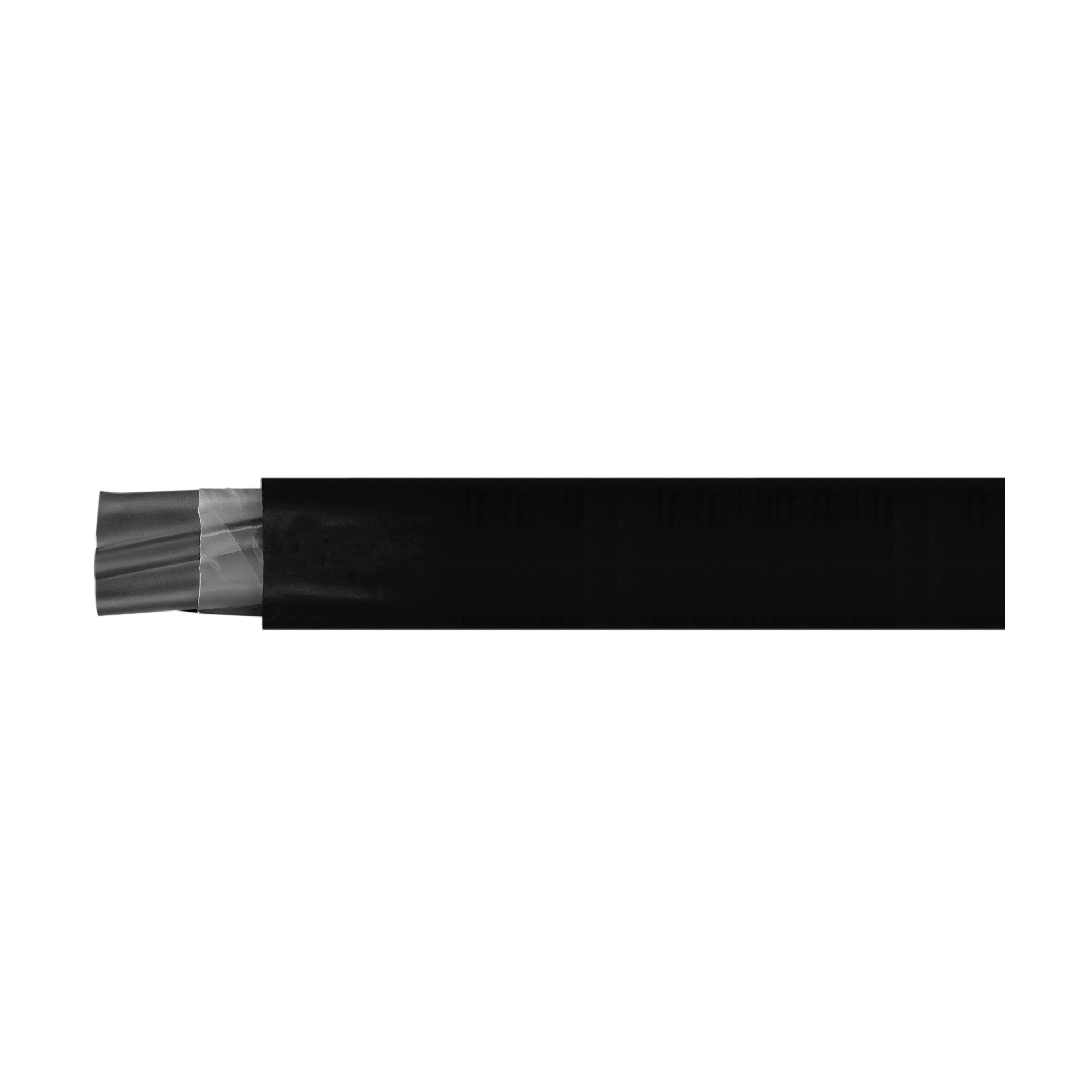

Belden A33/003
Part Number # A33/003
SKU # 2332067
$31.00 / Feet
Belden A33/003 Key Features
| Brand: | Belden |
|---|---|
| Part Number # : | A33/003 |
| SKU #: | 2332067 |
| Conductor Size: | 3/0 AWG |
| Conductor Type: | Annealed Bare Stranded Copper |
| Jacket Color: | Black |
| Jacket Material: | PVC |
| Number of Conductors: | 3 |
| Outside Diameter: | 1.41 in |
| Strands: | 37 |
| Temperature Rating (Degrees F): | 90 deg C |
| Type: | Type TC-ER Unshielded |
| Insulation material: | PVC/Nylon |
| Manufacturer Name: | Omni Cable |
| UNSPSC: | 26121620 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$31.00 / Feet
Quantity:
Belden A33/003
Brand: Belden
Part Number: A33/003
Additional Description: OMNI-A33/003 3/0-3C VNTC 90C M4 600V TC-ER ONE-4AWG BARE GRND
A33/003 Application
For use in free air, raceways, direct burial and wet or dry locationsA33/003 Item Features
- Bare annealed copper per ASTM B3, class B stranding per ASTM B8 conductor
- Flame-retardant polyvinyl chloride (PVC) with clear polyamide (nylon) insulation
- Uninsulated bare annealed copper per ASTM B3, class B stranding per ASTM B8 ground conductor
- Flame-retardant, sunlight-resistant polyvinyl chloride (PVC) jacket
- Black, printed number insulation
A33/003 Standards
UL 83 NEC Type THHN/THWN Conductors|1581|1277 Type TC-ER Listed|IEEE 1202|Class 1|Division 2 NEC Certified|RoHS CompliantSKU #2332067Part Number #A33/003UNSPSC26121620UPC
