Weidmuller 1750800000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1750800000 |
| SKU #: | 2343616 |
| Connector Size: | 0.5 sq-mm |
| Connector Type: | Female Plug/Header |
| Dimensions: | 12.5 mm H x 10.5 mm W x 21.2 mm D |
| Number of Positions: | 3 |
| Series: | BL/SL 3.50 Series |
| Temperature Rating (Degrees F): | -50 to 80 deg C |
| Type: | Wire Connection |
| Wire Size: | 22 to 20 AWG |
| Contact material: | CuSn |
| Country of origin: | CZ |
| Housing material: | PBT |
| Insulation resistance: | >/=10^8 Ohm |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121462 |
| UPC: | 04032248146093 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
- Weidmuller OMNIMATE Signal PCB Plug-In Connector, Wire Connection, Series: BL/SL 3.50 Series, 3 Positions, 1 Row, 3.5 mm Pitch/Row Spacing, 22 to 20 AWG Wire, 300/320 V, Female Plug/Header Connector, 0.5 sq-mm Connector, CuSn Contact, >/=10^8 Ohm Insulation Resistance, PBT Housing Material, -50 to 80 deg C, Orange, 12.5 mm H x 10.5 mm W x 21.2 mm D Dimensions
1750800000 Item Features
- Female connectors for fast processing with insulation displacement connectors (IDC) for connecting wires at 3.5 mm pitch
- They provide space for labeling and can be coded
- 320 V IEC, 300 V UL
- https://youtu.be/Ifq_mdNjF4g
1750800000 Standards
RoHS Compliant|IEC Certified|CSA Certified|UL 1059|DIN 5264|EAC Certified|UL File No. E60693 Recognized|ETIM 6.0 EC002638|ETIM 7.0 EC002638|eClass 9.0 27-44-03-09|eClass 9.1 27-44-03-09|eClass 10.0 27-44-03-09|UL 94 V-0 Flammability RatingSKU #2343616Part Number #1750800000UNSPSC39121462UPC04032248146093

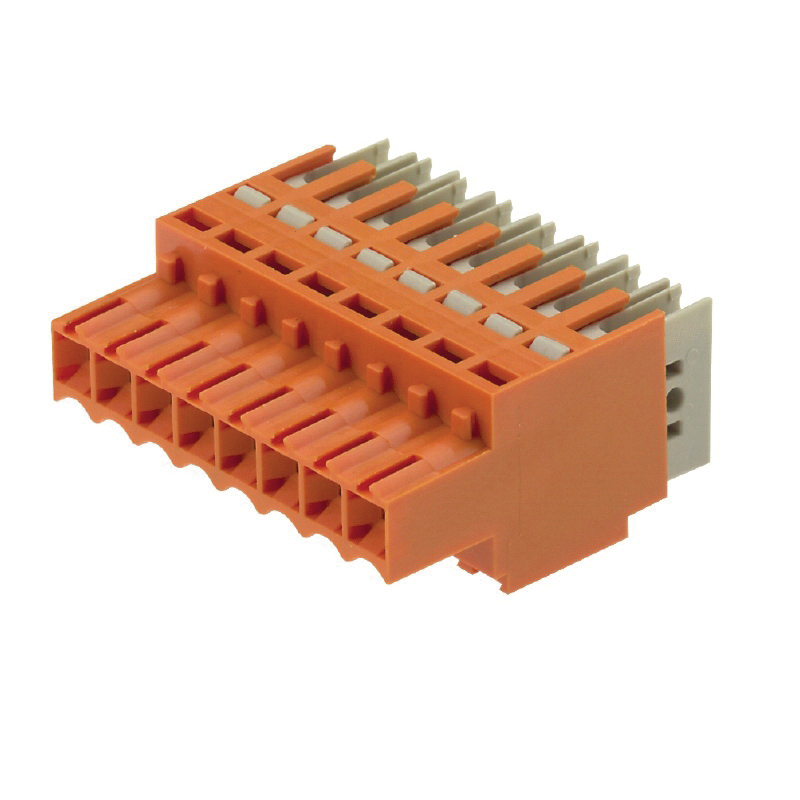

Image provided may only be a representation of final product and may include optional equipment
