Part Number # MVU14-6R/SX
SKU # 2349955
Image Disclaimers Message
MVU14-6R/SX
3M MVU14-6R/SX
Part Number # MVU14-6R/SX
SKU # 2349955
$32.00 / 100Each
Typical price:$40.20 / Each
3M MVU14-6R/SX Key Features
| Brand: | 3M |
|---|---|
| Part Number # : | MVU14-6R/SX |
| SKU #: | 2349955 |
| Temperature Rating (Degrees F): | -40 to 221, -40 to 221 deg F |
| Tongue Size: | 0.25 in W x 0.03 in THK |
| Tongue Type: | Ring |
| Type: | Insulated Standard |
| Color: | Blue |
| Length: | 0.8, 0.8 in |
| Material: | Vinyl |
| Barrel Size: | 0.07 in ID x 0.25 in L |
| Barrel Type: | Butted Seam |
| Conductor Size: | 16 to 14, 16 to 14 AWG |
| Country of origin: | US |
| Finish: | Tin Plated |
| Manufacturer Name: | 3M |
| Specifications: | 0.145 in Dia Max Insulation, 0.22 in Clearance |
| UNSPSC: | 31200000 |
| UPC: | 00051128588185 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$32.00 / 100Each
Typical price:$40.20 / Each
Quantity:
3M MVU14-6R/SX
Brand: 3M
Part Number: MVU14-6R/SX
Additional Description: 3M -MVU14-6R/SX 3M SCOTCHLOK VINYL INSULATED BUTTED SEAM RING TONGUES 7010398190

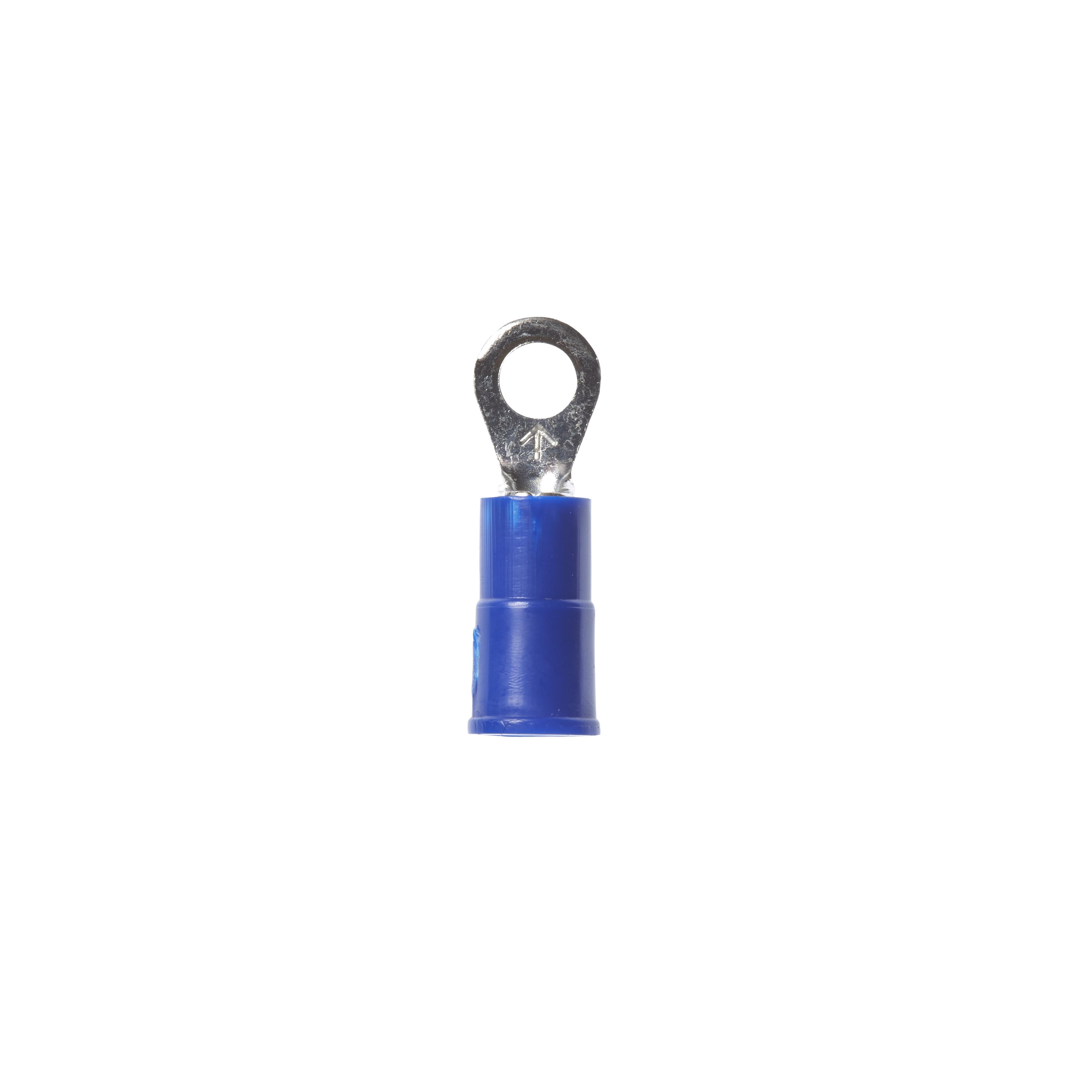

Catalog Description: 3M™ Scotchlok™ Color-Coded Small Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
MVU14-6R/SX Application
Building Fixtures or Luminaires, Signs and Wire ApplicationsMVU14-6R/SX Item Features
- Made of electrolytic copper for good conductivity and has tin plating for corrosion-resistance
- Crimp termination
- Free hanging (in-line) mounting
- Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- Standard-style ring tongue fits around the stud
- Withstands a temperature range of -40 to 221 deg f (-40 to 105 deg c)
MVU14-6R/SX Standards
Compliant|UL File No. E23438|CSA File No. LR22190SKU #2349955Part Number #MVU14-6R/SXUNSPSC31200000UPC00051128588185
