Part Number # 770-113
SKU # 2361576
Image Disclaimers Message
Brand: Wago
770-113
Wago 770-113
Part Number # 770-113
SKU # 2361576
$4.93 / Each
Typical price:$5.34 / Each
Wago 770-113 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 770-113 |
| SKU #: | 2361576 |
| Connector Type: | Plug |

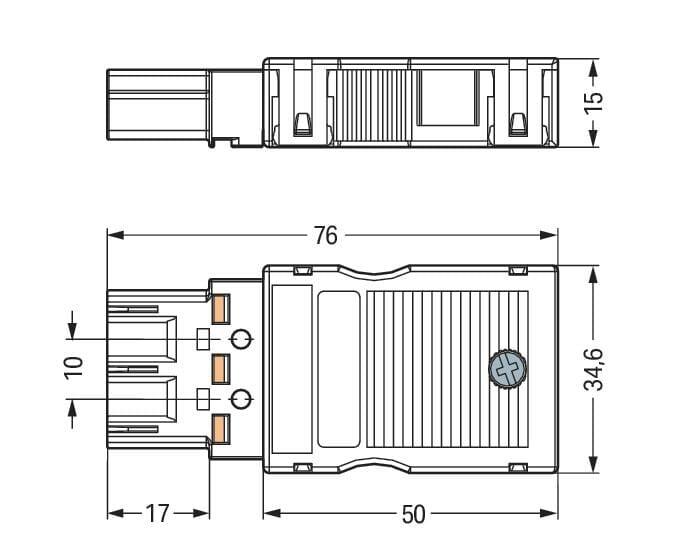

| Dimensions: | 0.59 in H x 1.36 in W x 2.99 in D |
| Number of Positions: | 3 |
| Specifications: | -35 to 85 degree C Continuous Operating Temperature |
| Suitable For Use With: | General Mains Application |
| Type: | Operating Tool |
| Actuation type: | Operating tool || Push-in |
| Application: | General mains applications |
| Coding: | A |
| Conductor entry direction to mating direction: | 0 ° |
| Connection technology: | Push-in CAGE CLAMP® |
| Connector (connection type): | For conductor |
| Contact material: | Copper or copper alloy (surface-treated) |
| Country of origin: | DE |
| Depth: | 75.9 mm / 2.988 inch |
| Height: | 15 mm / 0.591 inch |
| Insulation material: | Polyamide (PA66) |
| Marking: | L ⏚ N |
| Material: | Polyamide (PA66) |
| Nominal cross-section: | 4 mm² |
| Potential marking: | L ⏚ N |
| Protection type: | IP20 |
| Rated current: | 25 A |
| Solid conductor: | 0.5 … 4 mm² / 20 … 12 AWG |
| Strain relief: | Strain relief housing |
| Stranded conductor: | 0.5 … 2.5 mm² / 20 … 14 AWG |
| Total number of connection points: | 6 |
| Weight: | 20.013 g |
| Width: | 34.6 mm / 1.362 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04044918254083 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4.93 / Each
Typical price:$5.34 / Each
Quantity:
Wago 770-113
Brand: Wago
Part Number: 770-113

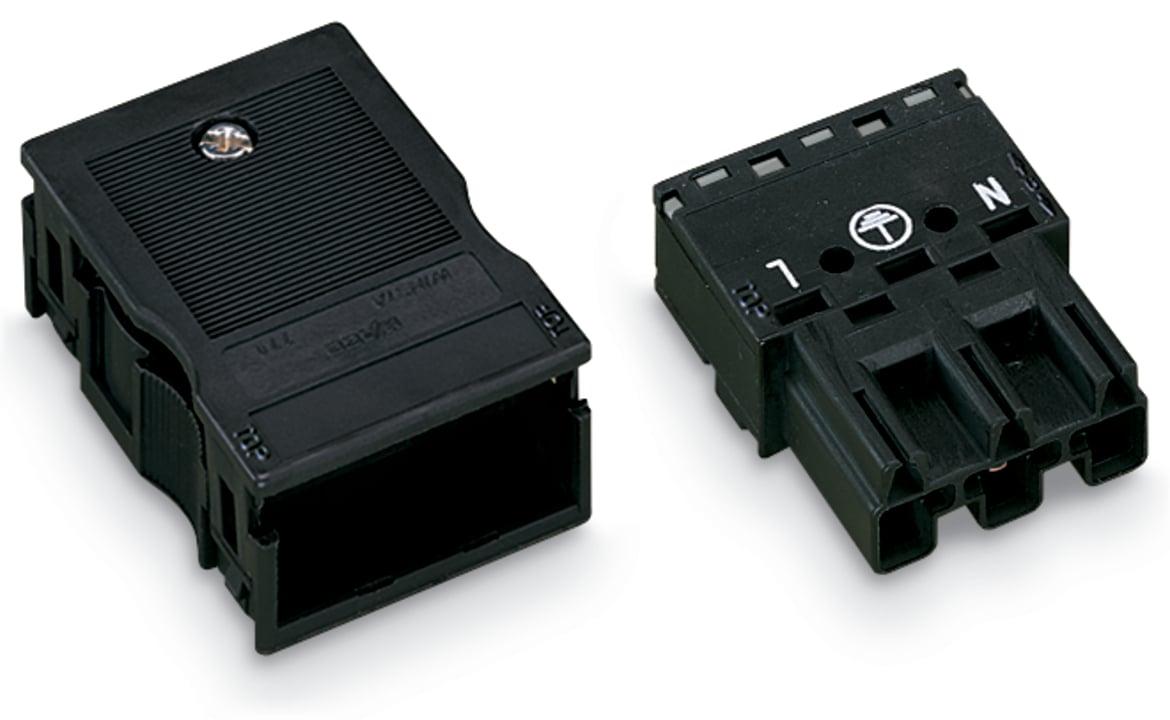

Additional Description: WAGO-770-113 PLUG WITH STRAIN RELIEF HOUSING; 3-POLE; BLACK 51110402
770-113 Application
For General mains applications770-113 Item Features
- Protection against mismating eliminates errors
- Pre-assembled versions
- Flexible installation to save space
- Convenient installation and commissioning
770-113 Standards
IEC/EN 60664-1|RoHS CompliantSKU #2361576Part Number #770-113UNSPSC39121421UPC04044918254083
