Brand: 3M
80-6114-7245-9
3M 80-6114-7245-9
Part Number # 80-6114-7245-9
SKU # 2365300
$43.34 / 12Each
Typical price:$55.08 / Each
3M 80-6114-7245-9 Key Features
Brand: 3M
Part Number # 80-6114-7245-9
SKU #2365300
Series: FP-301
Shrink Ratio: 2:1
Shrink Temperature: 212, 212 deg F
Temperature Rating (Degrees F): -67 to 275, -67 to 275 deg F
Type: Corrosion-Resistant Flame-Retardant Flexible General Purpose, Flexible
Voltage Rating: 600, 600 VAC
Wall Thickness Recovered: 0.025, 0.025 in
Color: Black
Country of origin: US
Length: 48, 48 in
Material: Polyolefin
Manufacturer Name: 3M
UNSPSC: 31201500
UPC: 00051128595848
$43.34 / 12Each
Typical price:$55.08 / Each
SKU # 2365300
Part Number # 80-6114-7245-9
3M 80-6114-7245-9
Brand: 3M
Part Number: 80-6114-7245-9
Additional Description: 3M -80-6114-7245-9 (I) FP 3/8 BK 48 12/BX 3000375BK (I) 1BX =12 EA 7100007365 3/8"X48" HEAT SHRINK THIN WALL 1BX = 12PCS

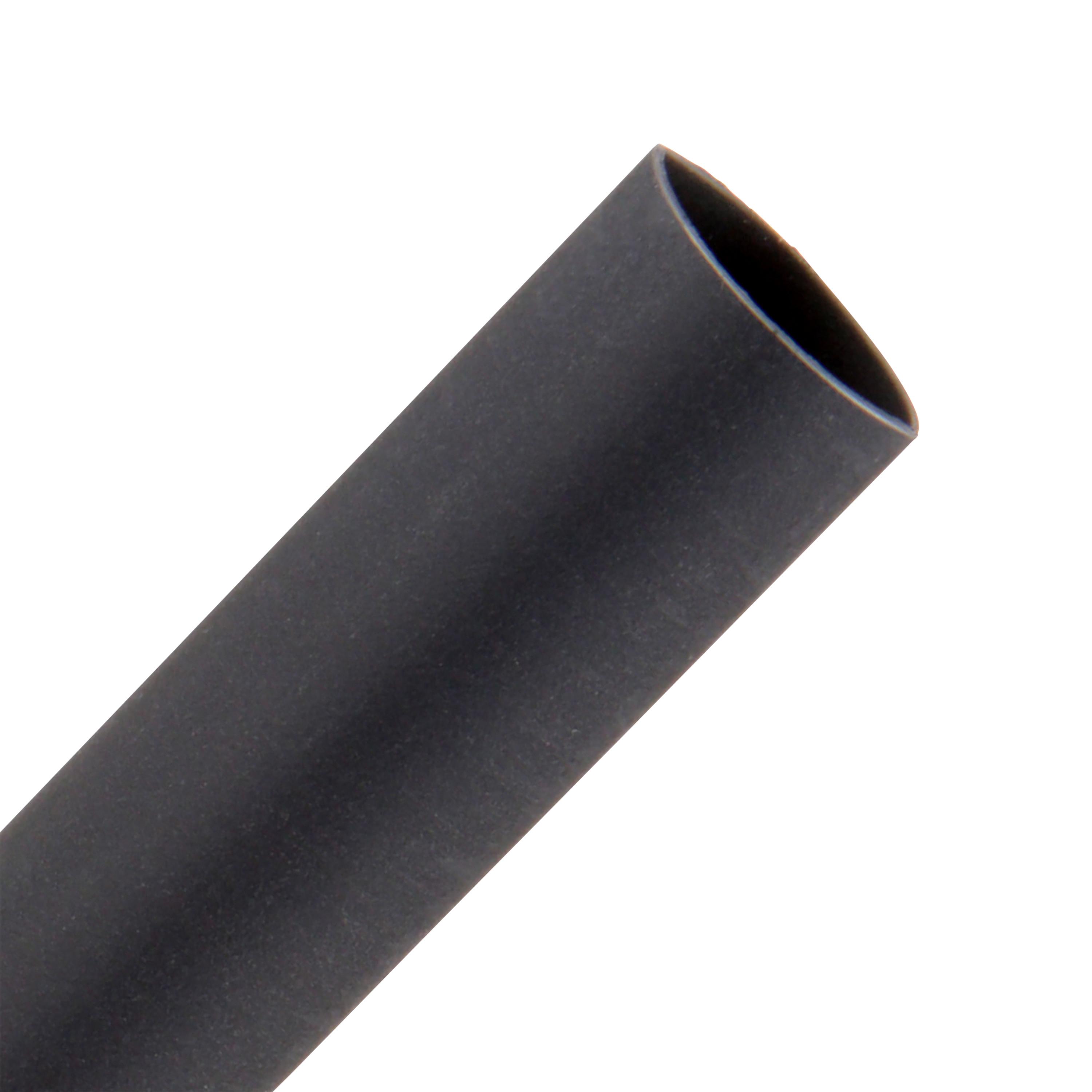

Catalog Description: 3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.
80-6114-7245-9 Specifications
- Balances electrical, physical and chemical properties for various industrial and military applications
- 175% elongation for 336 hr at 175 deg C heat aging
- 1.3 specific gravity
- +/-5% longitudinal change
- Has flexible polyolefin construction that offers moisture seal protection
- Provides flame-retardant insulation for 600 V rated applications
- Offers shrink fit protection and strain relief of wires, solder joints, terminals and connections
- Used as a shrink fit electrical insulation over cable splices and terminations
- 10 years shelf life from date of manufacture
- Low temperature flexibility, no cracking
- No dripping, flowing, cracking heat shock
- 10^15 Ohm-cm volume resistivity
- 900 V/mil dielectric strength
- 0.2% water absorption
- 2400 psi tensile strength
80-6114-7245-9 Application
Lightweight Wire Harness Covering, Fire-Resistant Covering, Wire Marking, Wire Bundling and Component Packaging Applications80-6114-7245-9 Item Features
- Used as a shrink-fit electrical insulation over cable splices and terminations
- 10 years shelf life from date of manufacture
- Low temperature flexibility, no cracking
- No dripping, flowing, cracking heat shock
- 10^15 ohm-cm volume resistivity
- 900 v/mil dielectric strength
- 0.2% water absorption
- 2400 psi tensile strength
- 175% elongation for 336 hr at 175 deg c heat aging
- 1.3 specific gravity
- +/-5% longitudinal change
- Offers shrink-fit protection and strain relief of wires, solder joints, terminals and connections
- Flame-retardant tubing, for applications up to 600V (clear is not flame retardant)
- High-strength protection, balances electrical, physical, and chemical properties for various industrial and military applications
- FOR DEMANDING CONDITIONS - Performs at an operating temperature up to 275 deg F (135 deg C)
- http://images.salsify.com/video/upload/s--hs1ErooU--/b6d539b515efe739520d920d12386315ea9eda2e.mp4
80-6114-7245-9 Standards
UL Listed|CSA Certified|RoHS Compliant|SAE-AMS-DTL-23053/5/AMS-3636/3637|SAE AS23053/5 Class ISKU #2365300Part Number #80-6114-7245-9UNSPSC31201500UPC00051128595848
