Part Number # AF26N1-30-11-13
SKU # 2378641
AF26N1-30-11-13
ABB AF26N1-30-11-13
Part Number # AF26N1-30-11-13
SKU # 2378641
$121.33 / Each
Typical price:$200.42 / Each
ABB AF26N1-30-11-13 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF26N1-30-11-13 |
| SKU #: | 2378641 |
| Coil Power Rating: | 7-1/2 hp, 15 hp, 20 hp, 2 hp, 3 hp |
| Contact Rating: | 45 A at 690 V |
| Dimensions: | 45 mm W x 111.5 mm D x 86 mm H |
| Enclosure Type: | IP20/NEMA 1 |
| Series: | AF Series |
| Size: | AF26 |
| Wattage: | 6.5/11/15 kW |
| UNSPSC: | 39121529 |
| UPC: | 00888614091603 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$121.33 / Each
Typical price:$200.42 / Each
Quantity:
ABB AF26N1-30-11-13
Brand: ABB
Part Number: AF26N1-30-11-13
Additional Description: ABB -AF26N1-30-11-13 CONTACTOR NEMA 1, 3 POLE, 27A
AF26N1-30-11-13 Application
For controlling 3 ph motors and power circuits up to 600 VACAF26N1-30-11-13 Item Features
- Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and VDC), only 4 control voltage ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- Add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
- 45 A at 690 V, 40 A at 690 V, 32 A at 690 V rated operational current AC-1
- 4 A at 220/240 V, 6 A at 24/127 V, 2 A at 500 V, 2 A at 690 V, 3 A at 400/440 V rated operational current AC-15
- 26 A at 220/230/240 V, 26 A at 380/400 V, 26 A at 415 V, 26 A at 440 V, 23 A at 500 V, 17 A at 690 V rated operational current AC-3
- 7-1/2 hp at 220 to 240 VAC 3 ph, 15 hp at 440 to 480 VAC 3 ph, 20 hp at 550 to 600 VAC 3 ph, 2 hp at 120 VAC 1 ph, 7-1/2 hp at 200 to 208 VAC 3 ph, 3 hp at 240 VAC 1 ph
- 5.5 kW at 220/230/240 V, 11 kW at 415 V, 11 kW at 440 V, 11 kW at 500 V, 9 kW at 690 V, 11 kW at 400 V
SKU #2378641Part Number #AF26N1-30-11-13UNSPSC39121529UPC00888614091603

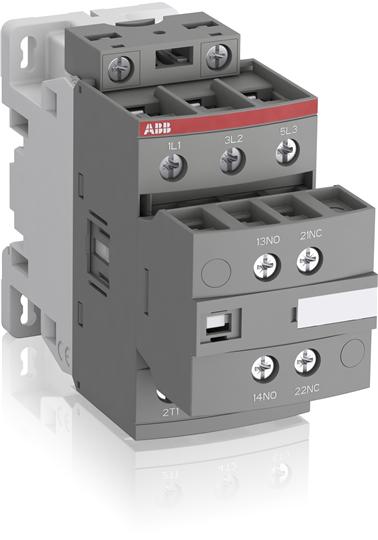

Image provided may only be a representation of final product and may include optional equipment
