PSR030FS0400Z
LITTELFUSE PSR030FS0400Z
Part Number # PSR030FS0400Z
SKU # 2379430
$297.81 / Each
Typical price:$635.32 / Each
Littelfuse PSR030FS0400Z Key Features
| Brand: | Littelfuse |
|---|---|
| Part Number # : | PSR030FS0400Z |
| SKU #: | 2379430 |
| Body Type: | Square |
| Class: | Class AR |
| Indicating/Non-Indicating: | Indicating |
| Interrupt Rating: | 150/200 kA |
| Series: | PSR Series |
| Terminal Type: | Flush End Inches Thread |
| Type: | High Speed Very Fast Acting |
| Material: | Ceramic |
| Mounting type: | Flush End |
| Manufacturer Name: | Littelfuse |
| UNSPSC: | 39121628 |
| UPC: | 00007945820462 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$297.81 / Each
Typical price:$635.32 / Each
Quantity:
- Littelfuse POWR-SPEED Semiconductor Fuse, High Speed Very Fast Acting, Series: PSR Series, Indicating, 400 A, 690/700 V AC/600 V DC, 150/200 kA Interrupt, Class: Class aR, Flush End Inches Thread Terminal, Flush End Mounting, Square Body, Ceramic, 1.86 in L x 1.69 in W x 1.69 in H Body
PSR030FS0400Z Application
For power conversion devices (UPS, inverter, rectifiers, drives), DC systems (dc common bus, dc injection braking), battery protection application (energy storage systems), electric vehicle charging stations, heaters and power suppliesPSR030FS0400Z Item Features
- Best in class DC performance
- Extremely current limiting
- Superior cycling capability
- Direct bus bar mount design
- Visual and microswitch fuse blown indication
- Low watt loss design
- Class aR performance according to IEC 60269-4
- 200 kA at 690 VAC IEC, 700 VAC UL, 150 kA at 600 VDC interrupt rating
- https://players.brightcove.net/1799386164001/default_default/index.html?videoId=4814378601001
PSR030FS0400Z Standards
CE Certified|cULus File No. E71611 Recognized|IEC 60269-4|REACH Compliant|UL 248-13 File No. E71611 Recognized|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer.SKU #2379430Part Number #PSR030FS0400ZUNSPSC39121628UPC00007945820462

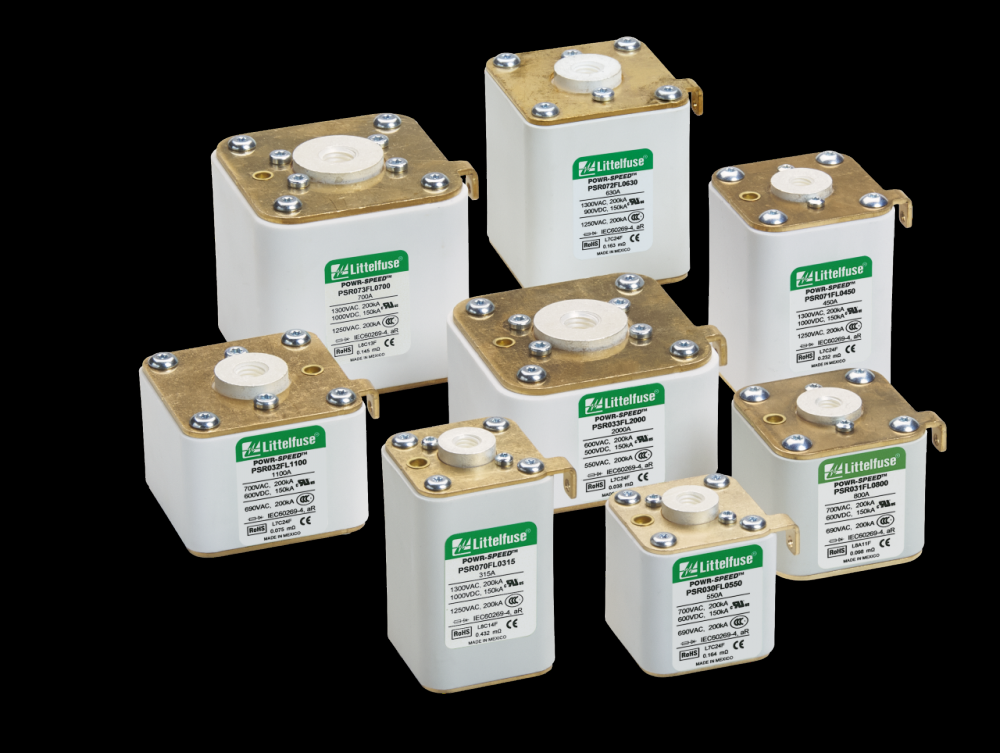

Image provided may only be a representation of final product and may include optional equipment
