Part Number # CCPB-3-50CF
SKU # 2382880
CCPB-3-50CF
BUSSMANN CCPB-3-50CF
Part Number # CCPB-3-50CF
SKU # 2382880
$492.00 / Each
Typical price:$723.24 / Each
Bussmann CCPB-3-50CF Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | CCPB-3-50CF |
| SKU #: | 2382880 |
| Amperage Rating: | 45 to 50 A |
| Operating Temperature: | -20 to 75 deg C |
| Operator: | Switch Handle |
| Series: | CCPB |
| Type: | Compact Lock-On Provision |
| Wire Size: | 18 to 10 AWG, 8 to 6 AWG, 4 AWG |
| Wire Type: | Single Solid/Dual Solid/Stranded Copper |
| Height: | 2.9 in |
| Material: | Glass Filled Polyethersulfone |
| UNSPSC: | 39122233 |
| UPC: | 00051712205009 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$492.00 / Each
Typical price:$723.24 / Each
Quantity:

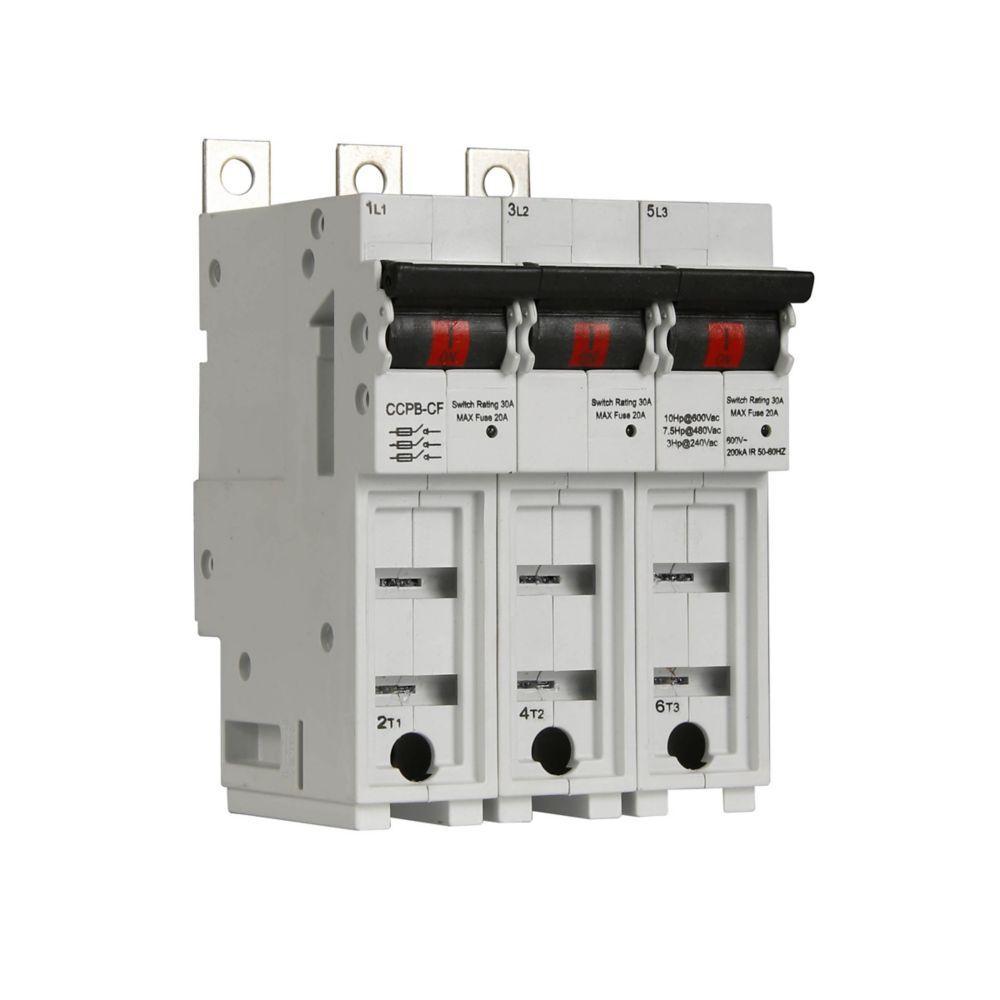

- Bussmann CUBEFuse Circuit Protector Base, Compact Lock-On Provision, Series: CCPB, 600 V AC/125 V DC, 45 to 50 A, 3 Poles, Class CF Fuse, 18 to 10 AWG, 8 to 6 AWG, 4 AWG Wire, Single Solid/Dual Solid/Stranded Copper Wire, Bolt Mount, Switch Handle Operator, -20 to 75 deg C Operating, 3 in Width, 2.9 in Height, 3.9 in D, Glass Filled Polyethersulfone
CCPB-3-50CF Specifications
- Uses finger safe class CF Low-Peak® CUBEFuse™ with current limiting, time delay class J performance
- 7-1/2 hp at 240 VAC, 20 hp at 480 VAC, 10 hp at 600 VAC maximum hp rating
- Disconnect rated to provide means for load isolation
- 1, 2 and 3-pole versions are horsepower rated
- Patented rejection feature helps prevent overfusing
- Open fuse indication light per pole
- Additional open fuse indication can be provided by using the indicating CUBEFuse™ version
- Built-in switch/fuse interlock prohibits removing the fuse while energized
- Permanent lockout/tagout provisions
- Lock-on provision
CCPB-3-50CF Application
Quik-Spec Co-ordination Panelboard ApplicationsCCPB-3-50CF Item Features
- Uses finger safe, current limiting class CF
- Patented ampacity rejection feature helps prevent over fusing
- High 200 kA short circuit current ratings
- Disconnect rated to provide means for load isolation
- All versions are full voltage rated at 600 VAC
- UL 98 listed and suitable for branch circuit disconnect
- Open fuse indication light per pole
- Additional open fuse indication can be provided by using the time delay indicating CUBEFuse version
- Built-in switch/fuse interlock prohibits fuse removal while energized
- Permanent lockout/tagout provisions
- 18 to 10 AWG, 8 to 6 AWG single or dual rated solid or stranded 75 deg C or higher copper only, 4 AWG single 75 deg C or higher copper only load side box lug terminal
- https://www.youtube.com/watch?v=YMvqUyoETXk
CCPB-3-50CF Standards
RoHS Compliant|UL 98, Guide WHTY, File No. E302370|cULus Listed|CSA 22.2 No. 4, Guide WHTY, File No. E3023707|CE CertifiedSKU #2382880Part Number #CCPB-3-50CFUNSPSC39122233UPC00051712205009
Image provided may only be a representation of final product and may include optional equipment
