Part Number # 33+-3/4X76FT-1
SKU # 2385990
Brand: 3M
33+-3/4X76FT-1
3M 33+-3/4X76FT-1
Part Number # 33+-3/4X76FT-1
SKU # 2385990
$8.99 / Each
Typical price:$13.48 / Each
3M 33+-3/4X76FT-1 Key Features
| Brand: | 3M |
|---|---|
| Part Number # : | 33+-3/4X76FT-1 |
| SKU #: | 2385990 |
| Backing Material: | PVC |
| Material Type: | PVC, Super 33+ Vinyl |
| Maximum Operating Temperature: | 221 deg F |
| Minimum Operating Temperature: | 0 deg F |
| Series: | Super 33, Super 33+ |
| Thickness: | 7 mil |
| Type: | Vinyl |
| Country of origin: | US |
| Dielectric strength: | 1150 V/mil |
| Length: | 25 yd, 76 ft |
| Width: | 0.75 in, 3/4 in |
| UNSPSC: | 31201500 |
| UPC: | 00638060290354 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$8.99 / Each
Typical price:$13.48 / Each
Quantity:
- Scotch, 638060-29035, Black Electrical Tape, Series: Super 33+, 76 ft Length, 3/4 in Width, 7 mil Thickness, Super 33+ Vinyl, Black, 1 in Diameter Core, Rubber Adhesive, PVC Backing, 28 in-oz Steel, 28 in-oz Backing at 73 deg F Adhesion Strength, 600 V, 1150 V/mil Dielectric Strength, 15 in-lb Tensile Strength, 221 deg F Maximum Operating, 0 deg F Minimum Operating, Specifications Met: CSA C22.2 File No. 197, File No. 048769 Class 9052-02, UL 510, Category OANZ, File No. E129200, VDE Marks License No. 130462 for Type 7: IEC 60454-3-1-7/F-PVC P/90
33+-3/4X76FT-1 Application
Above and Below Grade, Indoor and Outdoor, Harnessing Cable, Low and High Voltage Applications33+-3/4X76FT-1 Item Features
- Resists UV rays, abrasion, moisture, alkalis, solvents and acids
- Flame retardant and inhibits the corrosion of electrical conductors
- Made of durable PVC
- The combination of the pressure sensitive, rubber resin adhesive and the PVC backing offers electrical and mechanical protection
- Compatible with rubber and synthetic splicing compounds
- Withstands a temperature range of 0 to 221 deg F (-18 to 105 deg C)
33+-3/4X76FT-1 Standards
3M File No. E256906 Meets A-A-55809|ASTMD 1000/D1000|CSA C22.2 No. 197-M1983 File LR 48769|OANZ2|RoHS 2011/65/EU|UL 510 File No. E129200SKU #2385990Part Number #33+-3/4X76FT-1UNSPSC31201500UPC00638060290354

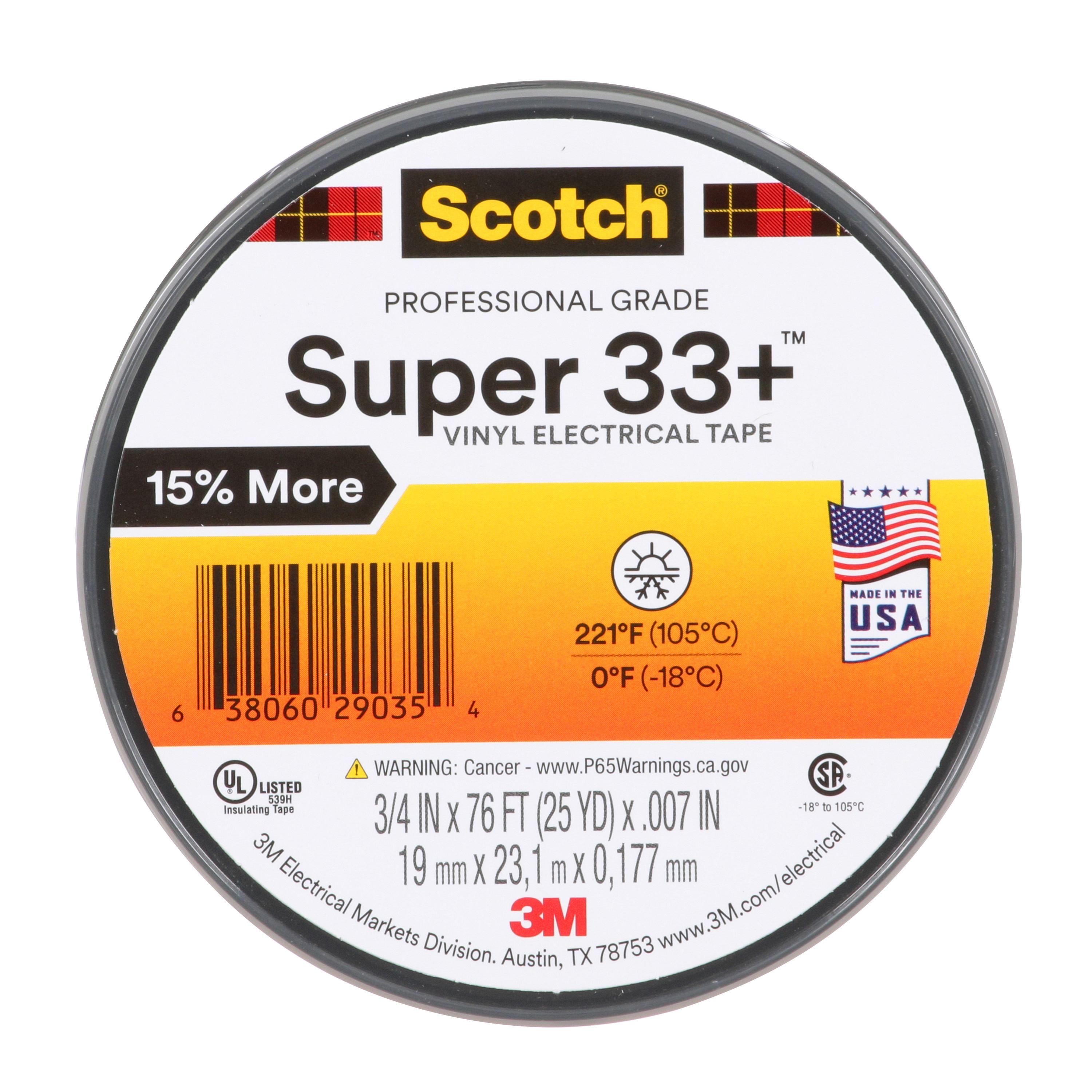

Image provided may only be a representation of final product and may include optional equipment
