Part Number # 231-180/003-000
SKU # 2398414
Image Disclaimers Message
Brand: Wago
231-180/003-000
Wago 231-180/003-000
Part Number # 231-180/003-000
SKU # 2398414
$11.26 / Each
Typical price:$12.20 / Each
Wago 231-180/003-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 231-180/003-000 |
| SKU #: | 2398414 |
| Amperage Rating: | 16 A |
| Dimensions: | 1.02 in H x 4.063 in W x 0.331 in D |
| Number of Positions: | 20 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Straight |
| Material: | Polyamide |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04044918905510 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$11.26 / Each
Typical price:$12.20 / Each
Quantity:
Wago 231-180/003-000
Brand: Wago
Part Number: 231-180/003-000
Additional Description: WAGO-231-180/003-000 MALE CONNECTOR FOR RAIL-MOUNT 51151042 STRAIGHT; PIN SPACING 5 MM; 20-POLE; GRAY

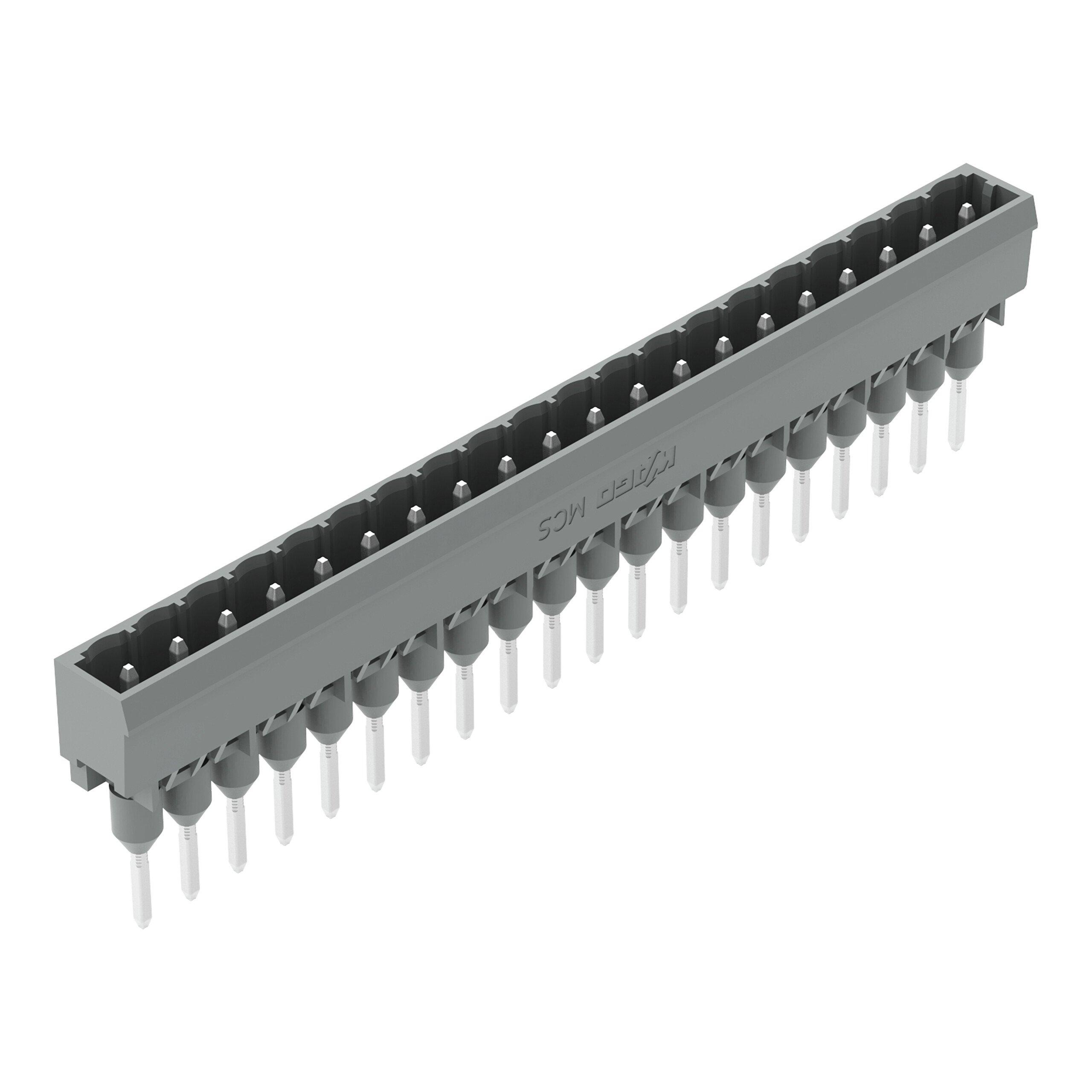

Catalog Description: Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 20-pole; gray
231-180/003-000 Item Features
- Pluggable connectors for rail-mount terminal blocks equipped with CAGE CLAMP connection
- Male connectors with long contact pins connect to the termination ports of 280 Series Rail-Mount Terminal Blocks
- Pins can be touched when the connector is unplugged, so power supply should be performed via terminal block (observe rated voltage)
- With coding fingers
231-180/003-000 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2398414Part Number #231-180/003-000UNSPSC39121421UPC04044918905510
