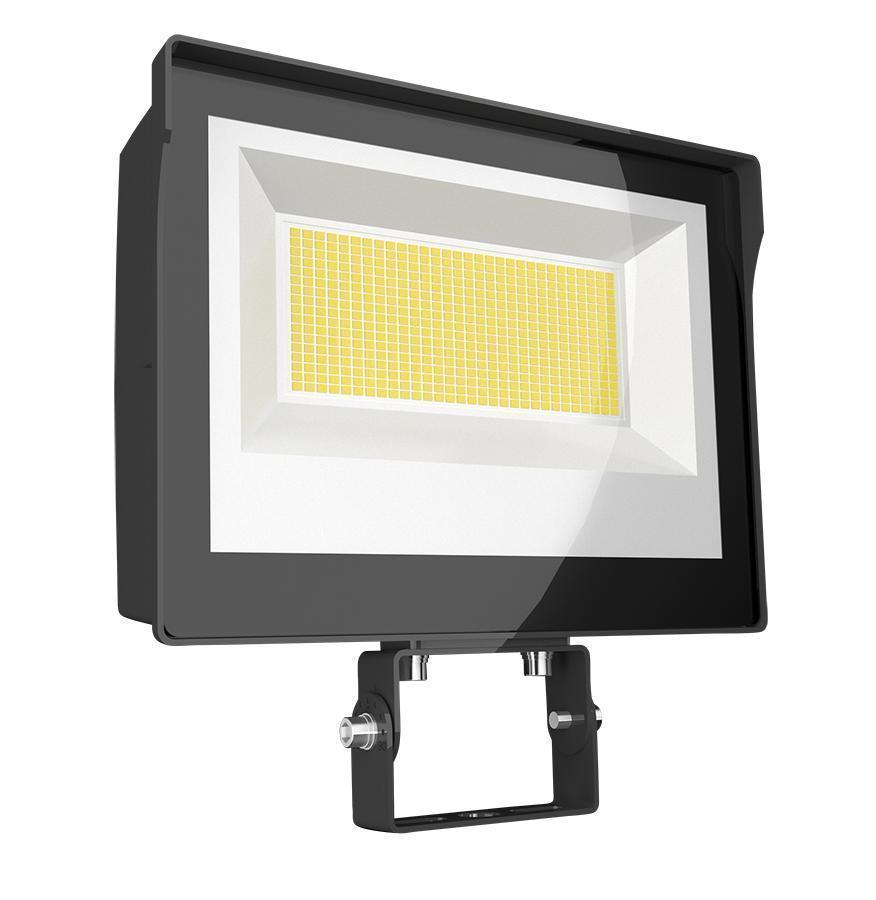

RAB X17XFU60T X17 Adjustable Floodlight Fixture, LED Lamp, 30 W Fixture, 120, 208, 240, 277 V, Bronze Housing
Part Number # X17XFU60T
SKU # 2402053
$244.00
X17XFU60T Key Features
| Part Number # : | X17XFU60T |
|---|---|
| SKU #: | 2402053 |
| Amperage Rating: | 0.50/0.35/0.28/0.22 A |
| Ballast Type: | Constant Current |
| Color Rendering Index (CRI): | 83 to 85 CRI |
| Dimensions: | 9-13/16 in H x 9-11/16 in W x 3 in D |
| Enclosure Type: | NEMA 7H x 7V/IP65 |
| Fixture Wattage: | 30 W |
| Housing Finish: | Bronze |
| Lamp Type: | LED |
| Lamp Wattage: | 60 W |
| Lens Type: | Tempered Glass |
| Light Output: | 129 Lumens/W |
| Lumens: | 3891 Lumens |
| Series: | X17 |
| Type: | Adjustable |
| Country of origin: | CN |
| Housing material: | Die Cast Aluminum |
| Mounting type: | Trunnion |
| Manufacturer Name: | RAB Lighting |
| UNSPSC: | 39112102 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$244.00
Quantity:
- RAB, X17XFU60T, Floodlight Fixture, Adjustable, Series: X17, 120, 208, 240, 277 V, 30 W Fixture, 0.50, 0.35, 0.28, 0.22 A, Mercury/UV-Free Lighting Technology, LED Lamp, 60 W Lamp, 129 Lumens/W Light Output, 100000 hrs Average Life, 3000/4000/5000 K Color Temperature, 83 to 85 CRI, Constant Current Ballast, Tempered Glass Lens, 3891 Lumens, Class 2 Insulation, NEMA 7H x 7V/IP65 Enclosure, Trunnion Mounting, Die Cast Aluminum Housing Material, Bronze Housing Finish, 9-13/16 in H x 9-11/16 in W x 3 in D Dimensions
X17XFU60T Application
For Wet LocationsX17XFU60T Includes
Dimming DriverX17XFU60T Item Features
- 3-Way field adjustability
- Tempered glass lens and polycarbonate reflector
- DLC Premium
- Trunnion mount
- Integrated 120-277V button photocell that can be turned on or off
- 7H x 7V NEMA wide distribution
- 0-10V dimmable
- 100,000-hour LED lifespan
- Precision die-cast aluminum body
X17XFU60T Standards
UL Listed|BAA Compliant|RoHS-Compliant|DLC Listed|IESNA LM-79 and LM-80|ANSI C78.377-2017X17XFU60T Warranty
5 YearsSKU #2402053Part Number #X17XFU60TUNSPSC39112102UPC
