Part Number # EZPAN2X4-40N/D10
SKU # 2404871
Image Disclaimers Message
EZPAN2X4-40N/D10

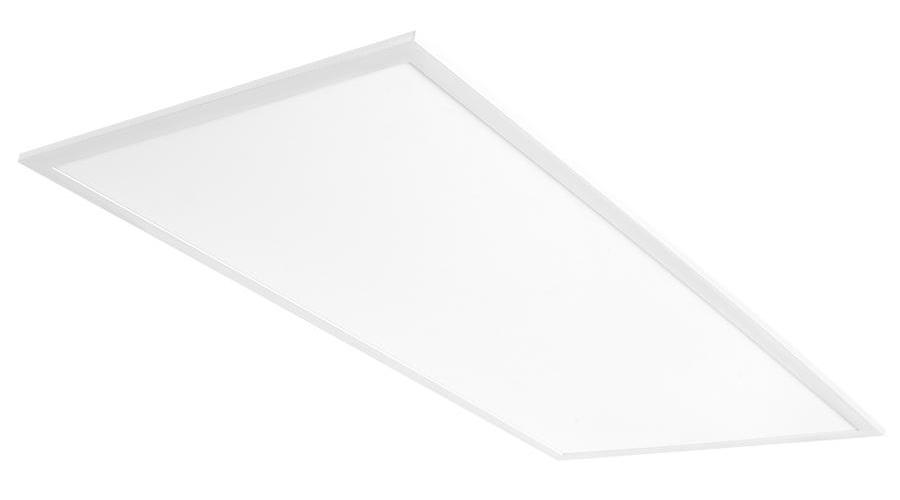

RAB EZPAN2X4-40N/D10 EZPAN Standard Edgelit Panel Light, LED Lamp, 40 W Fixture, 120/208/240/277 V AC, Aluminum Housing
Part Number # EZPAN2X4-40N/D10
SKU # 2404871
$87.97
Typical price:$140.00 /
EZPAN2X4-40N/D10 Key Features
| Part Number # : | EZPAN2X4-40N/D10 |
|---|---|
| SKU #: | 2404871 |
| Amperage Rating: | 0.16/0.19/0.21/0.33 A |
| Ballast Type: | Class 2 Constant Current/0 to 10 VDC Dimmable |
| Color Rendering Index (CRI): | 83 |
| Dimensions: | 2 ft H x 4 ft W x 1-5/8 in D |
| Fixture Wattage: | 40 W |
| Lamp Type: | LED |
| Lamp Wattage: | 40 W |
| Lens Type: | Frosted Polystyrene |
| Light Color: | Neutral White |
| Light Output: | 112 Lumens/W |
| Lumens: | 4465 Lumens |
| Series: | EZPAN |
| Type: | Standard |
| Country of origin: | CN |
| Housing material: | Aluminum |
| Mounting type: | Ceiling |
| Manufacturer Name: | RAB Lighting |
| UNSPSC: | 39111505 |
| UPC: | 019813491608 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$87.97
Typical price:$140.00 /
Quantity:
- RAB Edgelit Panel Light, Standard, Series: EZPAN, 120/208/240/277 V AC, 40 W Fixture, 0.16/0.19/0.21/0.33 A, LED Lamp, 40 W Lamp, 112 Lumens/W Light Output, 60000 hr Average Life, Neutral White Light, 4000 K Color Temperature, 83 CRI, Class 2 Constant Current/0 to 10 VDC Dimmable Ballast, Frosted Polystyrene Lens, 4465 Lumens, Ceiling Mounting, Aluminum Housing Material, 2 ft H x 4 ft W x 1-5/8 in D Dimensions
EZPAN2X4-40N/D10 Application
For insulated ceilingsEZPAN2X4-40N/D10 Item Features
- Perfect for shallow plenums
- Even and diffuse ambient illumination, ideal for spaces where glare free lighting is required
- Ultra efficient, up to 124 Lumens/W, reducing energy costs by up to 73%
- 0.33 A at 120 VAC, 0.21 A at 208 VAC, 0.19 A at 240 VAC, 0.16 A at 277 VAC
EZPAN2X4-40N/D10 Standards
DLC Listed|IESNA LM-79|LM-80|UL Listed for Damp LocationSKU #2404871Part Number #EZPAN2X4-40N/D10UNSPSC39111505UPC019813491608
