Part Number # 725BXXSC3ML24D
SKU # 2405307
Image Disclaimers Message
Brand: Square D
725BXXSC3ML24D

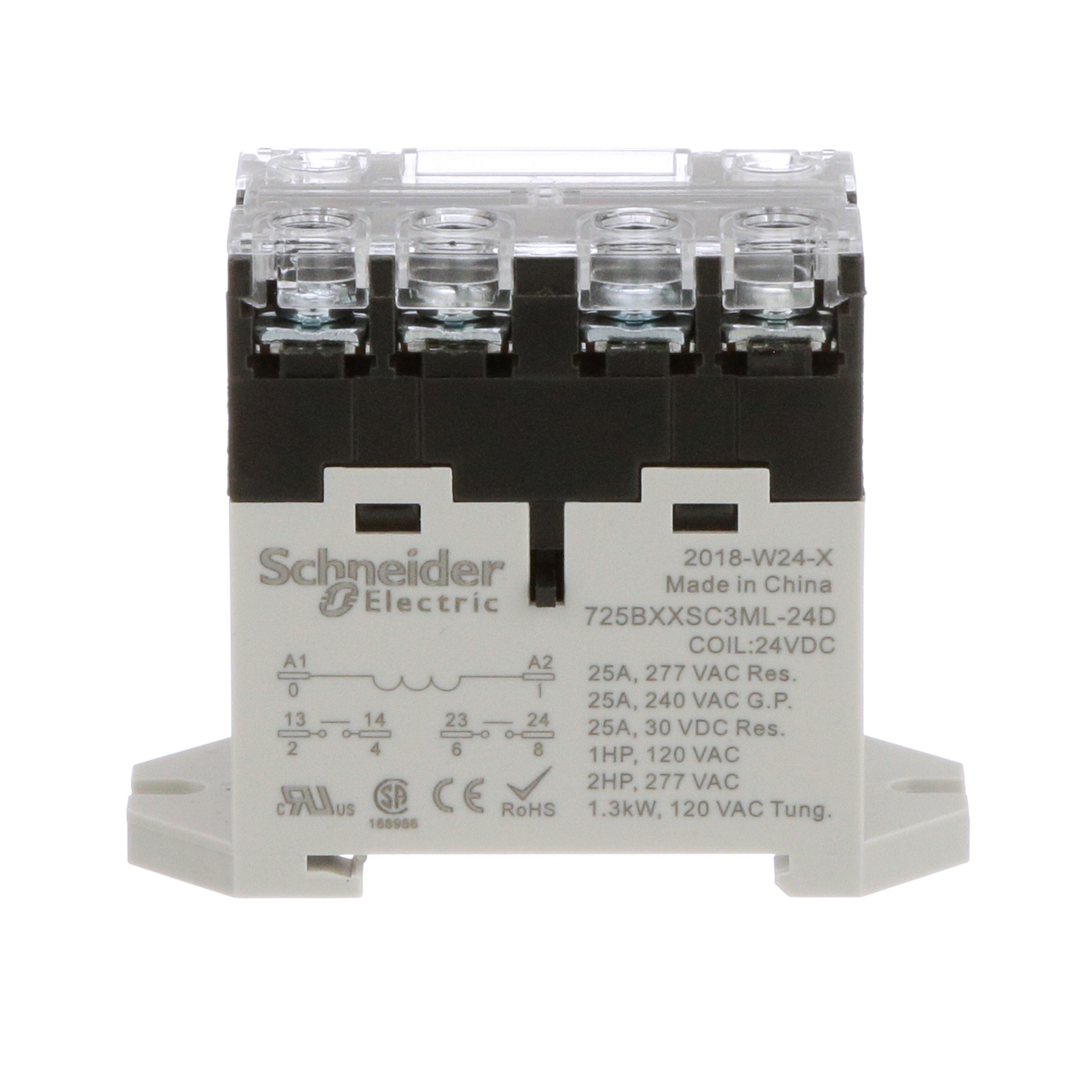

Square D 725BXXSC3ML24D
Part Number # 725BXXSC3ML24D
SKU # 2405307
Square D 725BXXSC3ML24D Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 725BXXSC3ML24D |
| SKU #: | 2405307 |
| Amperage Rating: | 25 A |
| Coil Voltage: | 24 V DC, 24 VDC |
| Contact Form: | 2NO, 2NO 2 Form A |
| Dimensions: | 2.67 in H x 1.37 in W x 2.12 in D |
| Display Type: | LED |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Series: | 725 |
| Temperature Rating (Degrees F): | -4 to 131 deg F |
| Terminal Type: | Screw Terminal |
| Country of origin: | CN |
| Mounting type: | DIN/Panel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122324 |
| UPC: | 00785901164630 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
- Schneider Electric, 725BXXSC3ML-24D, Power Relay, Series: 725, 25 A, 1.3 kW Tungsten at 120 V, 1 hp at 120 VAC, 2 hp at 277 VAC Power, 50/60 Hz Frequency, 24 V DC Coil, 2NO 2 Form A Contact Form, DIN/Panel Mounting, Screw Terminal, LED Display, IP20 Enclosure, -4 to 131 deg F, 2.67 in H x 1.37 in W x 2.12 in D Dimensions
725BXXSC3ML24D Application
Suitable for high-capacity switching applications such as EV charging, CNC machines and HVAC compressors725BXXSC3ML24D Item Features
- Wide range of EMR Relays to meet general industrial applications
- Dedicated power relays (725) for high power applications like Electrical Vehicle charging
- Hermetically sealed relays (782H) for hazardous locations
- Pre-assembled relays to simplify selection and installation, just one reference with complete solution of the relay, socket, and accessories
- Push-in sockets to save up to 64% wiring time and ease maintenance
- Bus jumper to ease the wiring when multiple EMR Relays are used
- One step lockable test button
- Mechanical indicator for contact status
725BXXSC3ML24D Standards
IP20 Rated|UL 60947-4-1A|CSA|CE|IEC 60947-1SKU #2405307Part Number #725BXXSC3ML24DUNSPSC39122324UPC00785901164630
