Part Number # WP1XFU29
SKU # 2406623
Image Disclaimers Message
WP1XFU29

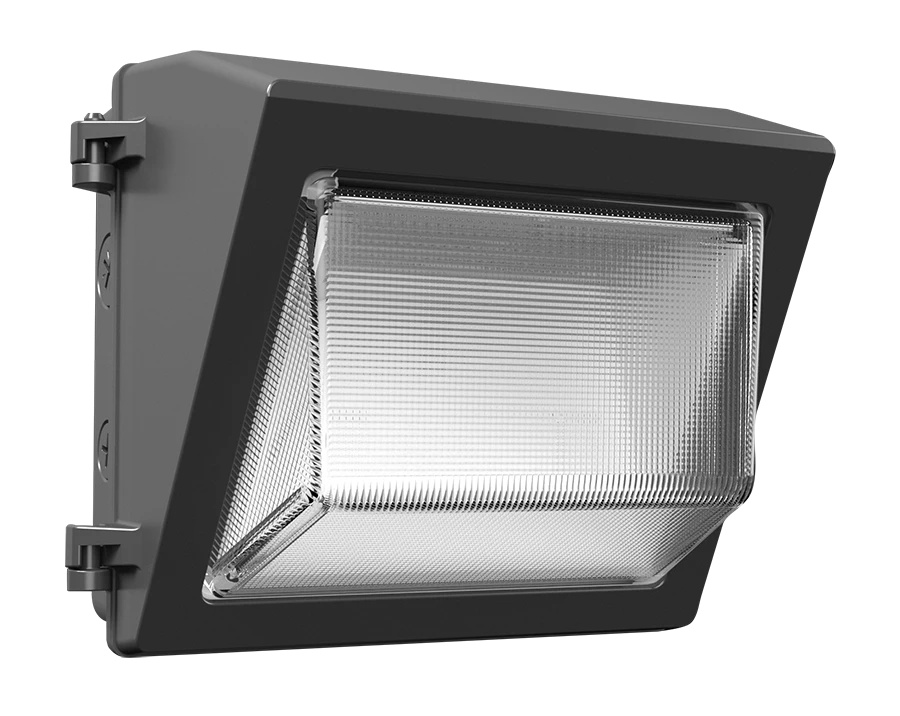

RAB WP1XFU29 WP1 HID Outdoor Wallpack, LED Lamp, 15 W Fixture, 120, 208, 240, 277 V, Bronze Housing
Part Number # WP1XFU29
SKU # 2406623
$105.06
Typical price:$166.00 /
WP1XFU29 Key Features
| Part Number # : | WP1XFU29 |
|---|---|
| SKU #: | 2406623 |
| Amperage Rating: | 0.30/0.20/0.15/0.10 A |
| Ballast Type: | 0 to 10 V Dimmable |
| Color Rendering Index (CRI): | 80 CRI |
| Dimensions: | 8-1/4 in H x 10-3/4 in W x 7-11/16 in D |
| Enclosure Type: | IP65 |
| Fixture Wattage: | 15 W |
| Housing Finish: | Bronze |
| Lamp Type: | LED |
| Lamp Wattage: | 15 W |
| Lens Type: | Tempered Glass |
| Light Output: | 136 Lumens/W |
| Lumens: | 2102 Lumens |
| Series: | WP1 |
| Type: | HID |
| Country of origin: | US |
| Housing material: | Die Cast Aluminum |
| Mounting type: | Wall |
| Manufacturer Name: | RAB Lighting |
| UNSPSC: | 39112102 |
| UPC: | 192552004626 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$105.06
Typical price:$166.00 /
Quantity:
- RAB, WP1XFU29, Outdoor Wallpack, HID, Series: WP1, 120, 208, 240, 277 V, 15 W Fixture, 0.30, 0.20, 0.15, 0.10 A, LED Lamp, 15 W Lamp, 136 Lumens/W Light Output, 100000 hrs Average Life, 3000/4000/5000 K Color Temperature, 80 CRI, 0 to 10 V Dimmable Ballast, Tempered Glass Lens, 2102 Lumens, IP65 Enclosure, Wall Mounting, Die Cast Aluminum Housing Material, Bronze Housing Finish, 8-1/4 in H x 10-3/4 in W x 7-11/16 in D Dimensions
WP1XFU29 Application
For Wet LocationsWP1XFU29 Includes
Dimming DriverWP1XFU29 Item Features
- DLC Premium
- Integrated 120-277V button photocell (can be turned off)
- Die-cast aluminum housing and tempered glass lens
- Replaces 125W HID wall packs
- 100,000-Hour LED lifespan
- 0-10V dimmable
- Flicker free
- Traditional form covers existing footprint
- IP65 Rated
WP1XFU29 Standards
UL Listed|BAA Compliant|RoHS-Compliant|DLC Listed|IESNA LM-79 and LM-80WP1XFU29 Warranty
5 YearsSKU #2406623Part Number #WP1XFU29UNSPSC39112102UPC192552004626
