Part Number # 763020.0320
SKU # 2407077
Image Disclaimers Message
763020.0320
LUTZE 763020.0320
Part Number # 763020.0320
SKU # 2407077
$18.98 / Each
Typical price:$24.84 / Each
LUTZE 763020.0320 Key Features
| Brand: | LUTZE |
|---|---|
| Part Number # : | 763020.0320 |
| SKU #: | 2407077 |
| Amperage Rating: | 2 A |
| Coil Voltage: | 24 V DC, 24 VDC |
| Contact Form: | 1 Form C SPDT |
| Contact Rating: | 5 mA at 20 V AC/2 A at 264 V AC, 5 mA at 20 VAC/2 A at 264 VAC |
| Dimensions: | 6.2 mm W x 73 mm D x 93 mm H |
| Display Type: | Green LED |
| Enclosure Type: | IP20 |
| Number of Poles: | 1 |
| Series: | LCIS |
| Temperature Rating (Degrees F): | -25 to 60 deg C |
| Terminal Type: | Screw |
| Type: | Non-pluggable |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | LUTZE Inc |
| UNSPSC: | 39122333 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$18.98 / Each
Typical price:$24.84 / Each
Quantity:

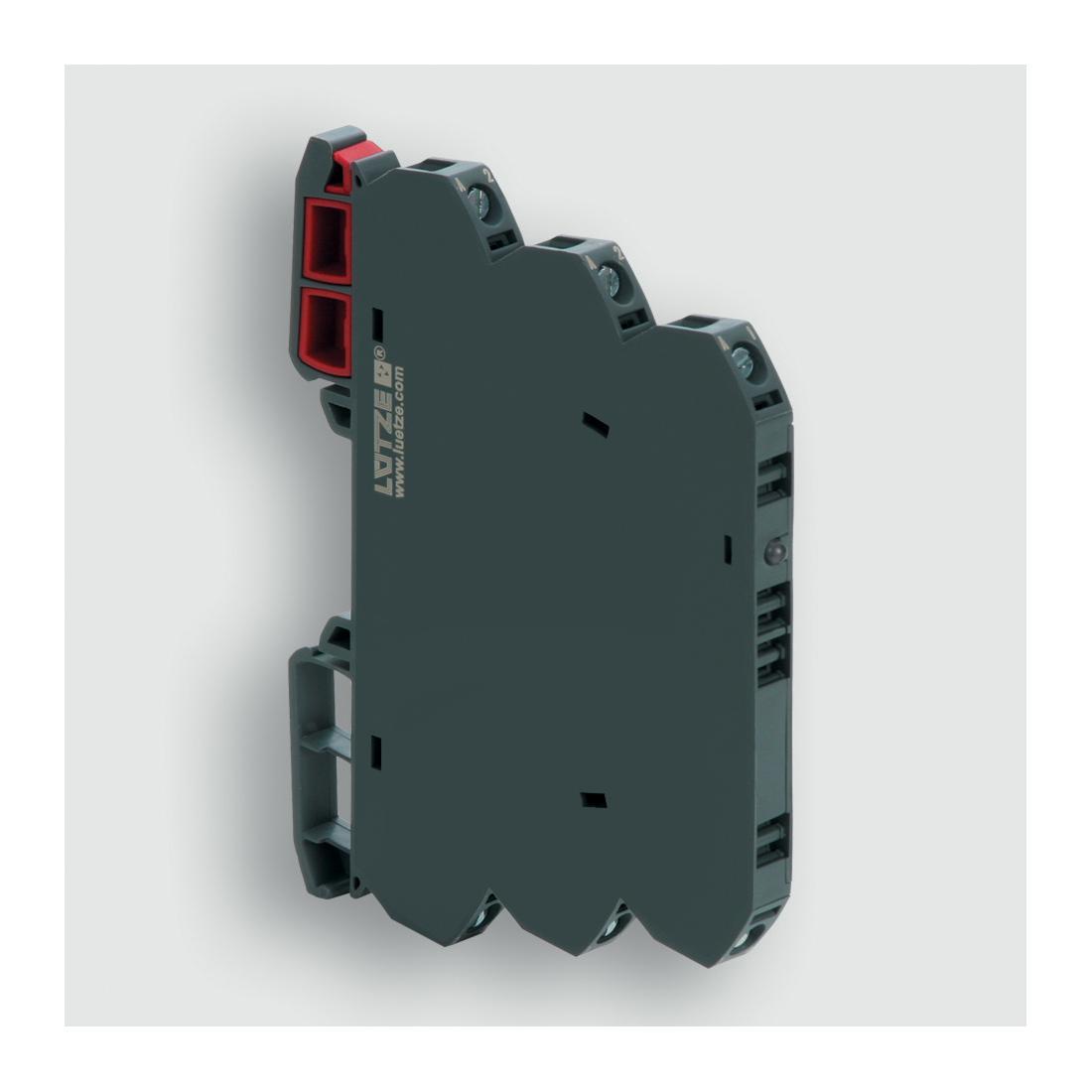

- LUTZE Solid State Relay, Non-pluggable, Series: LCIS, 2 A, 24 V DC Coil, 1 Form C SPDT Contact Form, 5 mA at 20 VAC/2 A at 264 VAC Contact, 1 Pole, DIN Rail Mounting, Screw Terminal, Green LED Display, IP20 Enclosure, -25 to 60 deg C, 6.2 mm W x 73 mm D x 93 mm H
763020.0320 Application
For industrial applications763020.0320 Item Features
- AC/DC outputs
- Clear identification of terminal markings to reduce risk of wiring errors
- Narrow 6.2 mm housing width
- LED status indicator
- 2 to 16 pole jumper accessories
763020.0320 Standards
cULus Listed|UL 508|DNV GLSKU #2407077Part Number #763020.0320UNSPSC39122333UPC
