Part Number # RXM31
SKU # 2407900
RXM31
Thomas & Betts RXM31
Part Number # RXM31
SKU # 2407900
$296.61 / 30Each
Typical price:$397.44 / Each
Thomas & Betts RXM31 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | RXM31 |
| SKU #: | 2407900 |
| Conductor Size: | 2 AWG to 1000 kcmil |
| Conductor Type: | Aluminum/Copper/Solid |
| Dimensions: | 7-1/4 in L |
| Finish: | Black |
| Series: | RMX |
| Specifications: | Insulated, (4) Conductors |
| Type: | Multi-Port |
| Country of origin: | US |
| Material: | Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121443 |
| UPC: | 00783786746859 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$296.61 / 30Each
Typical price:$397.44 / Each
Quantity:

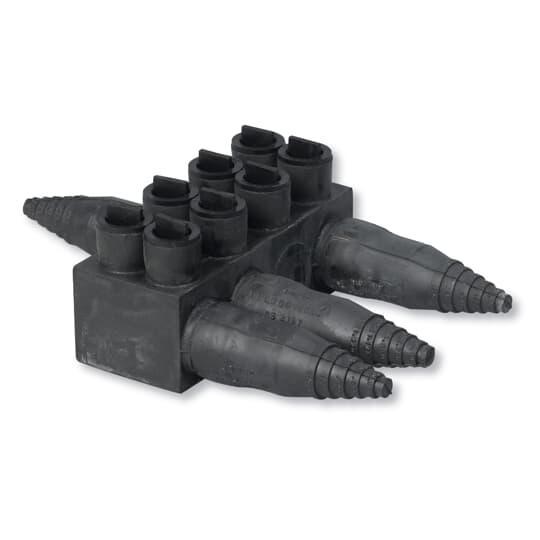

- Homac Flood-Seal Connector, Multi-Port, Series: RMX, Aluminum/Copper/Solid Conductor, 2 AWG to 1000 kcmil Conductor, Ball Bottom Screw, 4000 V, Insulated, (4) Conductors, Aluminum, Black, 7-1/4 in L
RXM31 Application
Direct-Burial, Handhole, Pedestal and Vault ApplicationsRXM31 Includes
(8) Screws, (8) Black Plugs and (4) Caps with LinersRXM31 Item Features
- Flood-Seal EPDM insulating rockets field tested in more than 10 million applications
- 6061-T6 aluminum connector construction provides high strength and high conductivity
- Dual-rated to accept a wide range of aluminum and copper conductors, from 2 AWG solid to 1000 kcmil
- Ball-bottom screws support the widest conductor range and aid in breaking up aluminum oxide
- EPDM rubber cap is easy to find, prevents accidental removal and can be easily removed with pliers
- All connectors are 100% Hi-Pot tested at 4000 V for 60 s
RXM31 Warranty
2 years LimitedSKU #2407900Part Number #RXM31UNSPSC39121443UPC00783786746859
Image provided may only be a representation of final product and may include optional equipment
