Part Number # MEV100C30-S
SKU # 2411827
Image Disclaimers Message

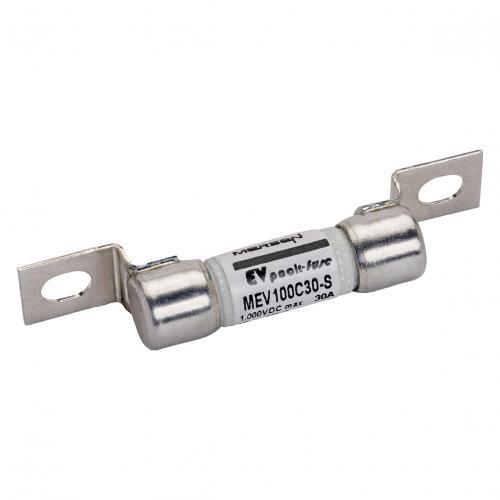

Mersen MEV100C30-S Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | MEV100C30-S |
| SKU #: | 2411827 |
| Amperage Rating: | 30 A |
| Body Type: | Ferrule |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 50 kA |
| Series: | MEV100-S |
| Terminal Type: | Surface Screw |
| Type: | EVpack-Fuse |
| Country of origin: | MX |
| Material: | Tin-Plated Copper |
| Mounting type: | PC Mount |
| Manufacturer Name: | MERSEN |
| UNSPSC: | 39121624 |
| UPC: | 00782001482473 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
- Mersen, MEV100C30-S, Fuse, EVpack-Fuse, Series: MEV100-S, Non-Indicating, 30 A, 1 kV DC, 50 kA Interrupt, Surface Screw Terminal, PC Mount Mounting, Ferrule Body, Tin-Plated Copper, 0.406 in Dia x 2.52 in L Body
MEV100C30-S Application
For EV/HEV, Electrical Energy Storage, Battery pack protection, Battery Disconnect Unit (BDU., Battery Junction Box for auxiliaries, Battery charger, Supercapacitor pack protection, Backup protection for DC relay disconnector switch, Maintenance Safety Disconnect (MSD.MEV100C30-S Item Features
- Provides the ultimate protection of the battery pack offering reliable clearing of DC fault currents
- It has been specifically engineered and tested to provide DC applications best-in-class protection performance Current rating (In) 8 to 600A, Interrupting Rating (IR) 20kA, L/R less than 1ms, Minimum Breaking Capacity (MBC) less than 3kA for a perfect matching with DC contactor
- Design for DC applications
- Low watt losses
- High cycling performance
- Full coverage of battery module voltage and current
MEV100C30-S Standards
IATF 16949:2016|JASO D622|RoHS CompliantSKU #2411827Part Number #MEV100C30-SUNSPSC39121624UPC00782001482473
