Part Number # 4C/227/30TCOASHTYPECM
SKU # 2412631
4C/227/30TCOASHTYPECM
Belden 4C/227/30TCOASHTYPECM
Part Number # 4C/227/30TCOASHTYPECM
SKU # 2412631
$0.53 / Feet
Typical price:$1.02 / Feet
Belden 4C/227/30TCOASHTYPECM Key Features
| Brand: | Belden |
|---|---|
| Part Number # : | 4C/227/30TCOASHTYPECM |
| SKU #: | 2412631 |
| Conductor Type: | Fully Annealed Stranded Tinned Copper |
| Outside Diameter: | 0.19 in |
| Resistance: | 16.5/6.3 Ohm |
| Series: | C0762A |
| Strands: | Jul-30 |
| Type: | Type CMR Foil Multi-Conductor Shielded |
| Manufacturer Name: | Prysmian |
| UNSPSC: | 26121524 |
| UPC: | 00079407405749 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$0.53 / Feet
Typical price:$1.02 / Feet
Quantity:

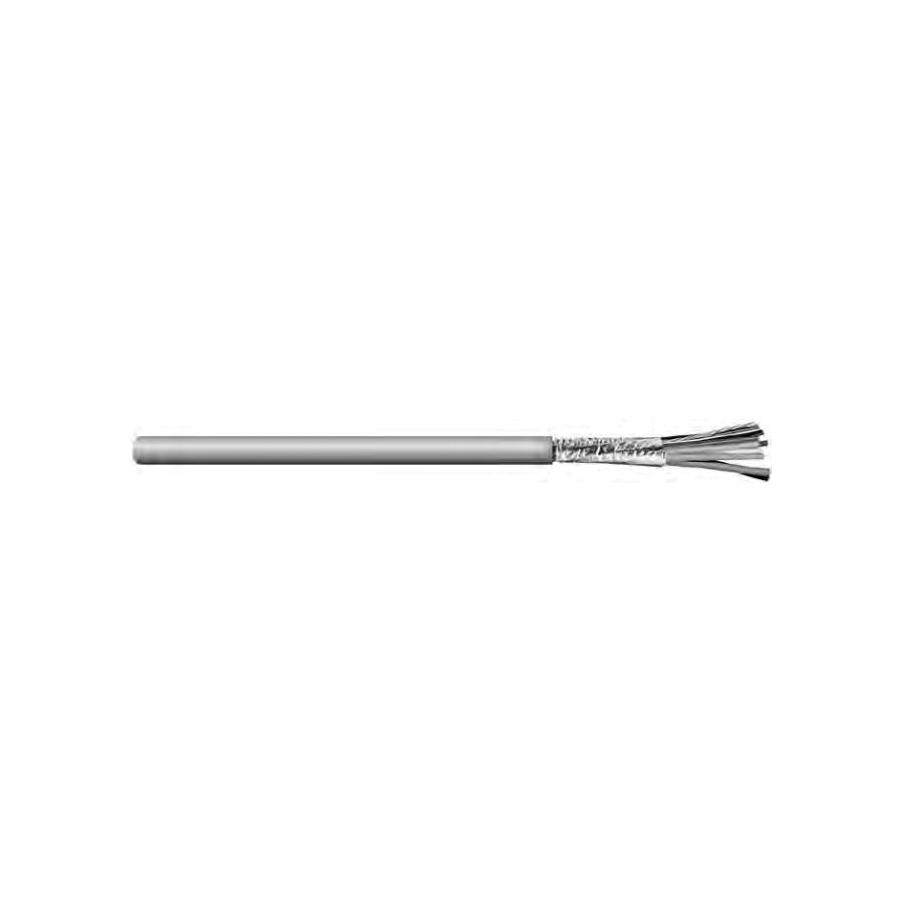

- Carol Computer Cable, Type CMR Foil Multi-Conductor Shielded, Series: C0762A, Reel Packaging, 300 V AC, 4 Conductors, Fully Annealed Stranded Tinned Copper Conductor, 22 AWG Conductor, 0.19 in OD, 1000 ft Length, 7/30 Strands, 16.5/6.3 Ohm Resistance, PVC Insulation, PVC Jacket, Gray Jacket, -20 to 80 deg C
4C/227/30TCOASHTYPECM Application
Computer Interconnections, Data Transmission, Control Circuits and Industrial Equipment Control4C/227/30TCOASHTYPECM Item Features
- 22 or 20 AWG fully annealed stranded tinned copper per ASTM B-33
- Premium-grade, color-coded S-R PVC or PVC
- 36 pF/ft capacitance between conductors, 65 pF/ft capacitance between one conductor and other conductors connected to shield
- Suitable for EIA RS-232 applications
- 100% Flexfoil aluminum/polyester with 25% overlap, minimum, foil facing out
- Stranded tinned copper drain wire
- 16.5 conductor/6.3 shield Ohm/kft
4C/227/30TCOASHTYPECM Standards
UL 2464 Listed|CSA CMG|NEC Article 800 Type CM|NEC Article 800 Type CMR|UL 70,000 BTU Vertical Tray Flame Test|RoHS CompliantSKU #2412631Part Number #4C/227/30TCOASHTYPECMUNSPSC26121524UPC00079407405749
Image provided may only be a representation of final product and may include optional equipment
