Part Number # RSB2A080BDPV
SKU # 2415753
Image Disclaimers Message
RSB2A080BDPV

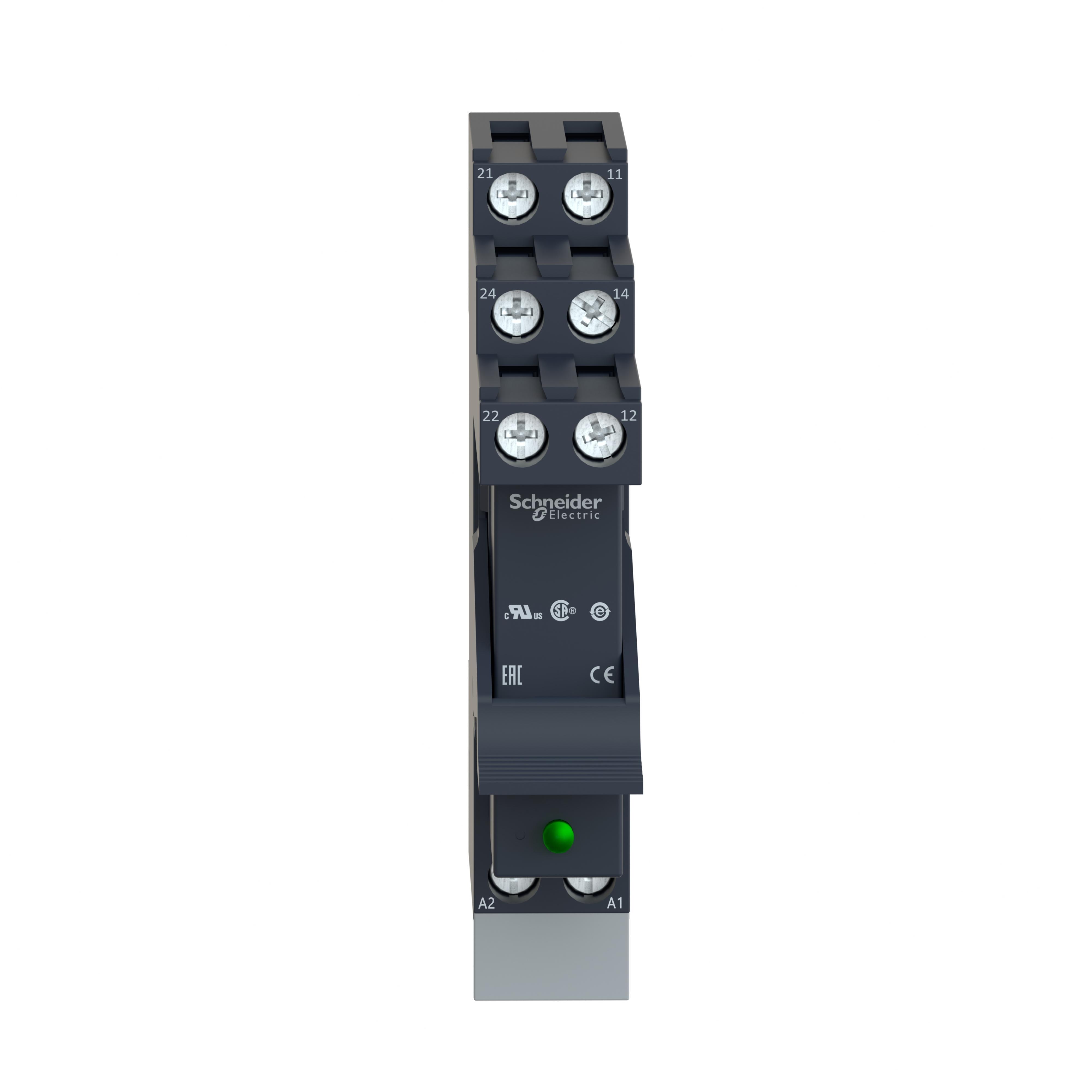

Schneider Electric RSB2A080BDPV
Part Number # RSB2A080BDPV
SKU # 2415753
$22.73 / Each
Schneider Electric RSB2A080BDPV Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | RSB2A080BDPV |
| SKU #: | 2415753 |
| Amperage Rating: | 8 A |
| Contact Form: | 2CO 2 Form C |
| Enclosure Type: | IP20 |
| Series: | Interface relay |
| Temperature Rating (Degrees F): | -40 to 185 deg F |
| Type: | Pre-Assembled Plug-In Relay With Socket |
| Country of origin: | US |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122334 |
| UPC: | 03606489562755 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$22.73 / Each
Quantity:
- Schneider Electric RSB2A080BDPV, Pre-Assembled Plug-In Relay With Socket, Interface relay, 8 A, 2CO 2 Form C Contact Form, IP20 Enclosure, -40 to 185 deg F
RSB2A080BDPV Application
For industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltageRSB2A080BDPV Item Features
- Maximum of 4 Contacts
- Current rating from 3A up to 30A
- Wide choice of control voltage
- Several terminal types available: screw connector, screw clamp and spring/push-in terminal
- 1440 Ohm DC 20 deg C +/- 15 % average coil resistance
- 400 V EN/IEC 60947 ui rated insulation voltage
- 3.6 kV IEC 61000-4-5 uimp rated impulse withstand voltage
- Silver alloy (AgNi) contacts material
- 2000 VA AC224 W DC maximum switching capacity
- 8 A 250 V AC8 A 28 V DC resistive rated load
- 120 mW 10 mA, 12 V minimum switching capacity
- <= 600 cycles/hour under load<= 18000 cycles/hour no-load operating rate
- 30000000 cycles mechanical durability
- 20 ms operating20 ms reset operating time
- 0.45 W DC average coil consumption
- >= 0.1 Uc DC drop-out voltage threshold
- RT I protection category
- Level A test levels
- Any position operating position
RSB2A080BDPV Standards
EN/IEC 61810-1|CSA C22.2 No 14|UL 508IEC 61984|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov|CE|UL Listed|CSA|EACSKU #2415753Part Number #RSB2A080BDPVUNSPSC39122334UPC03606489562755
