Part Number # X20203
SKU # 2422931
Image Disclaimers Message
Brand: Belden
X20203
Belden X20203
Part Number # X20203
SKU # 2422931
$15.10 / Feet
Typical price:$18.73 / Feet
Belden X20203 Key Features
| Brand: | Belden |
|---|---|
| Part Number # : | X20203 |
| SKU #: | 2422931 |
| Conductor Size: | 2 AWG |
| Conductor Type: | Annealed Bare Copper |
| Jacket Color: | Black |
| Jacket Material: | PVC |
| Number of Conductors: | 3 |
| Outside Diameter: | 1.13 in |
| Strands: | 7 |
| Temperature Rating (Degrees F): | 90 deg C |
| Type: | Type MC-HL/XHHW-2 VFD Unshielded |
| Insulation material: | XLPE |
| Manufacturer Name: | Omni Cable |
| UNSPSC: | 26121603 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$15.10 / Feet
Typical price:$18.73 / Feet
Quantity:

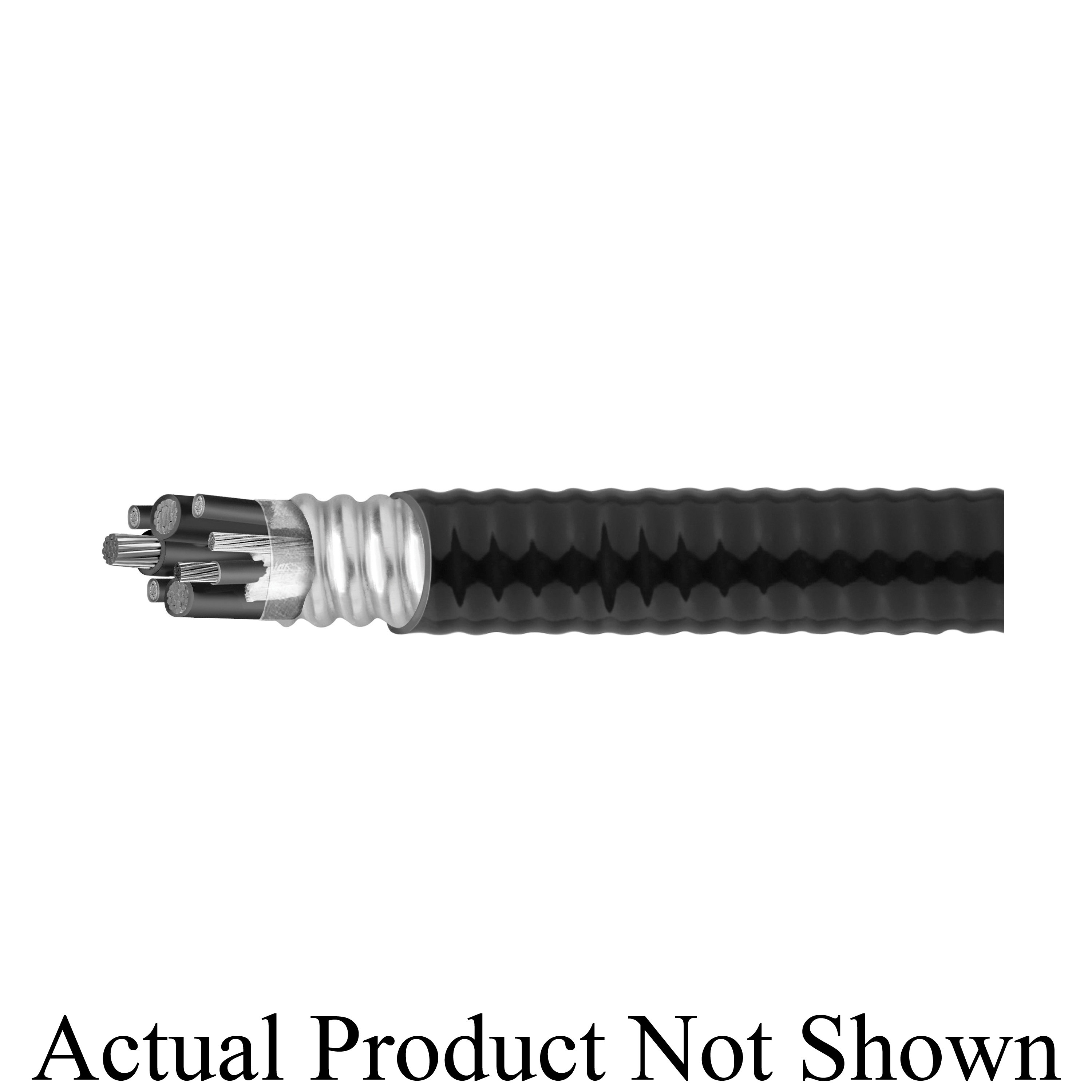

- Omni Cable CCW Armored Cable, Type MC-HL/XHHW-2 VFD Unshielded, 600 V AC, 3 Conductors, Annealed Bare Copper Conductor, 2 AWG Conductor, 1.13 in OD, 7 Strands, XLPE Insulation, PVC Jacket, Black Jacket, 90 deg C
X20203 Application
For use on power or control circuits, for exposure to hazardous locations and VFD applicationsX20203 Item Features
- Bare annealed copper per ASTM B-3, 10 AWG and smaller are compressed class B stranding per ASTM B8, 8 AWG and larger are compact stranding per ASTM B496 conductor
- Cross-linked polyethylene (XLPE) type XHHW per UL 44 insulation
- Impervious, continuously welded and corrugated aluminum alloy sheath armor
- Sunlight and oil-resistant
- https://www.youtube.com/watch?v=AjCOPFQWY5w
X20203 Standards
UL 44/1309/1569/2225/1581 Listed|NEC Article 334SKU #2422931Part Number #X20203UNSPSC26121603UPC
