316-IRBAG
3M 316-IRBAG
Part Number # 316-IRBAG
SKU # 2423356
3M 316-IRBAG Key Features
| Brand: | 3M |
|---|---|
| Part Number # : | 316-IRBAG |
| SKU #: | 2423356 |
| Series: | 316-IR BAG |
| Specifications: | 0.155 in Dia Max Insulation |
| UNSPSC: | 32000000 |
| UPC: | 00054007504191 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
3M 316-IRBAG
Brand: 3M
Part Number: 316-IRBAG
3M, 7000058271, Connector, Pigtail, Series: 316-IR BAG, 16 AWG Wire, Nylon Insulation, 600 V, 105 deg C, Black/White
Additional Description: 3M -7000058271 3M SCOTCHLOK IDC CONNECTOR 316IR 7000058271

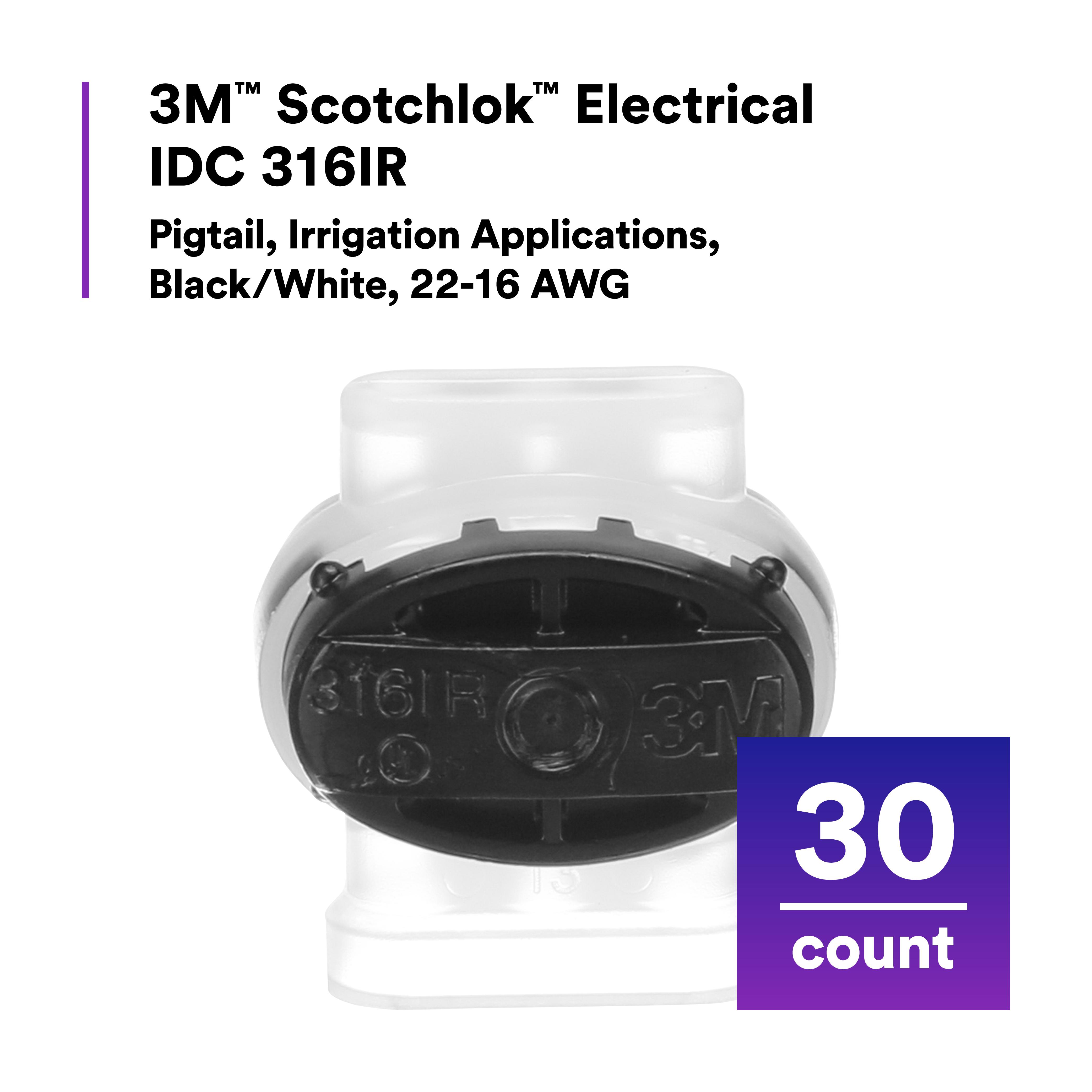

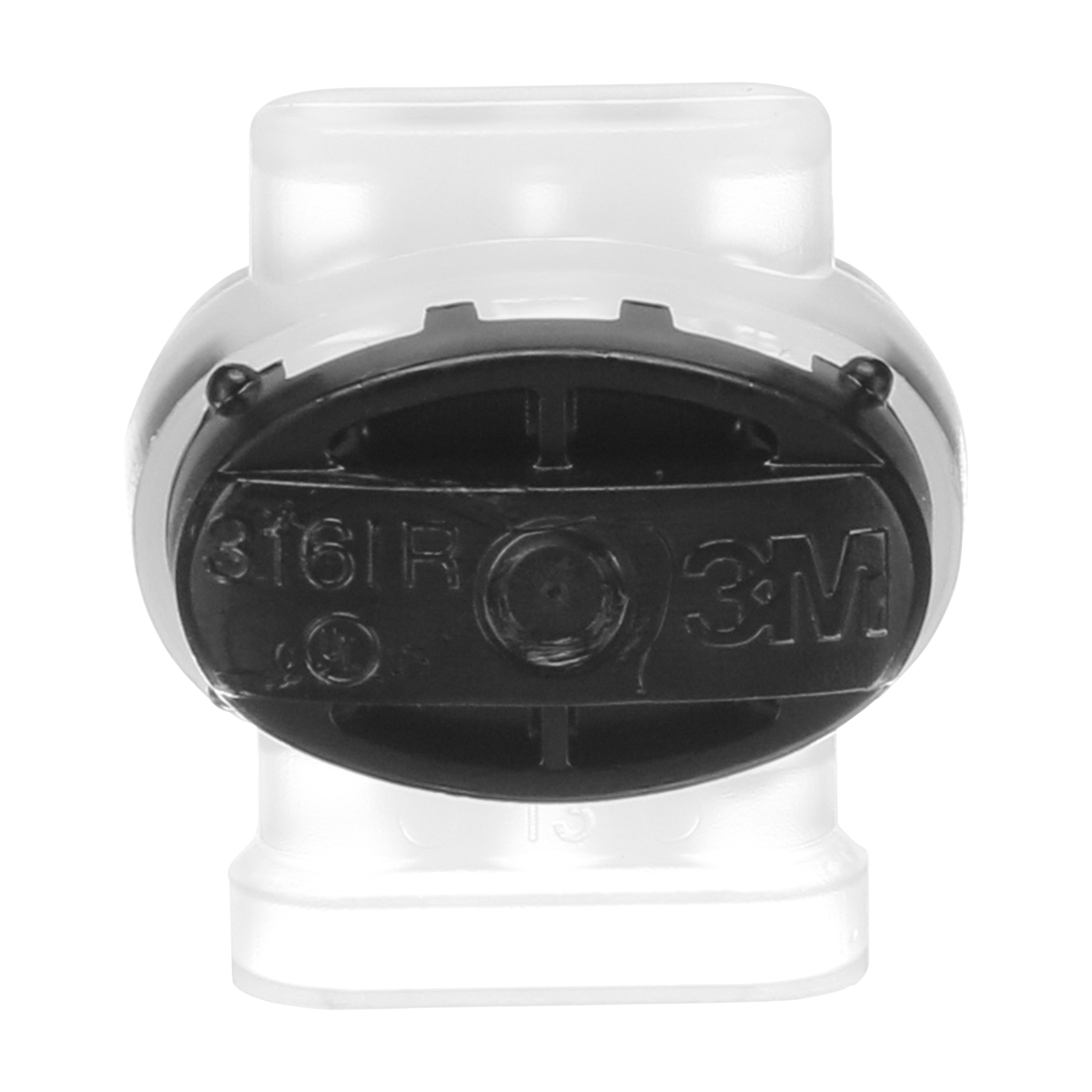

Catalog Description: 3M™ Scotchlok™ Insulation Displacement Connector 316IR is ideal for use with low energy underground circuit wires, sprinkler systems, landscape lighting or other applications requiring moisture resistance. The connector is nylon insulated and used to connect 2 or 3 wires. It is self stripping and moisture resistant.
316-IRBAG Application
Ideal for low energy underground circuit wires, sprinkler systems, irrigation and landscape lighting316-IRBAG Item Features
- Mineral oil-based grease creates a moisture-resistant seal
- Accommodates 16-14 AWG solid/stranded, 12 stranded (outer) and 18 solid/stranded, 20 stranded (inner)
- Operating temperature 221F (105C)
- 600 V maximum
316-IRBAG Standards
UL Listed|RoHS 2011/65/EU CompliantSKU #2423356Part Number #316-IRBAGUNSPSC32000000UPC00054007504191
