Part Number # 1554P2GY
SKU # 2423617
Hammond Manufacturing 1554P2GY Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | 1554P2GY |
| SKU #: | 2423617 |
| NEMA Rating: | NEMA 4/4X/6/6P/12/13 |
| Width: | 120 mm |
| UNSPSC: | MISC |
| UPC: | 00062398030409 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

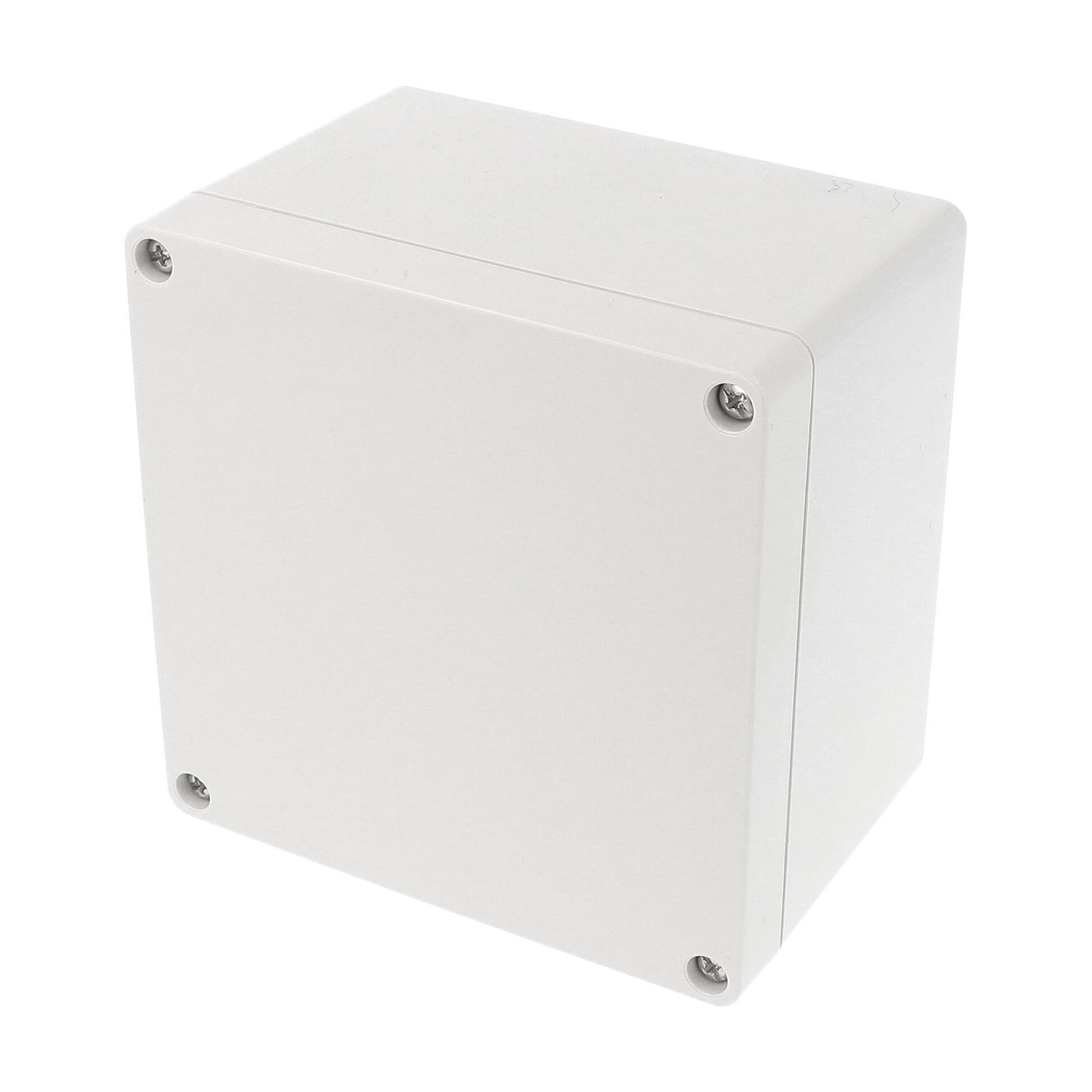

- Hammond, 1554P2GY, Enclosure, 120 mm Length, 120 mm Width, 80 mm Height, NEMA 4/4X/6/6P/12/13 NEMA Rating, Screw Cover, Wall Mounting, Polycarbonate, Light Gray
1554P2GY Application
Ideally suited for mounting printed circuit boards or DIN rail mounted components1554P2GY Item Features
- Gasketed lid with two piece tongue and groove construction provides protection against access of oil, dust and water
- Lid is secured with included M4 stainless steel machine screws which are threaded into corrosion resistant bushings for repetitive assembly and disassembly
- Lid screws are self captivating
- Lid holes are threaded with the first installation of lid screws
SKU #2423617Part Number #1554P2GYUNSPSCMISCUPC00062398030409
Image provided may only be a representation of final product and may include optional equipment
