Part Number # H6U-7NC2-RDNN-NGN
SKU # 2423637
H6U-7NC2-RDNN-NGN
Dialight H6U-7NC2-RDNN-NGN
Part Number # H6U-7NC2-RDNN-NGN
SKU # 2423637
Dialight H6U-7NC2-RDNN-NGN Key Features
| Brand: | Dialight |
|---|---|
| Part Number # : | H6U-7NC2-RDNN-NGN |
| SKU #: | 2423637 |
| Ballast Type: | 0 to 10 VDC Dimming/Integrated Driver |
| Color Rendering Index (CRI): | 80 |
| Dimensions: | 24 in Dia x 20.2 in H |
| Enclosure Type: | NEMA 4X/IP66/IP67 |
| Fixture Wattage: | 484 W |
| Housing Finish: | Gray |
| Lamp Type: | LED |
| Lens Type: | Clear Glass |
| Light Color: | Cool White |
| Light Output: | 149 Lumens/W |
| Lumens: | 72000 Lumens |
| Type: | High Output Narrow Beam Standard |
| Country of origin: | MX |
| Housing material: | Copper-Free Aluminum |
| Mounting type: | Threaded/Pendant |
| Manufacturer Name: | Dialight |
| UNSPSC: | 39112102 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Dialight H6U-7NC2-RDNN-NGN
Brand: Dialight
Part Number: H6U-7NC2-RDNN-NGN
Additional Description: DIAL-H6U-7NC2-RDNN-NGN 120/277 VAC 72K NC UL DIM 80 CRI 5000K
H6U-7NC2-RDNN-NGN Application
Indoor/Outdoor Industrial ApplicationsH6U-7NC2-RDNN-NGN Item Features
- Up-light diffuser accessory projects light on the ceiling where desired
- Superior dual coat finish with sealed polyester topcoat
- -40 to 149 deg F wide operating temperature range
- Dimmable to <5%
H6U-7NC2-RDNN-NGN Standards
UL 1598|UL 1598/A for Wet Locations|CSA C22.2 No. 250 for Wet Locations|FCC Title 47 Subpart B Section 15 Class A|IEC 61000-3-2|IEEE C62.41SKU #2423637Part Number #H6U-7NC2-RDNN-NGNUNSPSC39112102UPC

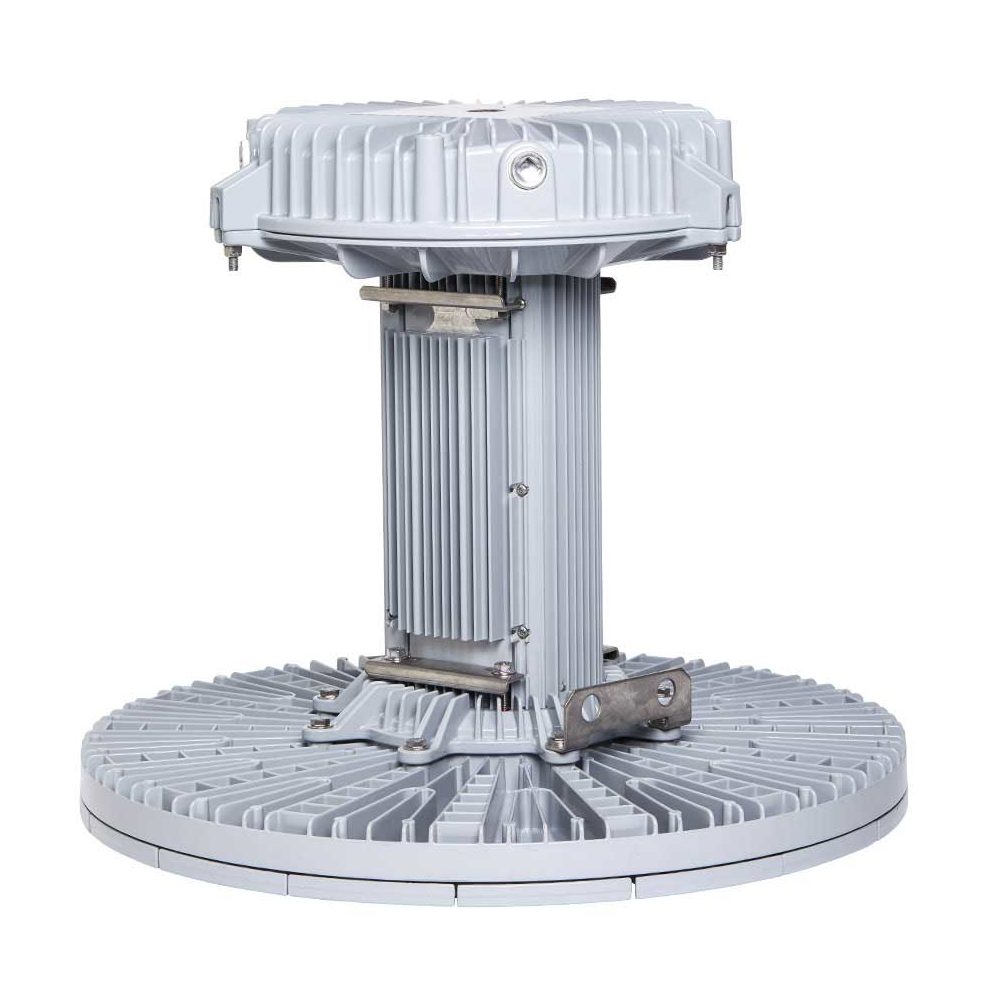

Image provided may only be a representation of final product and may include optional equipment
