Part Number # SPDN-A120-1P
SKU # 2423785
Image Disclaimers Message
Brand: Littelfuse
SPDN-A120-1P

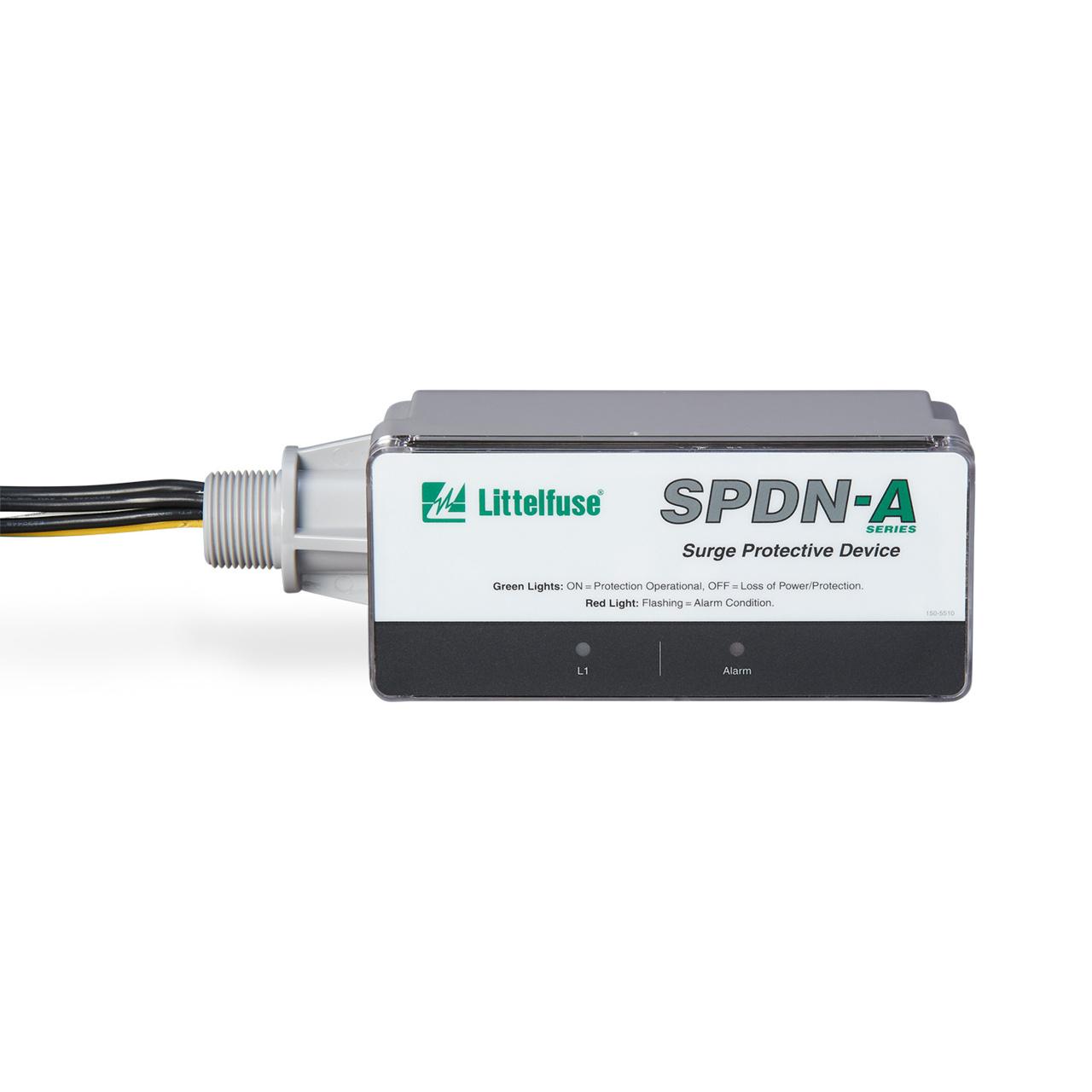

Littelfuse SPDN-A120-1P
Part Number # SPDN-A120-1P
SKU # 2423785
Littelfuse SPDN-A120-1P Key Features
| Brand: | Littelfuse |
|---|---|
| Part Number # : | SPDN-A120-1P |
| SKU #: | 2423785 |
| Dimensions: | 2.75 in H x 7.95 in W x 3.06 in D |
| Electrical Ratings: | 120 V, 20 kA |
| Frequency Rating: | 50/60 Hz |
| Phase: | 1 |
| Series: | SPDN-A |
| Short Circuit Current Rating (kA): | 200 kA |
| Specifications: | < 25 ns Response Time |
| Country of origin: | SI |
| Material: | Polycarbonate |
| Manufacturer Name: | Littelfuse |
| UNSPSC: | 39121610 |
| UPC: | 00079458294705 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
- Littelfuse, SPDN-A120-1P, Surge Protective Devices, Series: SPDN-A, 120 V, 20 kA Electrical Rating, 50/60 Hz Frequency, 200 kA Short Circuit, 1 ph, Specifications: < 25 ns Response Time, Polycarbonate, 2.75 in H x 7.95 in W x 3.06 in D Dimensions, Import
SPDN-A120-1P Application
For Construction, Food and Beverage, HVAC/R, Light Industrial, Oil and Gas, Water and WastewaterSPDN-A120-1P Item Features
- More direct modes of protection (L-N, L-G, N-G) in a smaller package
- UL 1283 EMI/RFI filtering 50 dB from 10 kHz to 100 MHz
- Capability to clamp and withstand high-energy transients
- Stacked Metal Oxide Varistor (MOV) design
- Installs on the load side of the circuit breaker
- Thermally protected MOV
- External LED indicator
- Compact footprint
SPDN-A120-1P Standards
UL Type 2|cUL Listed|RoHS CompliantSKU #2423785Part Number #SPDN-A120-1PUNSPSC39121610UPC00079458294705
