Part Number # MNG14-6FLX
SKU # 2425975
Image Disclaimers Message
MNG14-6FLX

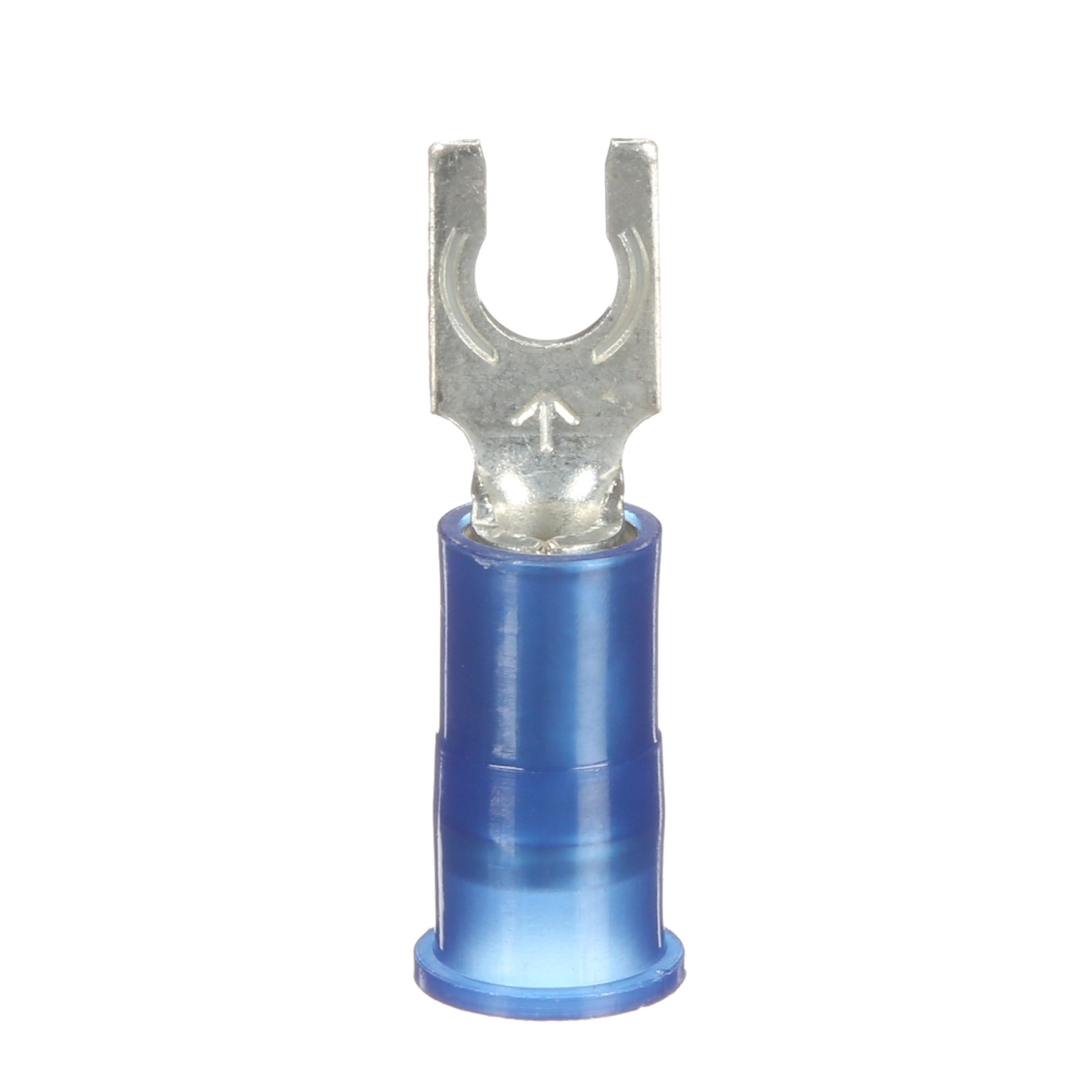

3M MNG14-6FLX
Part Number # MNG14-6FLX
SKU # 2425975
$113.00 / 100Each
Typical price:$143.00 / Each
3M MNG14-6FLX Key Features
| Brand: | 3M |
|---|---|
| Part Number # : | MNG14-6FLX |
| SKU #: | 2425975 |
| Temperature Rating (Degrees F): | -40 to 221 deg F |
| Tongue Size: | 0.24 in W x 0.03 in THK |
| Tongue Type: | Fork |
| Type: | Insulated Locking |
| Length: | 0.89 in |
| Material: | Electrolytic Copper/Nylon |
| Barrel Size: | 0.09 in ID x 0.25 in L |
| Barrel Type: | Butted Seam |
| Conductor Size: | 16 to 14 AWG |
| Conductor Type: | Stranded Copper |
| Country of origin: | US |
| Finish: | Tin Plated |
| Manufacturer Name: | 3M |
| Specifications: | 0.17 in Dia Max Insulation, 1/4 in Clearance |
| UNSPSC: | 31200000 |
| UPC: | 00051128588024 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$113.00 / 100Each
Typical price:$143.00 / Each
Quantity:
- Scotchlok, 7000133362, Locking Fork, Insulated, 16 to 14 AWG Conductor, #6 Stud, 0.89 in Length, Butted Seam Barrel, 0.09 in ID x 0.25 in L Barrel, Fork Tongue, 0.24 in W x 0.03 in THK Tongue, 600 to 1000 V AC, Specifications: 0.17 in Dia Max Insulation, 1/4 in Clearance, -40 to 221 deg F, Electrolytic Copper/Nylon, Tin Plated, Blue
MNG14-6FLX Application
Building Wire, Fixtures or Luminaires and Signs ApplicationsMNG14-6FLX Item Features
- Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- Funnel-designed, seamless brass sleeve offers easy insertion of wires
- Spring-like tongue firmly fits around the stud
- Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
- Withstands a temperature range of -40 to 221 deg F (-40 to 105 deg C)
MNG14-6FLX Standards
UL Recognized File No. LR22190|CSA Certified|RoHS Compliant|UL File No. E23438SKU #2425975Part Number #MNG14-6FLXUNSPSC31200000UPC00051128588024
