Brand: 3M
MNG18-6FLX
3M MNG18-6FLX
Part Number # MNG18-6FLX
SKU # 2425976
$113.00 / 100Each
Typical price:$143.00 / Each
3M MNG18-6FLX Key Features
Brand: 3M
Part Number # MNG18-6FLX
SKU #2425976
Temperature Rating (Degrees F): -40 to 221 deg F
Tongue Size: 0.25 in W x 0.03 in THK
Tongue Type: Fork
Type: Insulated Locking
Voltage Rating: 600 to 1000 VAC
Color: Red
Length: 0.87 in
Material: Electrolytic Copper/Nylon
Barrel Size: 0.07 in ID x 0.25 in L
Barrel Type: Butted Seam
Conductor Size: 22 to 18 AWG
Conductor Type: Stranded Copper
Country of origin: US
Finish: Tin Plated
Manufacturer Name: 3M
Specifications: 0.145 in Dia Max Insulation, 1/4 in Clearance
UNSPSC: 31200000
UPC: 00051128588048
$113.00 / 100Each
Typical price:$143.00 / Each
SKU # 2425976
Part Number # MNG18-6FLX
3M MNG18-6FLX
Brand: 3M
Part Number: MNG18-6FLX
Additional Description: 3M -7100057498 3M Scotchlok Nylon Insulated with Insulation Grip Locking Forks 7100057498

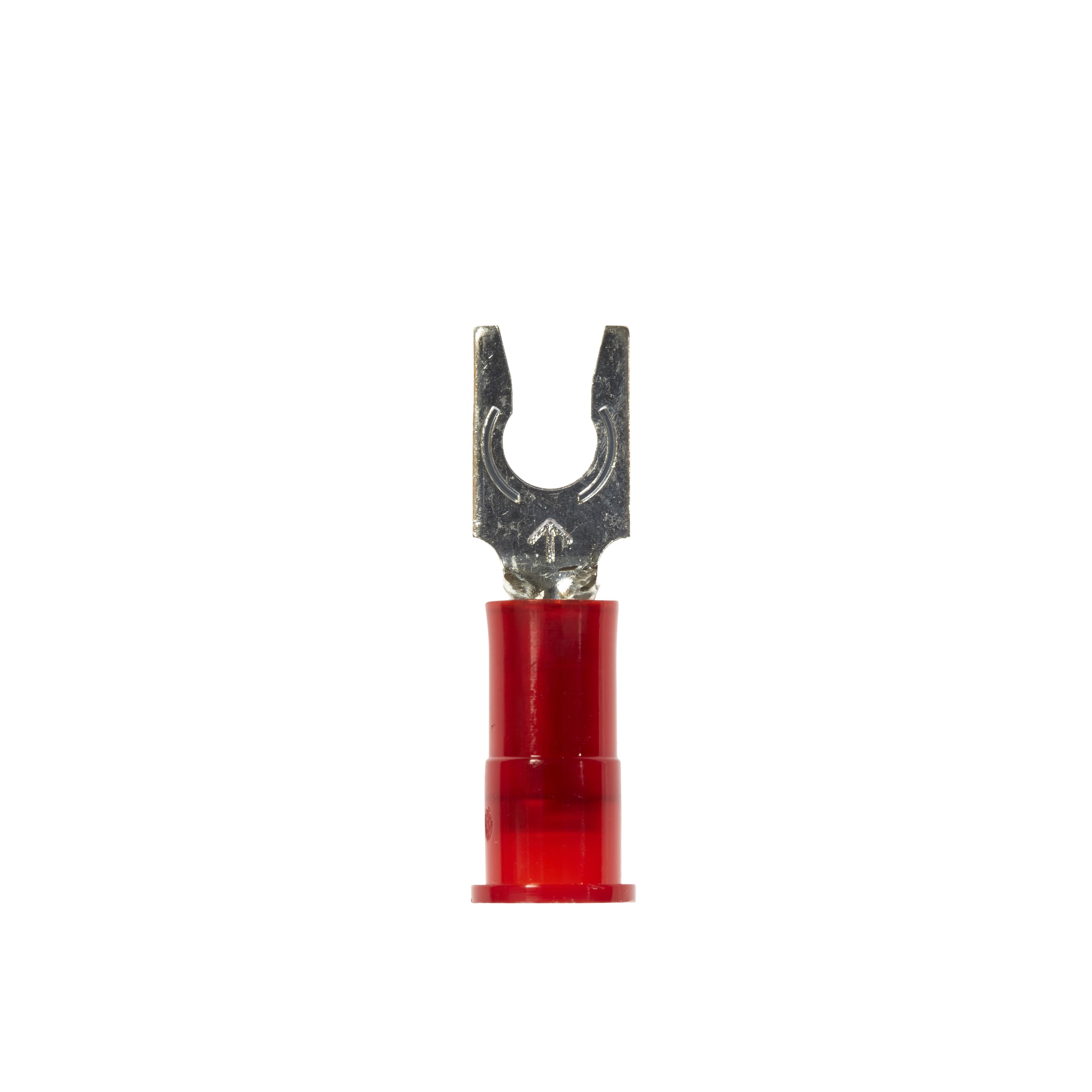

Catalog Description: 3M™ Scotchlok™ Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
MNG18-6FLX Application
Building Wire, Fixtures or Luminaires and Signs ApplicationsMNG18-6FLX Item Features
- Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- Funnel-designed, seamless brass sleeve offers easy insertion of wires
- Spring-like tongue firmly fits around the stud
- Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
- Withstands a temperature range of -40 to 221 deg F (-40 to 105 deg C)
MNG18-6FLX Standards
UL Recognized File No. LR22190|CSA Certified|RoHS Compliant|UL File No. E23438SKU #2425976Part Number #MNG18-6FLXUNSPSC31200000UPC00051128588048
