Part Number # 7990000
SKU # 2426109
Brand: Rittal
7990000
Rittal 7990000
Part Number # 7990000
SKU # 2426109
$78.74 / Each
Typical price:$91.86 / Each
Rittal 7990000 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 7990000 |
| SKU #: | 2426109 |
| Dimensions: | 25 mm H x 119 mm W x 119 mm D |
| Specifications: | 24 V DC Rated Operating Voltage |
| Suitable For Use With: | Retrofitting to fan modules 5503.010, 5503.020 and 5503.025 |
| Material: | Plastic |
| Manufacturer Name: | Rittal |
| UNSPSC: | 40101604 |
| UPC: | 63988940281779663454 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$78.74 / Each
Typical price:$91.86 / Each
Quantity:
Rittal 7990000
Brand: Rittal
Part Number: 7990000
Additional Description: RTL -7990000 SK FAN EXPANSION KIT NON-CANCELABLE, NON-RETURNABLE

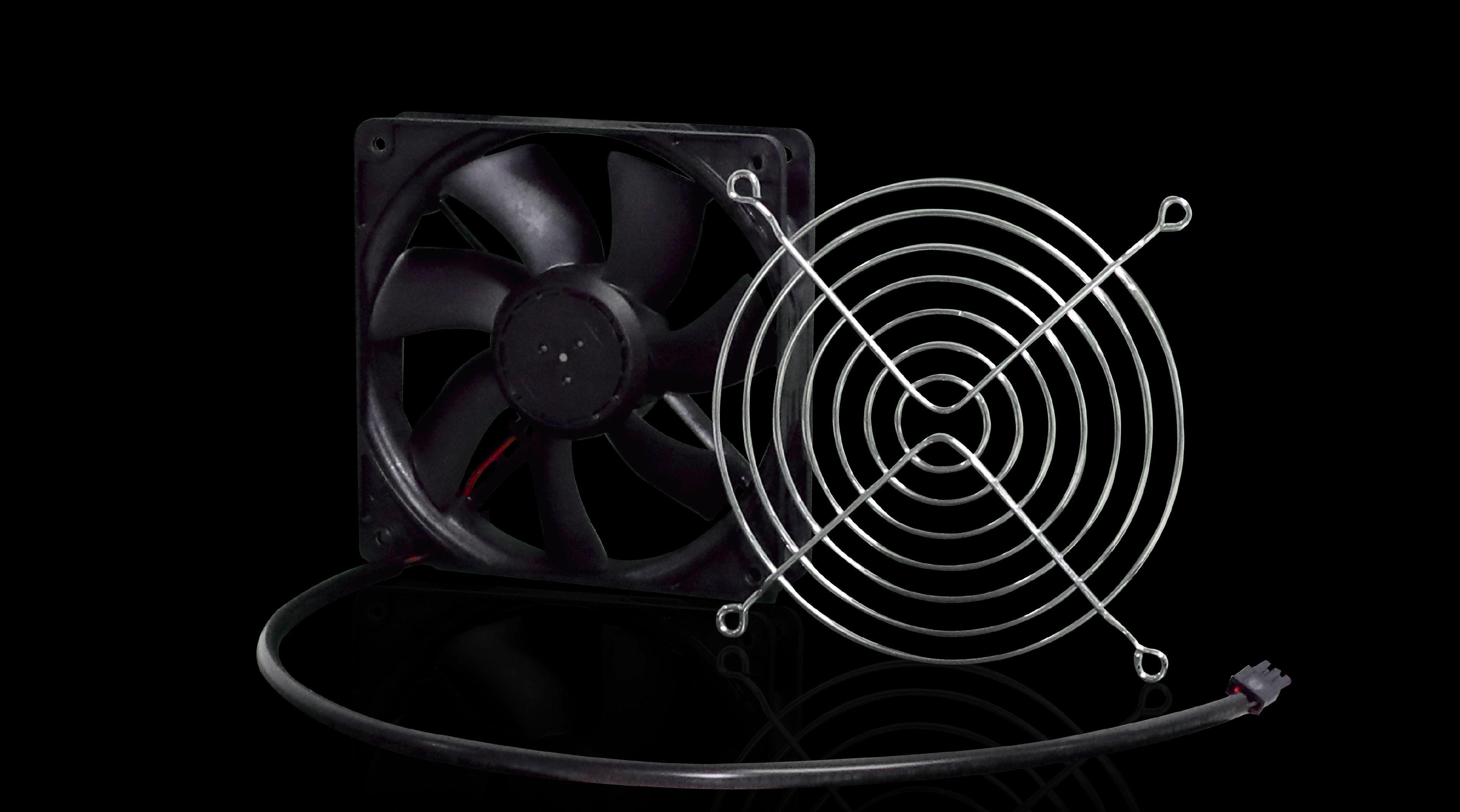

Catalog Description: Fan expansion kit for VX IT, TS IT
7990000 Application
For VX IT, TS IT Series7990000 Includes
Fan|Protective grille|Assembly parts|Installation and Short Users Guide7990000 Item Features
- Complete, ready-to-connect solution
- Energy-efficient speed control with preset characteristic curve
- International approvals and multi-voltage capability for worldwide use
- Reduction in the specified air throughput to 150 m3/h at 25 Pa counterpressure
- 44 dB(A) Noise level (at operating point)
- 7.7 W Power consumption
- 150 m3/h Air throughput (at operating point)
- 0.32 A At 50 & 60 Hz Rated current
- IP 20 protection category to IEC 60 529
7990000 Standards
ETIM 7.0|ECLASS 8.0SKU #2426109Part Number #7990000UNSPSC40101604UPC63988940281779663454
Image provided may only be a representation of final product and may include optional equipment
