1149940000
Weidmuller 1149940000
Part Number # 1149940000
SKU # 2428211
$64.61 / 12Each
Typical price:$74.38 / Each
Weidmuller 1149940000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1149940000 |
| SKU #: | 2428211 |
| Connector Type: | Male Header |
| Dimensions: | 11.7 mm H x 106.32 mm W x 12 mm D |
| Number of Positions: | 19 |
| Series: | BL/SL 5.08 |
| Temperature Rating (Degrees F): | -50 to 100 deg C |
| Termination Type: | THT Solder |
| Type: | Board Connection |
| Contact material: | CuMg |
| Country of origin: | DE |
| Housing material: | Polyamide GF |
| Mounting type: | PCB |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 31163101 |
| UPC: | 04032248936076 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$64.61 / 12Each
Typical price:$74.38 / Each
Quantity:
- Weidmuller, 1149940000, Basicmate Signal Connector, Board Connection, Series: BL/SL 5.08, 19 Positions, 1 Rows, 5.08 mm Pitch/Row Spacing, PCB Mounting, 300, 400 V, Male Header Connector, THT Solder Termination, CuMg Contact, Polyamide GF Housing Material, -50 to 100 deg C, Orange, 11.7 mm H x 106.32 mm W x 12 mm D Dimensions
1149940000 Item Features
- Pin headers made from glass-fibre-reinforced plastic with 90 deg wire outlet; optimised for wave soldering
- The flange variant (F) can be screwed onto the respective counter piece or the circuit board
- There is no need for an extra screw to connect the circuit board when the solder flange (LF) version is used
- This also protects the solder points from mechanical strain
- All pin headers can be manually coded or ordered pre-coded
1149940000 Standards
RoHS Compliant|cURus Listed|EAC CertifiedSKU #2428211Part Number #1149940000UNSPSC31163101UPC04032248936076

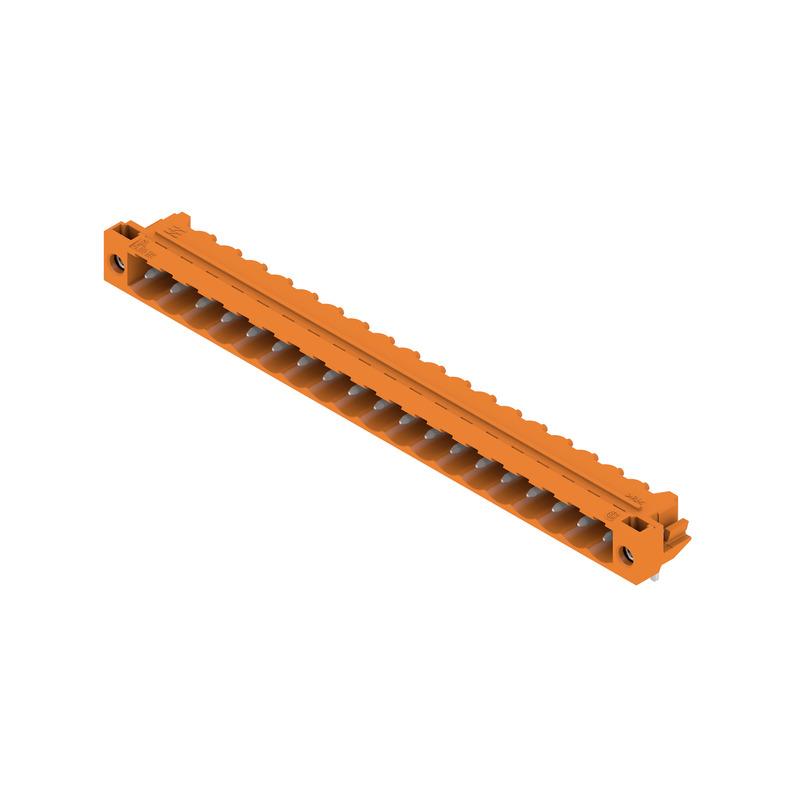

Image provided may only be a representation of final product and may include optional equipment
