SSL1D03BDPR

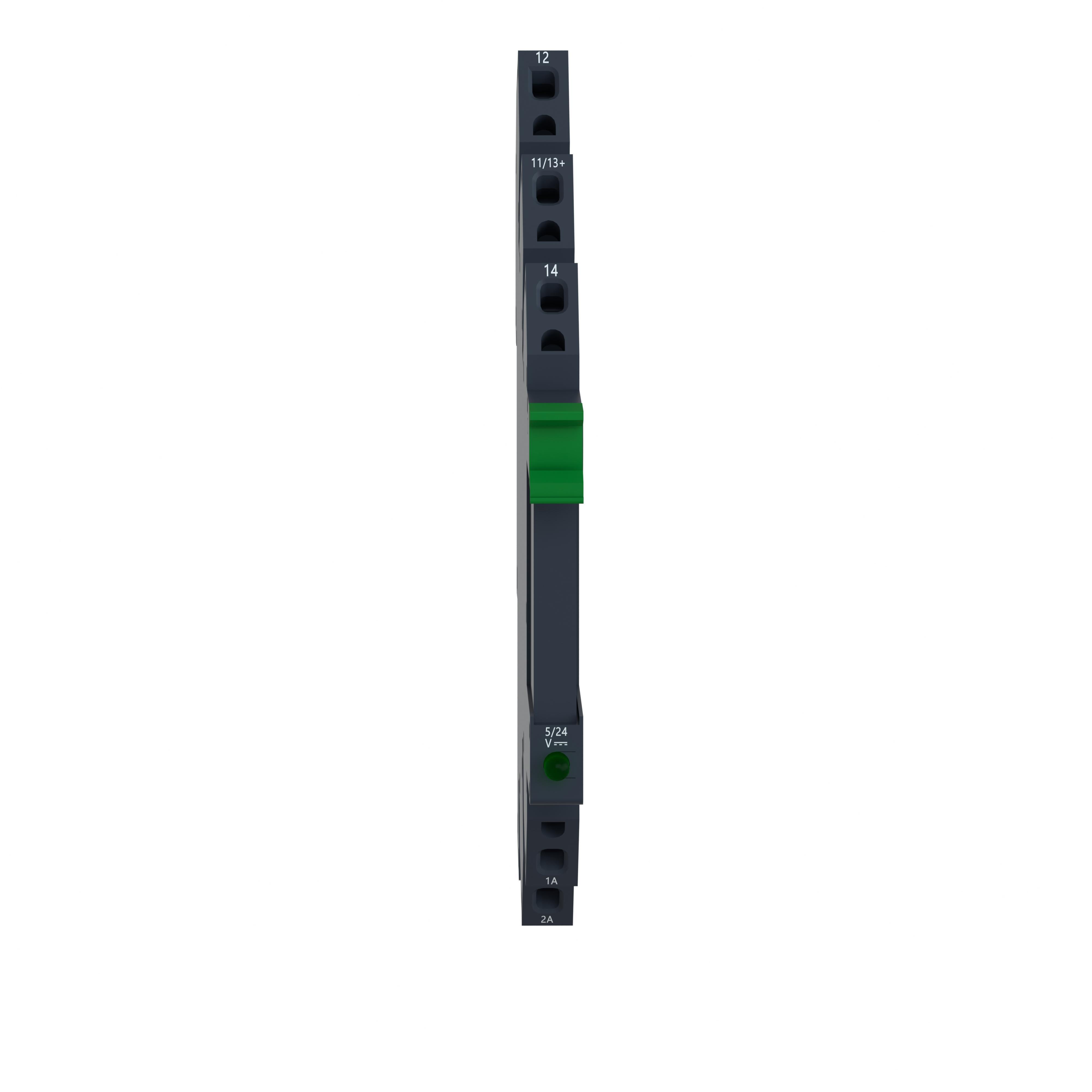

Schneider Electric SSL1D03BDPR
Part Number # SSL1D03BDPR
SKU # 2429721
$1322.10 / 30Each
Schneider Electric SSL1D03BDPR Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | SSL1D03BDPR |
| SKU #: | 2429721 |
| Amperage Rating: | 3.5 A |
| Coil Voltage: | 16 to 30 VDC |
| Contact Form: | 1NO 1 Form A |
| Dimensions: | 4.12 in H x 0.24 in W x 3.13 in D |
| Enclosure Type: | IP20 |
| Series: | SSL Series |
| Temperature Rating (Degrees F): | -4 to 158 deg F |
| Terminal Type: | Flexible Cable |
| Type: | Solid State Relay |
| Country of origin: | ID |
| Mounting type: | Socket |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122333 |
| UPC: | 03606489563059 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1322.10 / 30Each
Quantity:
- Schneider Electric SSL1D03BDPR, Solid State Relay, SSL Series, 3.5 A, 16 to 30 VDC Coil, 1NO 1 Form A Contact Form, Socket Mounting, Flexible Cable Terminal, IP20 Enclosure, -4 to 158 deg F, 4.12 in H x 0.24 in W x 3.13 in D Dimensions
SSL1D03BDPR Application
For both AC and DC switching applications, For locking or releasing the relay, For packaging, HVAC, injection molding, textile machines, medical equipment, and heating controlSSL1D03BDPR Item Features
- Complete Solution - 1 & 3 Phase, Slim, modular DIN rail and panel mount offer
- Competitive & innovative solid-state switching solution
- Simplified - Easy product selection with consistent & easy to understand product nomenclature
- Enhanced product - improve end user experience
- 1 to 24 V DC output voltage
- 10 to 40 N.m clamping force
- 1.5 pF input/output capacitance unbalance
- 2.67 kOhm input impedance
- 001 to 3.5 A load current
- 30 V DC tansient overvoltage
- 001 mA off-state maximum leakage current
- 0.25 ms (turn-on)0.12 ms (turn-off) response time
- III overvoltage category
- V0 conforming to UL 94 flame retardance
- 2500 V for input/output dielectric strength
SSL1D03BDPR Standards
PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov|IEC 60950-1|IEC 61000|IEC 62314|IEC 61984|EN 61984|UL Listed|CSA|CE|UL 508|CSA22.2 No. 14-10|GOSTSKU #2429721Part Number #SSL1D03BDPRUNSPSC39122333UPC03606489563059
