Part Number # EDS21273HNOFAU
SKU # 2429770
Image Disclaimers Message
EDS21273HNOFAU

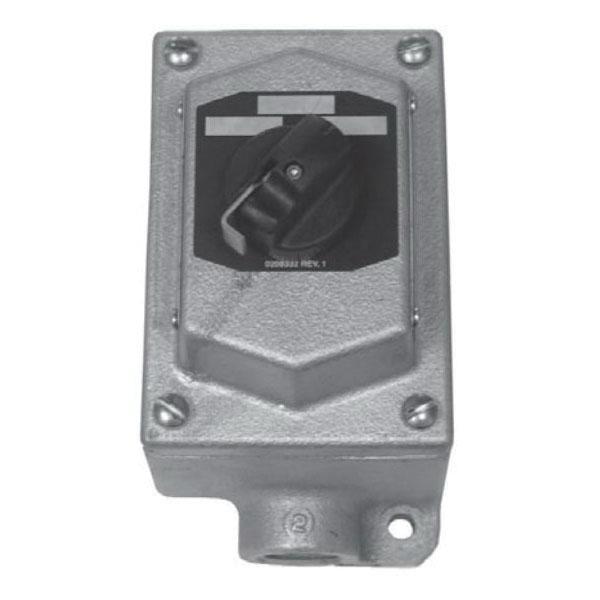

Crouse Hinds EDS21273HNOFAU
Part Number # EDS21273HNOFAU
SKU # 2429770
$631.92 / Each
Typical price:$834.14 / Each
Crouse Hinds EDS21273HNOFAU Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | EDS21273HNOFAU |
| SKU #: | 2429770 |
| Dimensions: | 3-1/2 in W |
| Finish: | Electro-Galvanized/Aluminum Acrylic Painted |
| Legend: | HAND/OFF/AUTOMATIC |
| NEMA Rating: | NEMA 3/7BCD/9EFG |
| Series: | EDS |
| Type: | Dead End Factory Sealed |
| Country of origin: | US |
| Material: | Feraloy Iron Alloy |
| Manufacturer Name: | Eaton |
| UNSPSC: | MISC |
| UPC: | 03078227477980 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$631.92 / Each
Typical price:$834.14 / Each
Quantity:
- Crouse-Hinds Selector Switch Control Station, Dead End Factory Sealed, Series: EDS, 600 V AC, Maintained Contact Mode, HAND/OFF/AUTOMATIC Legend, NEMA 3/7BCD/9EFG, Feraloy Iron Alloy, Electro-Galvanized/Aluminum Acrylic Painted, 3-1/2 in W Dimensions
EDS21273HNOFAU Application
Chemical Plants, Oil and Gas Refineries, Paint and Varnish Manufacturing Plants, Gasoline Bulk Loading, Terminals, Grain Elevators, Grain ProcessingEDS21273HNOFAU Item Features
- Factory sealed enclosures are used to prevent arcing of enclosed device from causing ignition of a hazardous atmosphere external to the enclosure, in conjunction with magnetic starters or contactors for remote control of motors
- Reduce installation problems
- Eliminate external seals
- Lower installation costs
- Improve safety
- Are used with general purpose snap and pushbutton type switches
- Standard neoprene covers for front operated pushbuttons, prevents accumulation of dirt and entrance of water around operating shafts
- Mounting lugs and taper tapped hubs with integral bushings
- Large machine screws for fastening covers to bodies
- Lockout provisions on front operated pushbutton (marked "STOP" and "OFF") and selector switch covers
- Lockout hole for padlock having 1/4 in hasp is provided when used with covers for front lever and side rocker type operation
- Close tolerances in machining of wide, mating flanges and journalled shafts and bearings for front button operation, produces flametightness of enclosure joints
- On enclosures with front lever and side rocker type operating handles, threaded type shafts and bushings are used to ensure flametightness
- Explosionproof, dust-ignitionproof, raintight
- 3/4 in hub
- 2 circuits
- 1 Gang
- 3-position
- Heavy-duty
- ED11 replacement contact blocks
EDS21273HNOFAU Standards
Class I, Division 1/2, Groups B/C/D, Class II, Division 1, Groups E/F/G, Class II, Division 2, Groups F/G, Class III|NEMA 3/7B/7C/7D/9E/9F/9GSKU #2429770Part Number #EDS21273HNOFAUUNSPSCMISCUPC03078227477980
