Part Number # 1205-1/2""X36YD
SKU # 2430343
Image Disclaimers Message
1205-1/2""X36YD

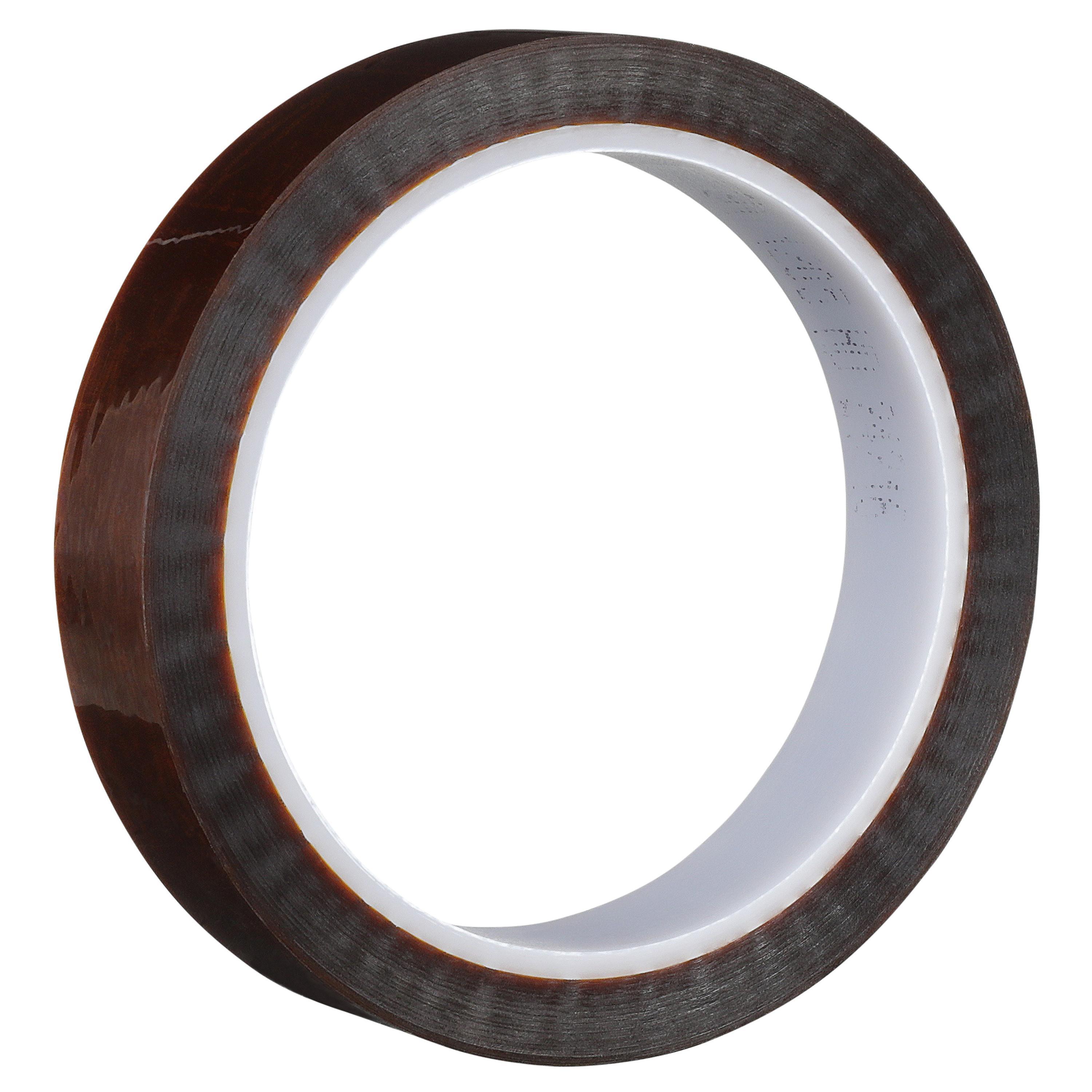

3M 1205-1/2""X36YD
Part Number # 1205-1/2""X36YD
SKU # 2430343
$694.26 / 18Each
Typical price:$881.46 / Each
3M 1205-1/2""X36YD Key Features
| Brand: | 3M |
|---|---|
| Part Number # : | 1205-1/2""X36YD |
| SKU #: | 2430343 |
| Backing Material: | Polyimide Film |
| Maximum Operating Temperature: | 311 deg F |
| Minimum Operating Temperature: | -40 deg F |
| Series: | 1205 |
| Thickness: | 3 mil, 3.2 mil |
| Type: | Electrical, High Performance Log Roll Printed |
| Color: | Amber |
| Country of origin: | US |
| Dielectric strength: | 7500 V, >7500 V |
| Length: | 36 yd |
| Width: | 0.5 in, 1/2 in |
| Manufacturer Name: | 3M |
| UNSPSC: | 31201500 |
| UPC: | 00051138495381 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$694.26 / 18Each
Typical price:$881.46 / Each
Quantity:
- 3M, 7000132703, Tape, Electrical, 36 yd Length, 0.5 in Width, 3.2 mil Thickness, Amber, Acrylic Adhesive, Polyimide Film Backing, 7500 V Dielectric Strength, 311 deg F Maximum Operating, Specifications Met: RoHS 211/65/EU/UL Recognized
1205-1/2""X36YD Application
For Insulation1205-1/2""X36YD Item Features
- Highly conformable with a pressure-sensitive, acrylic adhesive
- Flame-retardant and has polyimide backing
- Suitable for use as wave solder masking tape in a printed circuit board assembly
- Withstands a temperature rating of -40deg C to 155deg C (-40deg F to 311deg F)
1205-1/2""X36YD Standards
UL Listed|RoHS CompliantSKU #2430343Part Number #1205-1/2""X36YDUNSPSC31201500UPC00051138495381
