Part Number # 193961.1000
SKU # 2431908
Image Disclaimers Message
LUTZE 193961.1000 Key Features
| Brand: | LUTZE |
|---|---|
| Part Number # : | 193961.1000 |
| SKU #: | 2431908 |
| Conductor Size: | 27 to 22 AWG |
| Jacket Color: | Orange |
| Jacket Material: | TPE |
| Number of Conductors: | 6 |
| Outside Diameter: | 24.6 mm |
| Resistance: | ≥500 MOhm |
| Temperature Rating (Degrees F): | -40 to 90 deg C |
| Type: | UV-Resistant |
| Country of origin: | US |
| Insulation material: | PVC/Nylon |
| Length: | 10 m |
| Manufacturer Name: | LUTZE Inc |
| UNSPSC: | 26121630 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

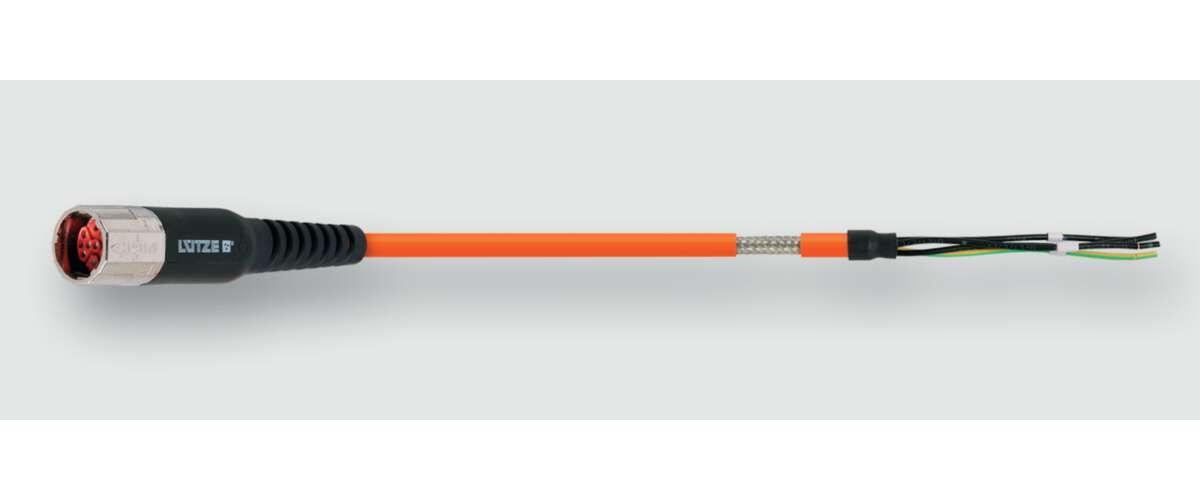

- LUTZE, 193961.1000, Servo Cable, UV-Resistant, 600/1000 V, 6 Conductors, 27 to 22 AWG Conductor, 24.6 mm OD, 10 m Length, ≥500 MOhm Resistance, PVC/Nylon Insulation, TPE Jacket, Orange Jacket, -40 to 90 deg C
193961.1000 Application
Especially for industrial environments in mechanical and system engineering, Reinforced insulation with additional relief layer, TC-ER for use in machines and open cable ducts, In dry, damp and wet rooms193961.1000 Item Features
- Very suitable for extreme operating conductions and high interference signals
- Connecting lead especially for frequency converters and servo drives in machine and plant construction, transport and conveyor technology
- Especially for industrial environments in mechanical and system engineering
- Easy installation
- Servo cable for Allen-Bradley drives
- Largely resistant to mineral and vegetable-based cutting oils
- In dry, moist and wet environment
- Silicone and talcum free
- No minimum order quantity
- All intermediate lengths in steps of 0.5 m are available within a short time
- When ordering, please specify serial number and length key
- Additional types on request
- High active and passive interference resistance (EMC)
193961.1000 Standards
UL Flexible Motor Supply Cable|UL Type WTTC 1000 V|UL Type TC-ER|MTW 600 V|UL AWM Style 20328|RoHS|REACH|Class 1 Div. 2 per NEC Art. 336/392/501|C(UL) TC and CIC FT4|UL 1277|Oil Res I and II|NFPA 79SKU #2431908Part Number #193961.1000UNSPSC26121630UPC
