Part Number # 193959.1000
SKU # 2431911
Image Disclaimers Message
LUTZE 193959.1000 Key Features
| Brand: | LUTZE |
|---|---|
| Part Number # : | 193959.1000 |
| SKU #: | 2431911 |
| Jacket Color: | Green |
| Jacket Material: | TPE |
| Number of Conductors: | 10 |
| Outside Diameter: | 9.9 mm |
| Resistance: | ≥200 MOhm |
| Temperature Rating (Degrees F): | -40 to 90 deg C |
| Type: | UV-Resistant |
| Country of origin: | US |
| Insulation material: | PVC |
| Length: | 10 m |
| Manufacturer Name: | LUTZE Inc |
| UNSPSC: | 26121630 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

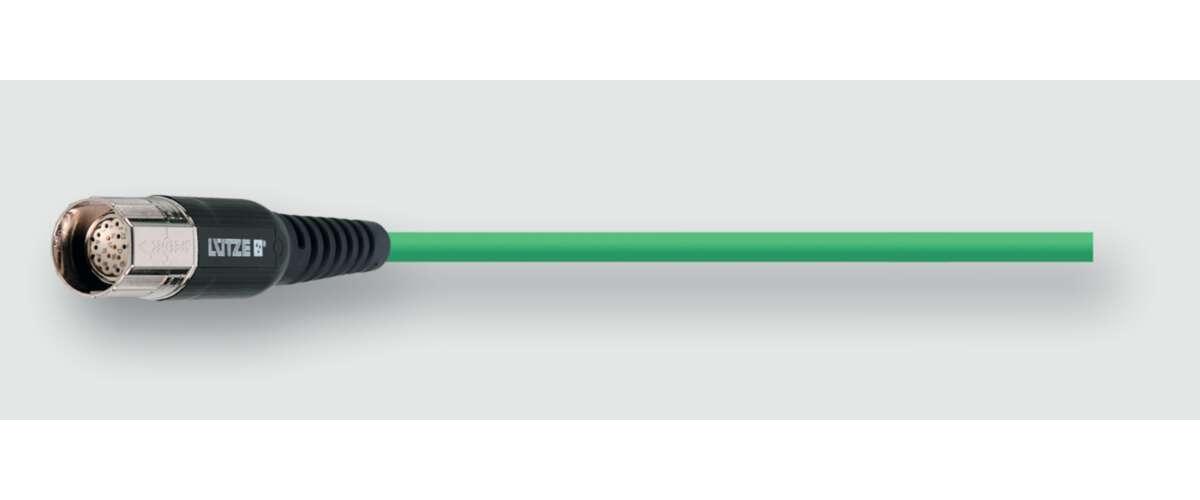

- LUTZE, 193959.1000, Servo Cable, UV-Resistant, 300/600 V, 10 Conductors, 9.9 mm OD, 10 m Length, ≥200 MOhm Resistance, PVC Insulation, TPE Jacket, Green Jacket, -40 to 90 deg C
193959.1000 Application
For Feedback cables for Allen-Bradley drives, Very suitable for extreme operating conditions and high interference signals, In dry, damp and wet rooms, Especially for industrial environments, machines and plants193959.1000 Item Features
- Specially developed TPE jacket for superior oil-resistance
- Especially for industrial environments in mechanical and system engineering
- Easy installation
- Silicone and talcum free
- When ordering, please specify serial number and length key
- Additional types on request
- In dry, damp and wet environment
- No minimum order quantity
- All intermediate lengths in steps of 0.5 m are available within a short time
- Feedback cables for Allen-Bradley drives
- High active and passive interference resistance (EMC)
- Resistant to most mineral and vegetable-based cutting oils
- Very suitable for extreme operating conditions and high interference signals
193959.1000 Standards
PLTC-ER|NEC 725/760/800 Class 1 Div. 1 per NEC|CE|cULus|cURus|NFPA 79|UL 1581|RoHS compliantSKU #2431911Part Number #193959.1000UNSPSC26121630UPC
