Part Number # CH221DU
SKU # 2432459
CH221DU
Bussmann CH221DU
Part Number # CH221DU
SKU # 2432459
Bussmann CH221DU Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | CH221DU |
| SKU #: | 2432459 |
| Amperage Rating: | 125 A |
| Dimensions: | 36 mm L x 123 mm W x 102 mm H |
| Fuse Diameter: | 22 mm |
| Fuse Length: | 58 mm |
| Number of Poles: | 1 |
| Suitable For Use With: | Standard Cylindrical Fuse-Links and FW Type Ferrule Fuse-Links |
| Temperature Rating (Degrees F): | -20 to 70 deg C |
| Type: | Low Voltage Cylindrical |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121606 |
| UPC: | 00051712685375 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann CH221DU
Brand: Bussmann
Part Number: CH221DU

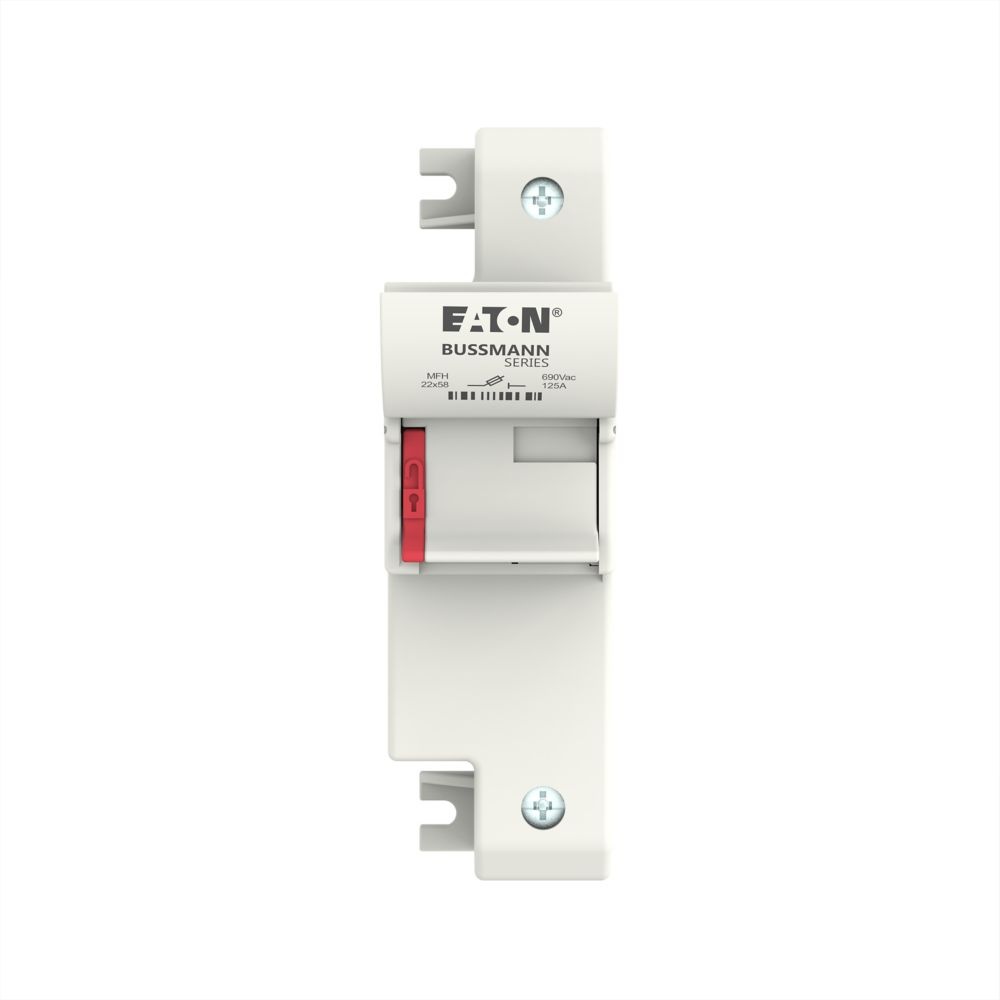

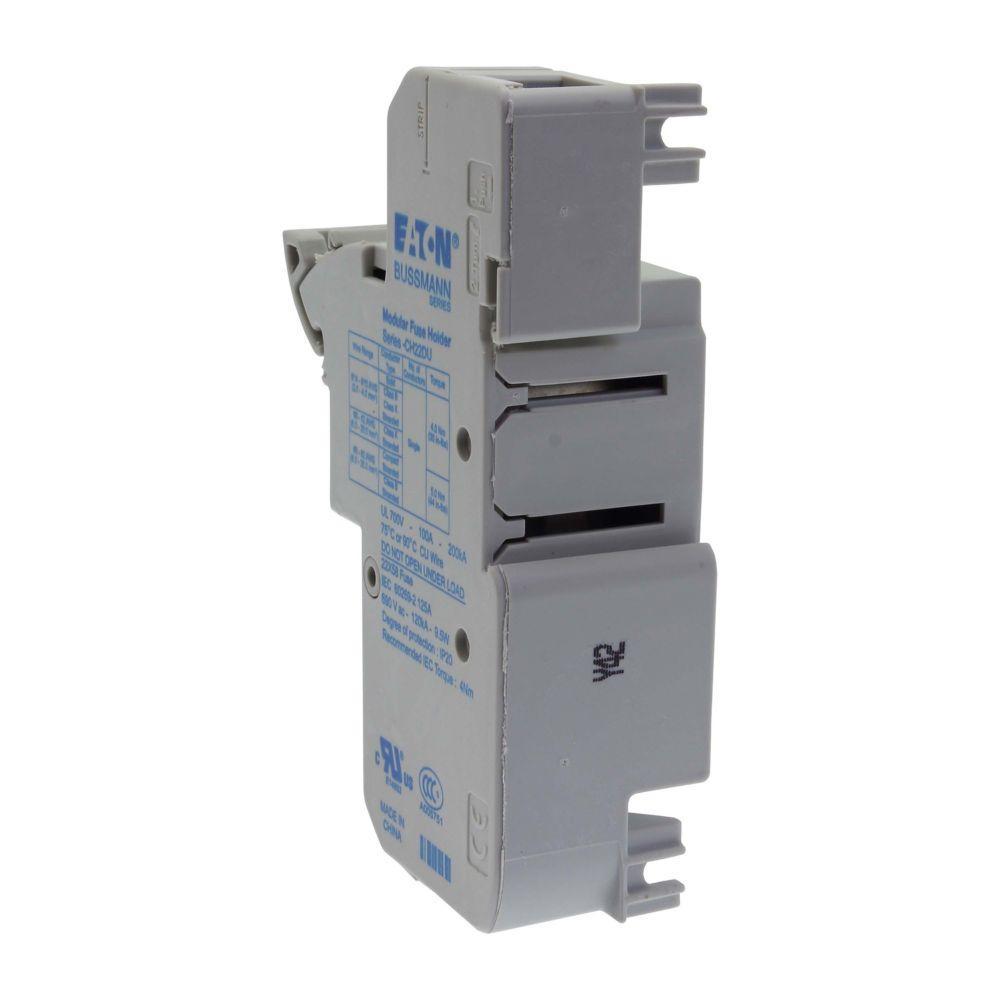

Bussmann Fuse Holder, Low Voltage Cylindrical, 690 VAC, 125 A, 1 Pole, DIN Rail Mounting, 58 mm Fuse Length, 22 mm Diameter Fuse, -20 to 70 deg C, For Use With: Standard Cylindrical Fuse-Links and FW Type Ferrule Fuse-Links, 36 mm L x 123 mm W x 102 mm H Dimensions
Additional Description: BUSS-CH221DU (N) 1P 22x58 Fuse Holder SINGLE POLE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series low voltage cylindrical fuse holder, 125 A, 690 V, Single-pole, DIN rail, 2 x M4 Panel mounting screws, CH22, 22 x 58 mm
CH221DU Application
Electrical Assemblies, Panels and EOEMs - Aftermarket, Panel Builders, Control Panels for Machines, Industrial Facilities and Factories - Power Distribution and ControlCH221DU Item Features
- Compact dimensions
- Ventilation zones optimized for a better heat dissipation
- Inbuilt padlocking facility
- IP20 degree of protection
- Toolless DIN rail mounting, improves ease of use and reduces installation time and costs
- https://www.youtube.com/watch?v=YMvqUyoETXk
CH221DU Standards
EAC ,IEC 60269-2 ,UL Listed File E14853 ,IEC 60269-1 ,IEC 60269-1 ,IEC 60269-2 ,UL Listed File E14853 ,EAC,RoHS Compliant,CE Marked,RoHS-konform,CE-KennzeichnungSKU #2432459Part Number #CH221DUUNSPSC39121606UPC00051712685375
Image provided may only be a representation of final product and may include optional equipment
