Part Number # A2190403
SKU # 2433518
Image Disclaimers Message
LUTZE A2190403 Key Features
| Brand: | LUTZE |
|---|---|
| Part Number # : | A2190403 |
| SKU #: | 2433518 |
| Dimensions: | 1.129 in OD |
| Series: | A219 |
| Specifications: | 2000 V Voltage Rating, -40 to 90 deg C Temperature Rating |
| Suitable For Use With: | Stationary Applications |
| Type: | Flexible Symmetrical Grounded |
| Country of origin: | US |
| Material: | XLPE/PVC |
| Manufacturer Name: | LUTZE Inc |
| UNSPSC: | 26121629 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

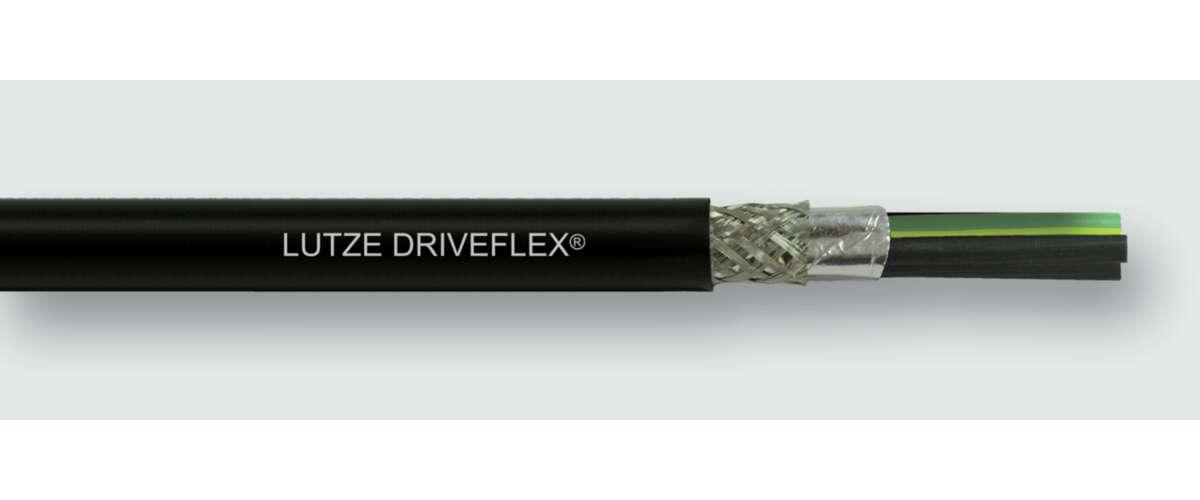

- Driveflex, A2190403, VFD Cable, Flexible Symmetrical Grounded, Series: A219, For Use With: Stationary Applications, Specifications: 2000 V Voltage Rating, -40 to 90 deg C Temperature Rating, XLPE/PVC, Black, 1.129 in OD Dimensions
A2190403 Application
For Dual-shielded motor supply cable to connect power to 3-phase-motors, VFDs and servo drives, Three insulated symmetrical ground design helps to reduce stray currents, 2kV cable design for the most demanding VFD applications, Cable design for harsh industrial environments and operating conditions with high noise levels, Thermoset XLPE insulation offering superior overload and short-circuit temperature, Increased wall thickness insulation type RHW-2, offering lower capacitance and higher impedance making it ideal for applications with high voltage spikes and long cable runs, TC-ER for use with cable trays without conduit, which can reduce installation costs in industrial environments, WTTC - wind turbine tray cable rating for use in wind power generation, Dry, damp or wet conditionsA2190403 Item Features
- Effective dual layer shield for EMC compliance
- TC-ER for use with cable trays without conduit, which can reduce installation costs in industrial environments
- Flame retardant
- Non-wicking fillers
- Flexible XLPE conductors
- WTTC - wind turbine tray cable rating for use in wind power generation
- High insulation resistance and low capacitance cable
- Sunlight resistant
- Crush impact restitant and direct burial
- Three insulated symmetrical ground design helps to reduce stray currents
- Dual-shielded motor supply cable to connect power to 3-phase motors, VFDs and servo drives
- Thermoset XLPE insulation offering superior overload and short-circuit temperature
- Cable design for harsh industrial environments and operating conditions with high noise levels
A2190403 Standards
cULus|WTTC|TC-ER|cUL TC|CIC FT4|NEC 336/392|Class I and II, Div. 2 and Class I|Zone 2 per NEC 501/502/505|UL 1277|UL 2277|Wet/Dry|P-07-KA130021-MSHASKU #2433518Part Number #A2190403UNSPSC26121629UPC
