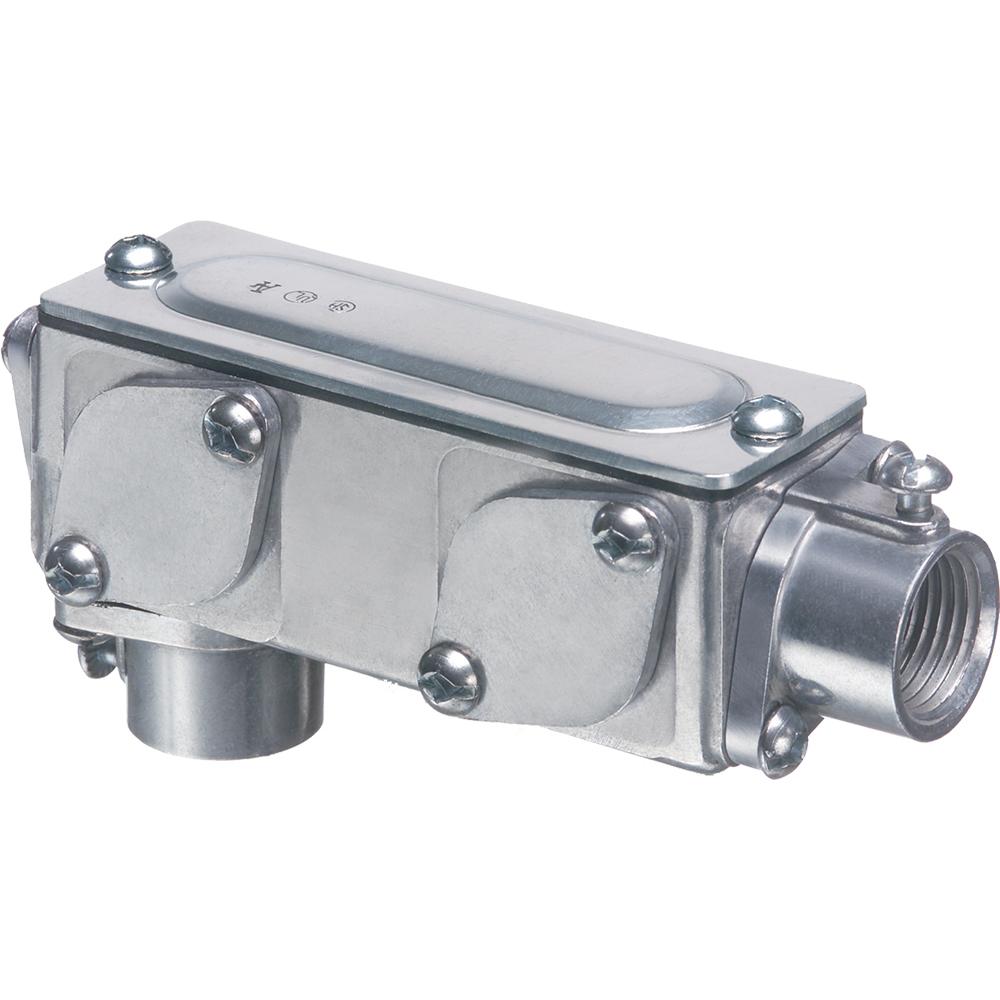

Arlington AnyBODY 936 5-in-1 Conduit Body With Cover, Gasket, LB Body, 2-1/2 in Hub, 175-1/2 cu-in Capacity, Copper Free Die Cast Aluminum
Part Number # 936
SKU # 2434223
936
Arlington AnyBODY 936 5-in-1 Conduit Body With Cover, Gasket, LB Body, 2-1/2 in Hub, 175-1/2 cu-in Capacity, Copper Free Die Cast Aluminum
Part Number # 936
SKU # 2434223
$223.08
Typical price:$334.62 /
936 Key Features
| Part Number # : | 936 |
|---|---|
| SKU #: | 2434223 |
| Body Type: | LB |
| Capacity: | 175-1/2 cu-in |
| Dimensions: | 13.9 in L x 5.97 in W x 4.8 in H |
| Hub Size: | 2-1/2 in |
| Type: | 5-in-1 |
| Connection type: | Thread |
| Country of origin: | CN |
| Material: | Copper Free Die Cast Aluminum |
| Manufacturer Name: | Arlington |
| UNSPSC: | 39131708 |
| UPC: | 018997179067 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$223.08
Typical price:$334.62 /
Quantity:
- Arlington AnyBODY Conduit Body, 5-in-1, LB Body, 2-1/2 in Hub, 175-1/2 cu-in Capacity, Thread Connection, Copper Free Die Cast Aluminum, Silver, 13.9 in L x 5.97 in W x 4.8 in H Dimensions
936 Application
For IMC, rigid and set screw EMT cable936 Includes
Threaded Flange936 Item Features
- Convenient and easy to use
- Saves the time, space and cost of stocking five different conduit bodies
- Volume and wire fill marked inside bodies
- Recessed O-rings under covers and flanges
- 1/2 to 2 in sizes are combination EMT rigid they are threaded for rigid, but also have a set screw for use with EMT
- Ships as an LB, but converts to a T, LL, LR or C
- http://www.youtube.com/v/BSuhWmG2Hzk
936 Standards
UL and CSA936 Warranty
1 yearSKU #2434223Part Number #936UNSPSC39131708UPC018997179067
Image provided may only be a representation of final product and may include optional equipment
