Part Number # AF16R-30-22-11
SKU # 2434987

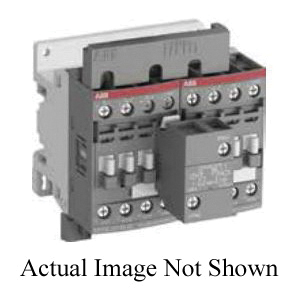

Image Disclaimers Message
AF16R-30-22-11
ABB AF16R-30-22-11
Part Number # AF16R-30-22-11
SKU # 2434987
$256.75 / Each
Typical price:$476.76 / Each
ABB AF16R-30-22-11 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF16R-30-22-11 |
| SKU #: | 2434987 |
| Coil Power Rating: | 7.5 kW, 10 hp, 15 hp |
| Coil Voltage: | 24 to 60 V AC, 20 to 60 V DC, 24 to 60 VAC, 20 to 60 VDC |
| Contact Configuration: | 3NO |
| Dimensions: | 1.77 in W x 3.03 in D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 2NO-2NC |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -40 to 70 deg C |
| Terminal Type: | Screw |
| Type: | AC/DC Operated Reversing |
| Connection type: | Cable Clamp |
| Country of origin: | FR |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523019744 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$256.75 / Each
Typical price:$476.76 / Each
Quantity:
- ABB IEC Contactor, AC/DC Operated Reversing, 24 to 60 V AC, 20 to 60 V DC Coil, 17.5 A Maximum Load Current, 7.5 kW, 10 hp, 15 hp Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, 2NO-2NC Auxiliary Contacts, Cable Clamp Connection, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 1.77 in W x 3.03 in D Dimensions
AF16R-30-22-11 Application
For directionally controlling 3-phase motor circuits up to 690 VACAF16R-30-22-11 Item Features
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- 7.5 kW at 3-phase 400 V IEC, 10 hp at 440 to 480 VAC, 15 hp at 550 to 600 VAC
- 17.5 A at 200 to 208 VAC 3-phase UL/CSA
AF16R-30-22-11 Standards
IEC 60947-1|IEC 60947-4-1|EN 60947-1|EN 60947-4-1|UL 60947-4-1|CSA 22.2 60947-4-1SKU #2434987Part Number #AF16R-30-22-11UNSPSC39121529UPC03471523019744
