Part Number # 2787-2147/000-030
SKU # 2435801
Brand: Wago
2787-2147/000-030
Wago 2787-2147/000-030
Part Number # 2787-2147/000-030
SKU # 2435801
$476.22 / Each
Wago 2787-2147/000-030 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2787-2147/000-030 |
| SKU #: | 2435801 |
| Frequency Rating: | 50 to 60 Hz |
| Input Voltage: | 264 V |
| Depth: | 5.118 in |
| Height: | 5.118 in |
| Mounting type: | 35 mm DIN Rail, DIN Rail |
| Output voltage: | 24 V DC, 24 VDC |
| Width: | 2.75 in |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04066966115307 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$476.22 / Each
Quantity:
Wago 2787-2147/000-030
Brand: Wago
Part Number: 2787-2147/000-030

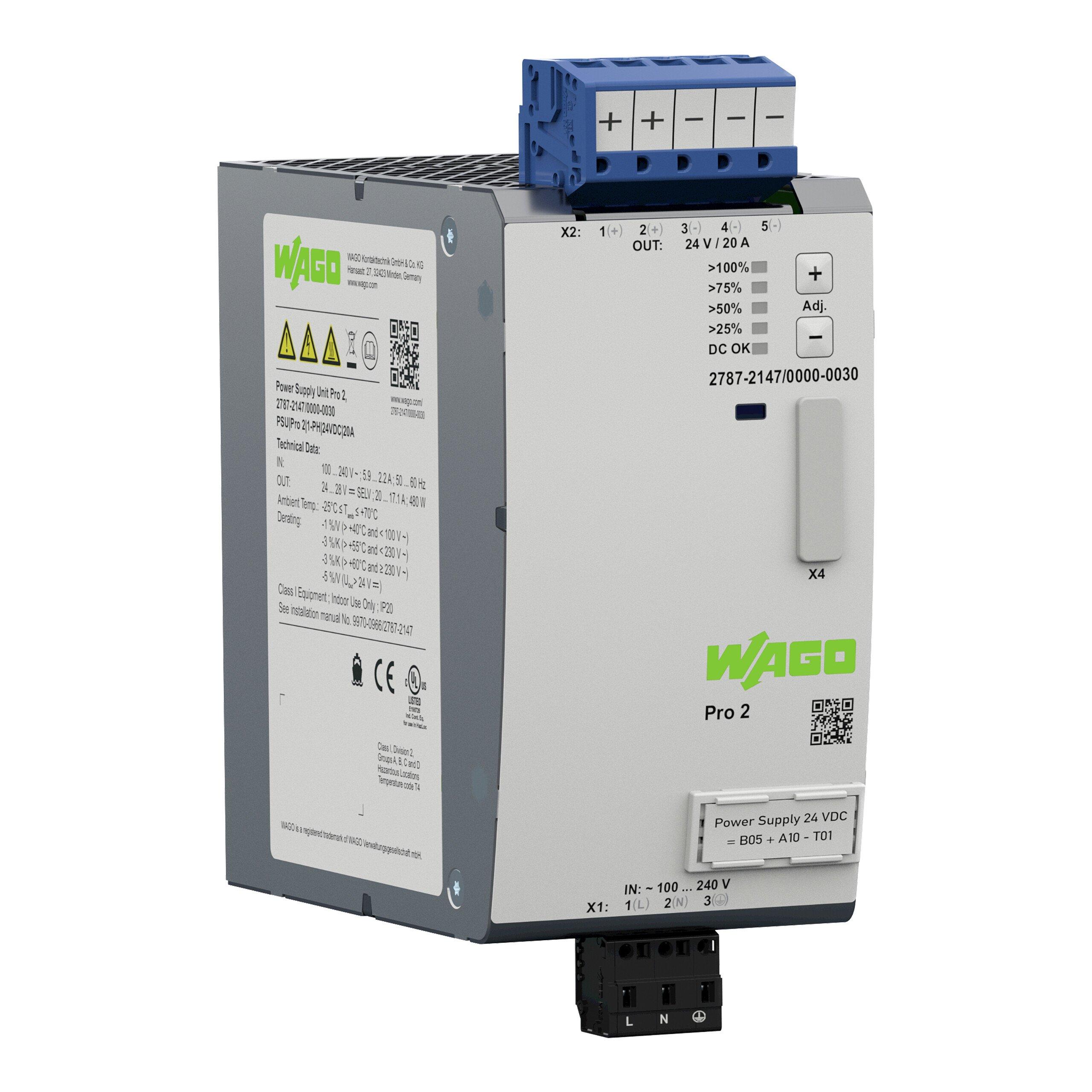

Additional Description: WAGO-2787-2147/000-030 PSU, PRO 2, 1-PHASE, 24 VDC OUTPUT VOLTAGE, 20 A OUTPUT CURRENT, DNV MARINE 60485539
Catalog Description: Power supply; Pro 2; 1-phase; 24 VDC output voltage; 20 A output current; TopBoost + PowerBoost; communication capability
2787-2147/000-030 Application
Suitable for both parallel and series operation2787-2147/000-030 Item Features
- Power supply with TopBoost, PowerBoost and configurable overload behavior
- Configurable digital signal input and output, optical status indication, function keys
- Communication interface for configuration and monitoring
- Optional connection to IO-Link, EtherNet/IP , Modbus TCP or Modbus RTU
- Natural convection cooling when horizontally mounted
- Electrically isolated output voltage (SELV/PELV)
- Marker slot for WAGO marking cards (WMB) and WAGO marking strips
2787-2147/000-030 Standards
SEMI F47|EN 61010-1|EN 61010-2-201|EN 61204-3|UL 61010-1|UL 61010-2-201|DNV|UL HazLoc|SEMI F47|EN 61010-1|EN 61010-2-201|EN 61204-3|UL 61010-1|UL 61010-2-201|DNV|UL HazLoc|RoHS Compliant|CE|IP20SKU #2435801Part Number #2787-2147/000-030UNSPSC39121421UPC04066966115307
Image provided may only be a representation of final product and may include optional equipment
