1828680000
Weidmuller 1828680000
Part Number # 1828680000
SKU # 2436043
Weidmuller 1828680000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1828680000 |
| SKU #: | 2436043 |
| UNSPSC: | 32151902 |
| UPC: | 04032248335329 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Weidmuller 1828680000
Brand: Weidmuller
Part Number: 1828680000

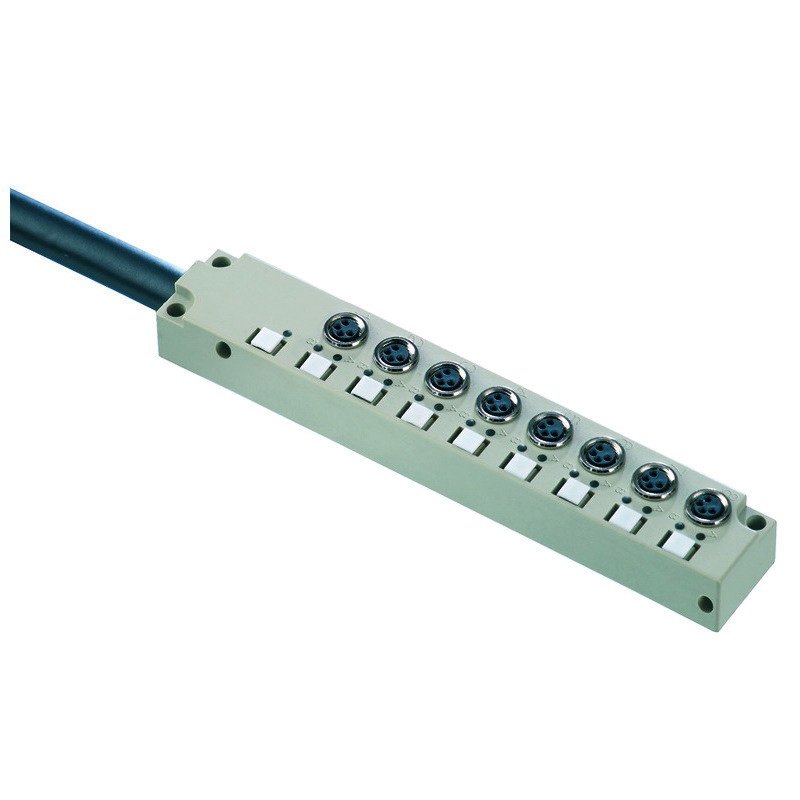

Weidmuller Passive Distributor, Sensor-Actuator, Series: SAI, 30 VAC, 6 A, 3 Poles, IP68, Fixed Cabling Type, Pocan, Gray, 18.2 mm Height
Additional Description: WEID-1828680000 SAI-08L-VPFC-3A-M08L-PNP-05U03 SENSOR-ACTUATOR PASSIVE DISTRIBUTOR (WITH CABLE), COMPLETE MODULE, FIXED CABLE VERSION, NUMBER OF CONTACT SOCKETS: 8, NUMBER OF POLES: 3, M8, 5 M, LED: YES
Catalog Description: Distributor for bundling several input signals on one central outgoing cable.
1828680000 Application
For cable carriers1828680000 Item Features
- 8 Sockets
- M8 connection thread
- 3 pollution severity
- 10^9 Ohm insulation resistance
- 1 kV test voltage
- 1 A current per signal
- 2 A maximum current-carrying capacity per slot
- CuZn, nickel-plated screw socket
- CuZn contact material
- Gold-plated contact surface
- PBT (UL 94 V0) contact carrier material
- 100 mm L stripping
- 5 m L cable
- LED initiator
- Green LED color for indicating operation
- Yellow LED color for I/O function
- Very narrow, short and flat M8 distributor
- The range is supplied with 4 to 12 M8 connection positions, 3 or 4 poles
- The M8 line is equipped with transverse holes
- -25 to 80 deg C operating temperature
1828680000 Standards
UL E92202|RoHS Compliant|cURus ListedSKU #2436043Part Number #1828680000UNSPSC32151902UPC04032248335329
Image provided may only be a representation of final product and may include optional equipment
