Part Number # PSR031UL0700Z
SKU # 2437202
Image Disclaimers Message
Brand: Littelfuse
PSR031UL0700Z

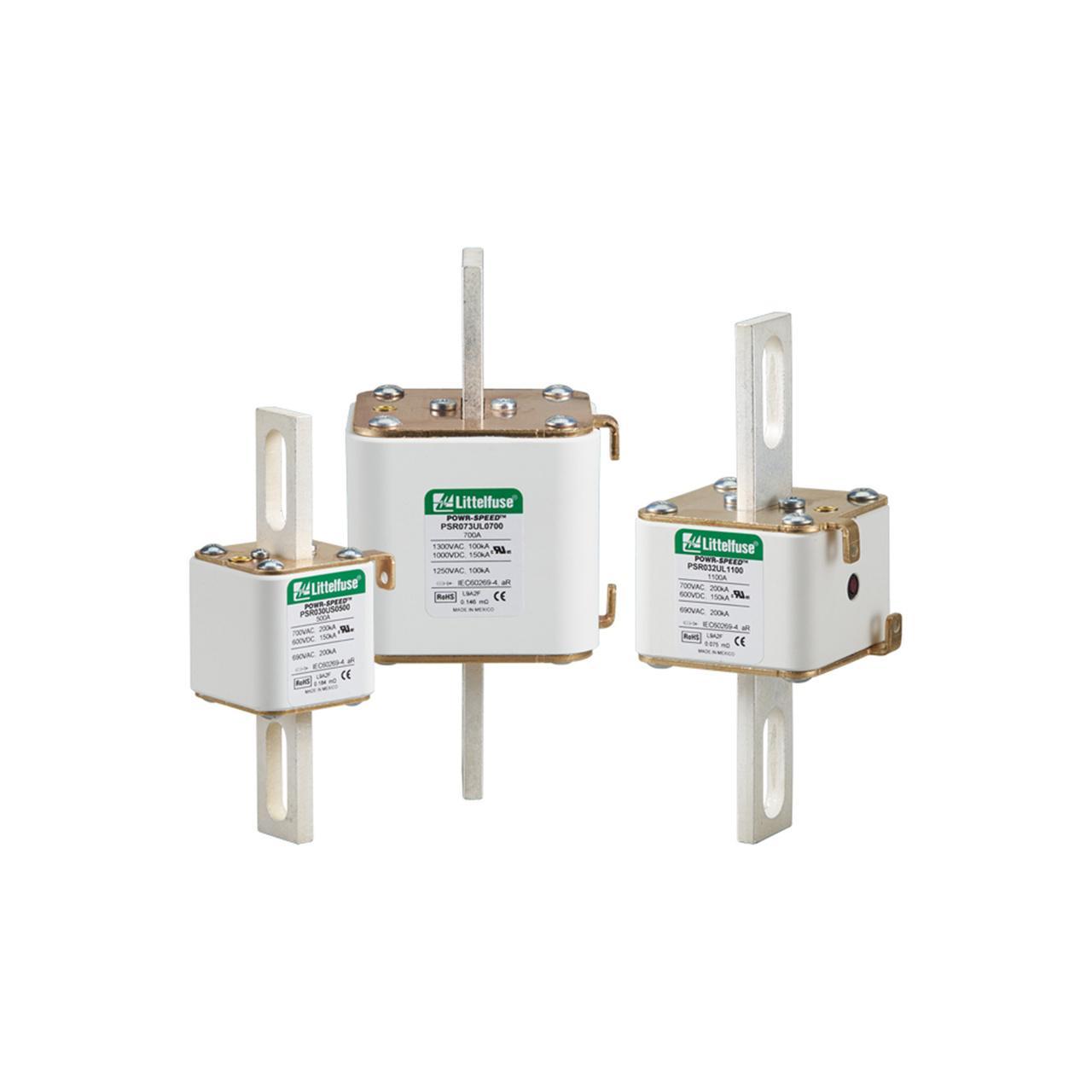

Littelfuse PSR031UL0700Z
Part Number # PSR031UL0700Z
SKU # 2437202
Littelfuse PSR031UL0700Z Key Features
| Brand: | Littelfuse |
|---|---|
| Part Number # : | PSR031UL0700Z |
| SKU #: | 2437202 |
| Amperage Rating: | 700 A |
| Body Type: | Square |
| Class: | Class AR |
| Indicating/Non-Indicating: | Indicating |
| Interrupt Rating: | 150/200 kA |
| Series: | PSR Series |
| Terminal Type: | Bolted Long Blade |
| Type: | High Speed Very Fast Acting |
| Country of origin: | MX |
| Material: | Ceramic |
| Mounting type: | Bolted |
| Manufacturer Name: | Littelfuse |
| UNSPSC: | 39121606 |
| UPC: | 00007945825270 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
- Littelfuse POWR-SPEED Semiconductor Fuse, High Speed Very Fast Acting, Series: PSR Series, Indicating, 700 A, 690/700 V AC/600 V DC, 150/200 kA Interrupt, Class: Class aR, Bolted Long Blade Terminal, Bolted Mounting, Square Body, Ceramic, 1.94 in L x 2.03 in W x 2.03 in H Body
PSR031UL0700Z Application
For power conversion devices (UPS, inverter, rectifiers, drives), DC systems (dc common bus, dc injection braking), battery protection application (energy storage systems), electric vehicle charging stations, heaters and power suppliesPSR031UL0700Z Item Features
- Best in class DC performance
- Extremely current limiting
- Superior cycling capability
- Visual and microswitch fuse blown indication
- Low watt loss design
- Class aR performance according to IEC 60269-4
- 200 kA at 690 VAC IEC, 700 VAC UL, 150 kA at 600 VDC interrupt rating
- https://players.brightcove.net/1799386164001/default_default/index.html?videoId=4814378601001
PSR031UL0700Z Standards
CE Certified|cULus File No. E71611 Recognized|IEC 60269-4|REACH Compliant|UL 248-13 File No. E71611 Recognized|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer.SKU #2437202Part Number #PSR031UL0700ZUNSPSC39121606UPC00007945825270
