Part Number # HBL4720CST
SKU # 2437236
Image Disclaimers Message
Brand: Hubbell
HBL4720CST
Hubbell HBL4720CST
Part Number # HBL4720CST
SKU # 2437236
$12.21 / Each
Typical price:$31.50 / Each
Hubbell HBL4720CST Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL4720CST |
| SKU #: | 2437236 |
| Amperage Rating: | 15 A |
| Cord Diameter: | 0.230 to 0.720 in |
| Dimensions: | 3.28 in H x 0.83 in W x 1.32 in D |
| Horsepower: | 0.5 hp |
| NEMA Rating: | L5-15P |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Series: | EdgeConnect |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Spring |
| Color: | Black/White |
| Country of origin: | CN |
| Material: | Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585719696 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$12.21 / Each
Typical price:$31.50 / Each
Quantity:

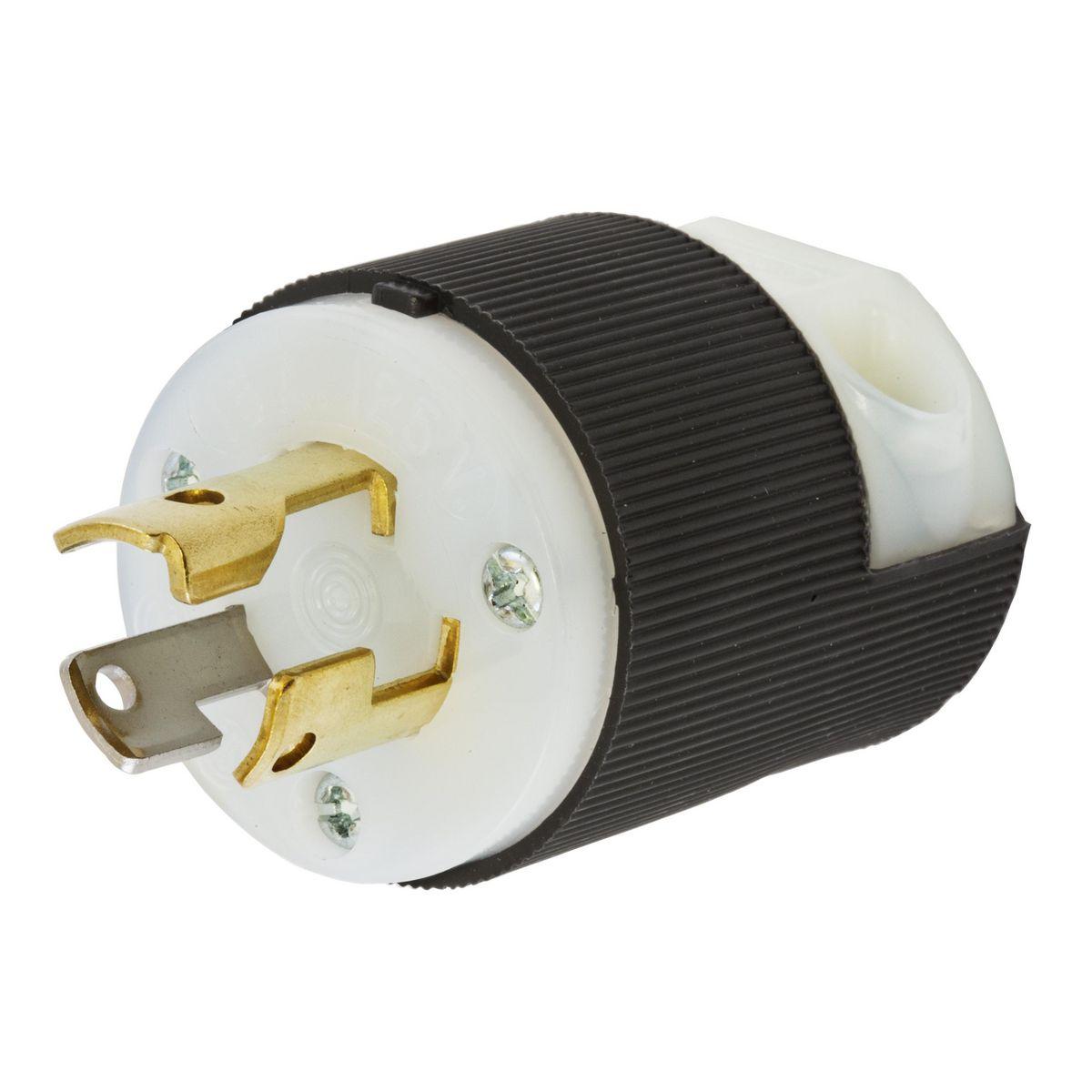

- Wiring Device-Kellems, HBL4720CST, Locking Device, Series: EdgeConnect, 125 V, 15 A, 0.5 hp, 2 Pole, 3 Wires, L5-15P NEMA Rating, Industrial/Commercial Grade, 0.230 to 0.720 in Diameter Cord, -40 to 75 deg C, Spring Terminal, Nylon, Black/White, 3.28 in H x 0.83 in W x 1.32 in D Dimensions
HBL4720CST Application
For Extra Heavy Duty Industrial/Commercial GradeHBL4720CST Item Features
- Ribbed housing is impact and chemical resistant
- Superior cord grip design protects terminations from excess strain
- Accepts 14 - 10AWG, solid or stranded
HBL4720CST Standards
RoHS Compliant|CSA Certified to C22.2 No. 42 File 280|Fed. Spec. W-C596G|NEMA WD-6 CompliantSKU #2437236Part Number #HBL4720CSTUNSPSC39121406UPC00783585719696
