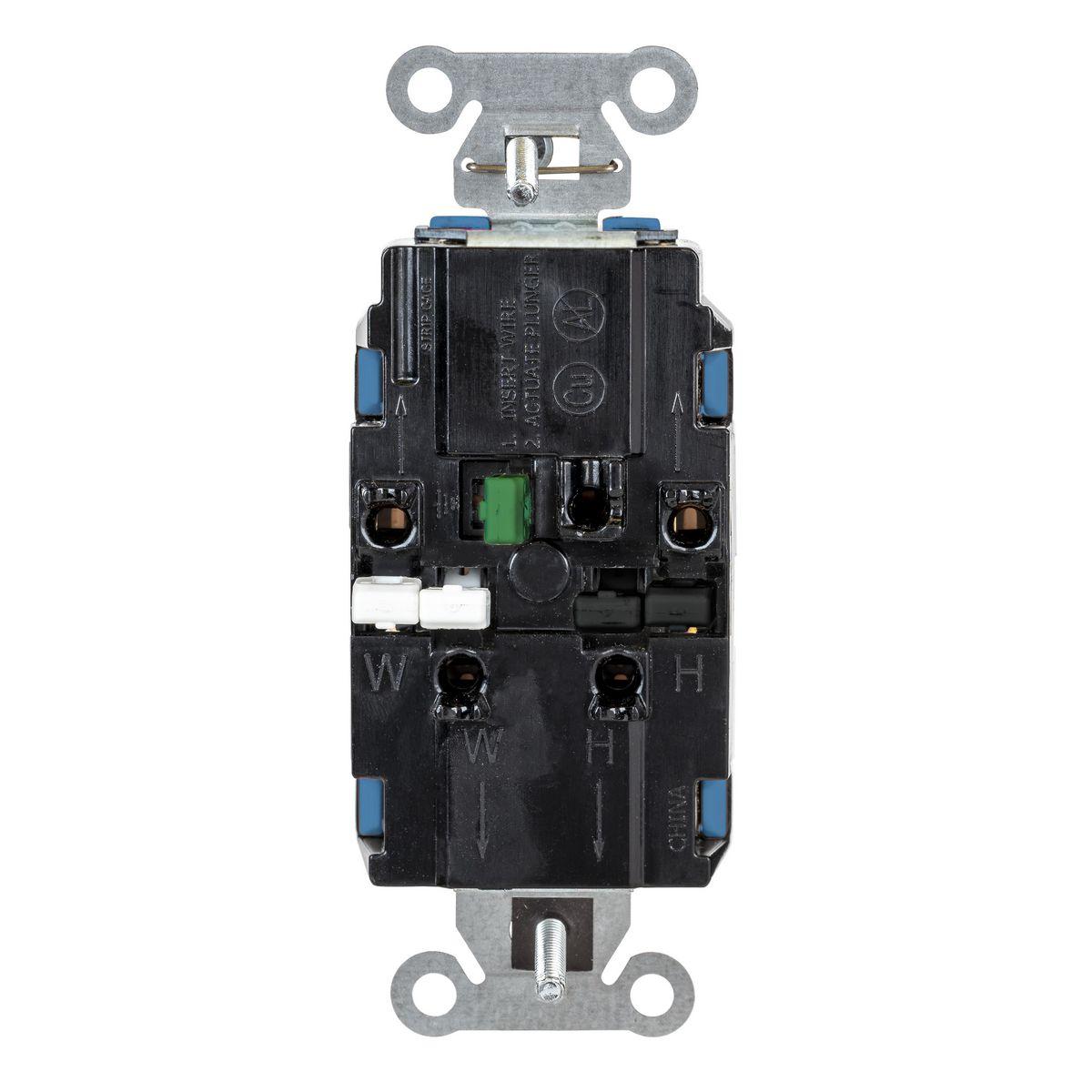

- Back wired srewless termination for faster termination time
- No need for screwdriver and torque wrench
- Spring Termination eliminates strand relaxation
- Triple and Double Wipe Contacts
- Easy access split circuit tab
Specifications
Brand: Hubbell
Amperage Rating: 20 A
NEMA Rating: 5-20R
Number of Poles: 2
Number of Wires: 3
Series: EdgeConnect
Temperature Rating (Degrees F): -40 to 75 deg C
Terminal Type: Screwless
Type: Straight Blade
Voltage Rating: 125 V
Color: Blue
Country of origin: CN
Material: Thermoplastic
Manufacturer Name: Hubbell
UNSPSC: 39121406
UPC: 00783585727271
Item FeaturesFor Hubbell-PRO application
Item Features
Item FeaturesUL Listed to UL498 File No. E2186 Certified to CSA 22.2|No. 42 File 285 Fed. Spec. W-C-596|NEMA WD-6 Compliant
