Part Number # HBL2182STBK
SKU # 2437443
Brand: Hubbell
HBL2182STBK
Hubbell HBL2182STBK
Part Number # HBL2182STBK
SKU # 2437443
$402.10 / 10Each
Typical price:$519.50 / Each
Hubbell HBL2182STBK Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL2182STBK |
| SKU #: | 2437443 |
| Amperage Rating: | 20 A |
| NEMA Rating: | 5-20R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Series: | EdgeConnect |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Screwless |
| Type: | Straight Blade |
| Country of origin: | CN |
| Material: | Thermoplastic |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585726069 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$402.10 / 10Each
Typical price:$519.50 / Each
Quantity:

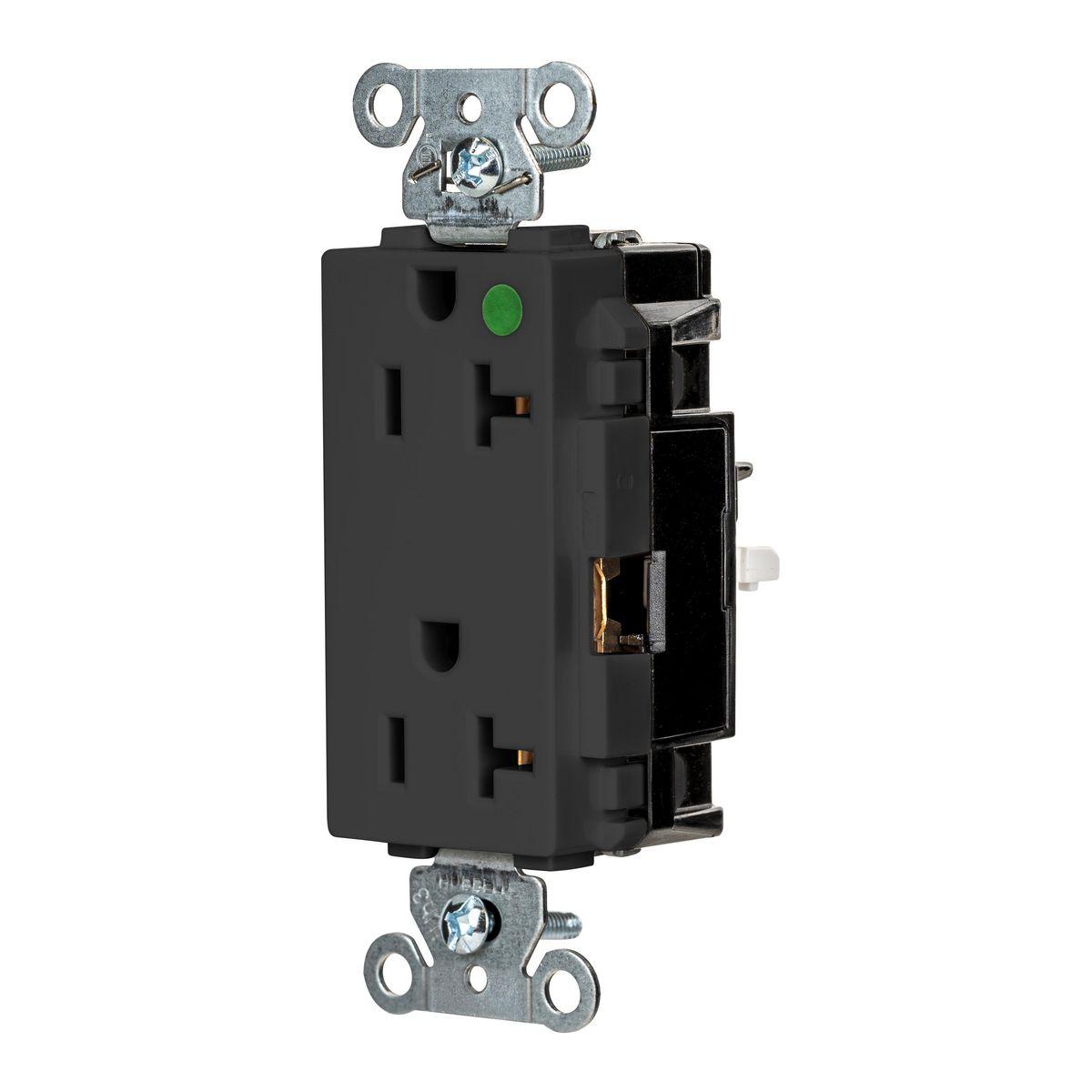

- Hubbell Wiring Device-Kellems, HBL2182STBK, Receptacle, Straight Blade, Series: EdgeConnect, 125 V, 20 A, 2 Pole, 3 Wires, 5-20R NEMA Rating, Hospital Grade, -40 to 75 deg C, Screwless Terminal, Thermoplastic, Black
HBL2182STBK Application
For Heavy Duty applicationHBL2182STBK Item Features
- Back wired srewless termination for faster termination time
- No need for screwdriver and torque wrench
- Spring Termination eliminates strand relaxation
- Triple and Double Wipe Contacts
- Easy access split circuit tab
HBL2182STBK Standards
UL Listed to UL498 File No. E2186 Certified to CSA 22.2|No. 42 File 285 Fed. Spec. W-C-596|NEMA WD-6 CompliantSKU #2437443Part Number #HBL2182STBKUNSPSC39121406UPC00783585726069
Image provided may only be a representation of final product and may include optional equipment
