Part Number # HBL8315CST
SKU # 2437463

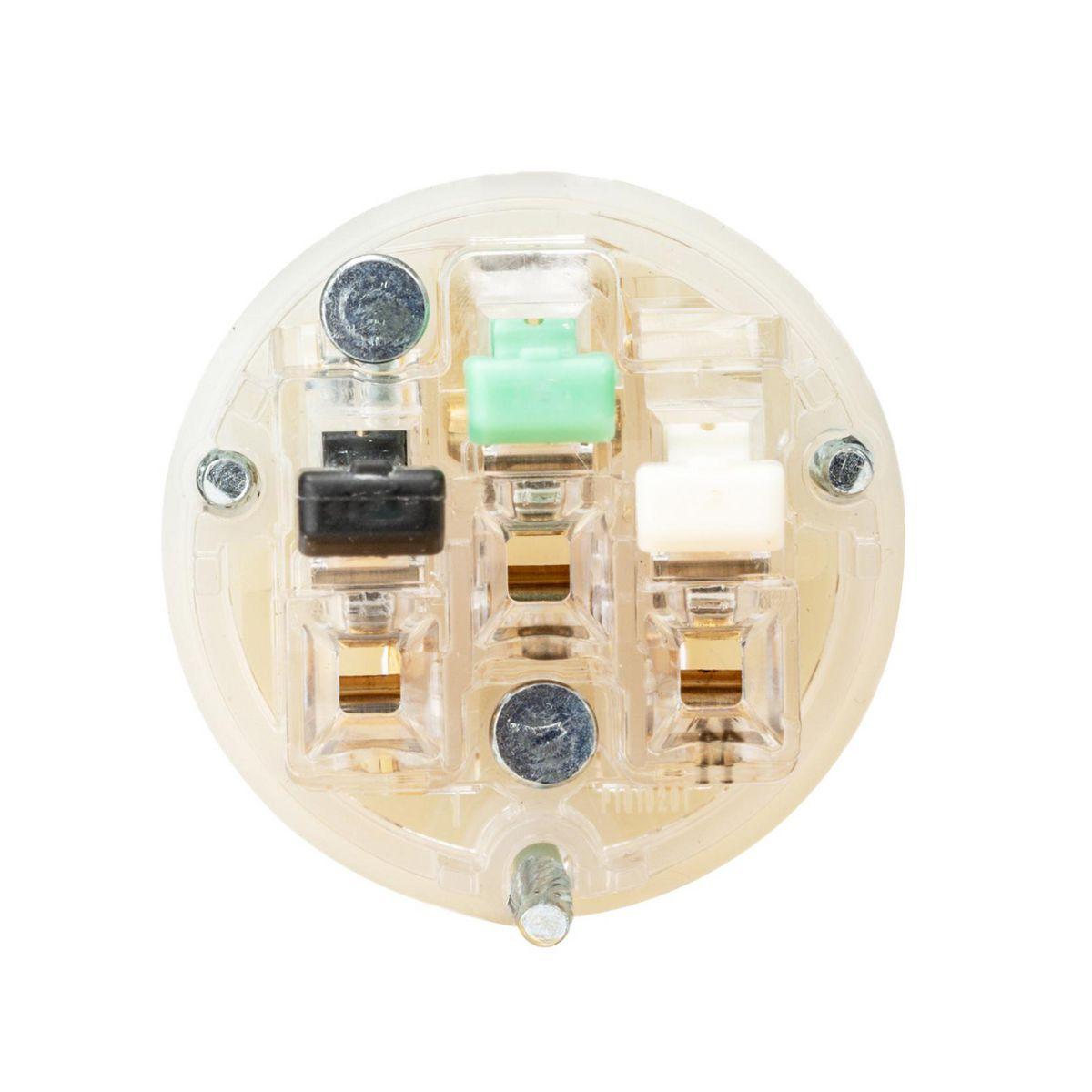

Image provided may only be a representation of
final product and may include optional equipment
HBL8315CST
Hubbell HBL8315CST
Part Number # HBL8315CST
SKU # 2437463
$15.00 / Each
Typical price:$45.90 / Each
Hubbell HBL8315CST Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL8315CST |
| SKU #: | 2437463 |
| Amperage Rating: | 20 A |
| Dimensions: | 3.28 in x 1.57 in x 1.15 in |
| Horsepower: | 1 hp |
| NEMA Rating: | NEMA 5-20P |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Series: | EdgeConnect |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Spring |
| Country of origin: | CN |
| Material: | Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121402 |
| UPC: | 00783585964898 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$15.00 / Each
Typical price:$45.90 / Each
Quantity:
- Wiring Device-Kellems, HBL8315CST, Straight Blade Device, Series: EdgeConnect, 125 V, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20P NEMA Rating, Hospital Grade, -40 to 75 deg C, Spring Terminal, Nylon, Black/White, 3.28 in x 1.57 in x 1.15 in Dimensions
HBL8315CST Application
For Hospital GradeHBL8315CST Item Features
- Ribbed housing is impact and chemical resistant
- Superior cord grip design protects terminations from excess strain
- Accepts 14 - 10AWG, solid or stranded
HBL8315CST Standards
RoHS Compliant|CSA Certified to C22.2 No. 42 File 280|Fed. Spec. W-C596G|NEMA WD-6 CompliantSKU #2437463Part Number #HBL8315CSTUNSPSC39121402UPC00783585964898
