Part Number # IG2320ST
SKU # 2437465
Image Disclaimers Message
IG2320ST

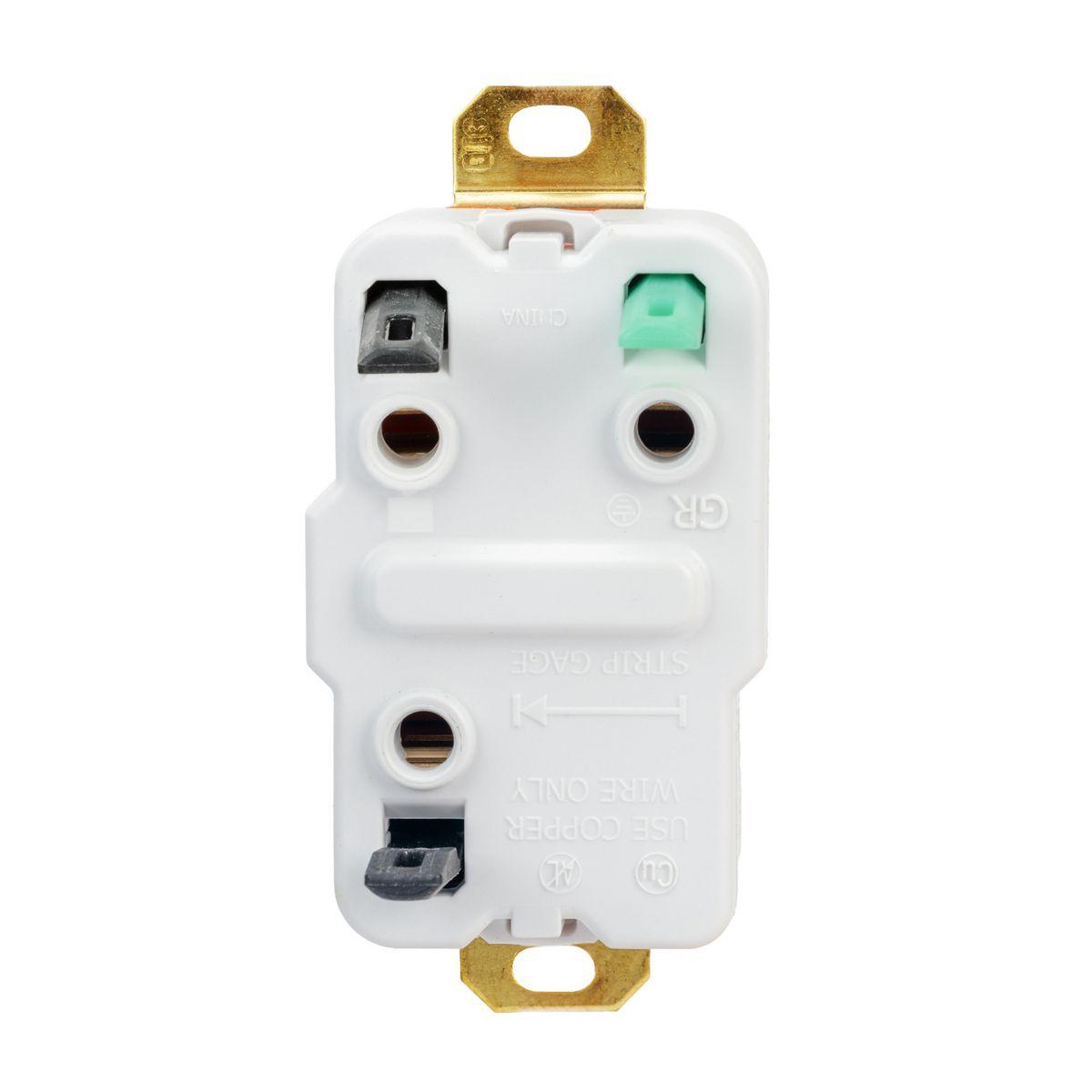

Hubbell IG2320ST
Part Number # IG2320ST
SKU # 2437465
$22.36 / Each
Typical price:$82.00 / Each
Hubbell IG2320ST Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | IG2320ST |
| SKU #: | 2437465 |
| Amperage Rating: | 20 A |
| Dimensions: | 1.24 in H x 1.7 in W x 3.28 in L |
| Horsepower: | 2 hp |
| NEMA Rating: | L6-20R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Series: | EdgeConnect |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Spring |
| Type: | Isolated Ground |
| Color: | Orange |
| Country of origin: | CN |
| Material: | Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | MISC |
| UPC: | 00783585730387 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$22.36 / Each
Typical price:$82.00 / Each
Quantity:
- Wiring Device-Kellems, IG2320ST, Locking Devices, Isolated Ground, Series: EdgeConnect, 250 V, 20 A, 2 hp, 2 Pole, 3 Wires, L6-20R NEMA Rating, -40 to 75 deg C, Spring Terminal, Nylon, Orange, 1.24 in H x 1.7 in W x 3.28 in L Dimensions
IG2320ST Application
For Heavy Duty IndustrialIG2320ST Item Features
- Spring termination greatly reduces the possibility of loosening the terminal connection with vibration and strand relaxation over time
- High-impact, abuse-resistant nylon face
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
IG2320ST Standards
RoHS Compliant|Listed to UL 498|Fed.Spec. W-C-596|Certified to CSA C22.2 No.42SKU #2437465Part Number #IG2320STUNSPSCMISCUPC00783585730387
